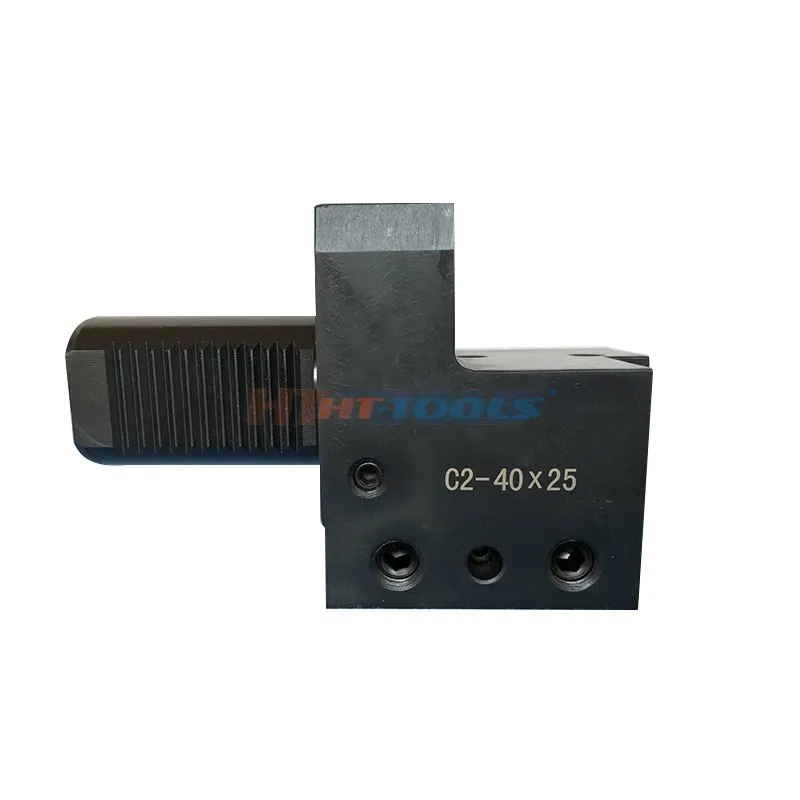

What is a VDI Tool Holder?

A VDI tool holder is a standardized tooling system widely used on CNC turning centers and lathes. Originating from a German engineering standard, these holders are valued for their repeatability, dependability, and user-friendliness, making them a key element in contemporary manufacturing. The system enables rapid, accurate tool swaps, which helps reduce downtime and boost overall machining throughput.

Understanding VDI Tool Holders

The VDI tool holder concept was created by the Association of German Engineers (Verein Deutscher Ingenieure) to provide a uniform interface for mounting tools on CNC lathes. Standardization makes tool holders interchangeable between different machines, offering shops greater flexibility and shorter setup times. VDI holders are produced in multiple sizes and configurations to cover a broad spectrum of machining tasks.

Components of a VDI Tool Holder

VDI tool holders are composed of several essential parts that together locate and secure the cutting tool precisely:

Shank
The shank is the part inserted into the machine turret or tool magazine. VDI shanks are cylindrical and manufactured to standardized diameters so they can be swapped easily across compatible machines and setups.

Clamping Mechanism
This mechanism locks the tool holder into the turret. Commonly, VDI holders use quick-release systems such as cam locks or wedge clamps, enabling fast tool changes without extra tools or adjustments.

Tool Mounting Interface
This is the area where the cutting insert or tool is attached. It’s engineered to deliver exact alignment and firm clamping, minimizing deflection or movement of the cutting edge during cutting.

Types of VDI Tool Holders

VDI holders come in several forms to suit different tool orientations and machining operations:

Axial Tool Holders
Designed for tools that cut along the workpiece axis, axial holders are commonly used for turning, boring, and drilling operations.

Radial Tool Holders
Radial holders mount tools that act perpendicular to the workpiece axis and are typically employed for milling, threading, and grooving tasks.

Driven (Live) Tool Holders
Also called live tools, these holders contain an internal drive so the cutting tool can rotate independently of the workpiece. They enable machining operations like milling or drilling directly on a CNC lathe.

Static Tool Holders
Static holders have no moving parts and are used to secure stationary cutting tools. They provide high rigidity and stability for operations such as turning and facing.

Advantages of VDI Tool Holders

VDI holders deliver several practical benefits that explain their widespread use:

Standardization
Because they follow established dimensions and tolerances, VDI holders are interchangeable across many machines, simplifying tooling inventories and reducing the need for custom holders.

Quick Tool Changes
Quick-release clamping designs allow rapid swaps, cutting downtime and improving throughput—especially important in shops with frequent tool changes or high-mix production.

Precision and Accuracy
VDI holders deliver accurate tool positioning and tight repeatability. Their rigid construction reduces tool deflection and runout, leading to more consistent part quality.

Versatility
Available in many styles and sizes, VDI holders can accommodate turning, milling, drilling, threading, and other operations, making them adaptable to varied machining needs.

Applications of VDI Tool Holders

VDI tool holders are applied across numerous industries and use cases to improve machining speed and precision:

Automotive
Used to produce engine parts, transmission components, and other precision automotive elements requiring strict tolerances.

Aerospace
Employed for machining critical aerospace parts such as turbine components, landing gear elements, and structural items where accuracy and reliability are essential.

Medical
Used to manufacture medical devices and implants that demand intricate features and tight dimensional control.

General Engineering
Common in general-purpose machining for producing a wide range of engineered components with consistent quality.

FAQs About VDI Tool Holders

Q: What does VDI stand for?
A: VDI stands for Verein Deutscher Ingenieure — the Association of German Engineers. The VDI tooling approach establishes a standardized interface for tool holders used on CNC lathes.

Q: How do VDI tool holders improve machining efficiency?
A: They speed up tool changes, reduce downtime, and provide precise alignment and secure clamping, which together yield consistent part quality and higher productivity.

Q: Can VDI tool holders be used with different types of cutting tools?
A: Yes. VDI holders accept a broad variety of cutting tools, including turning tools, milling cutters, drills, and threading tools, making them highly versatile.

Q: What sizes of VDI tool holders are available?
A: VDI holders come in a range of sizes, typically from VDI 20 up to VDI 60. Size refers to the shank diameter and must match the turret or tool magazine of the lathe. Choose the size that fits your machine and application.

Q: How do I maintain VDI tool holders?
A: Perform regular cleaning after use, inspect for wear or damage, keep clamping elements functioning properly, and store/handle holders carefully to prevent damage and extend service life.

Conclusion

VDI tool holders are a vital part of modern CNC turning, offering standardized, flexible, and efficient solutions for tool holding. Understanding their types, components, benefits, and applications helps manufacturers optimize machining processes and achieve high-quality results.
