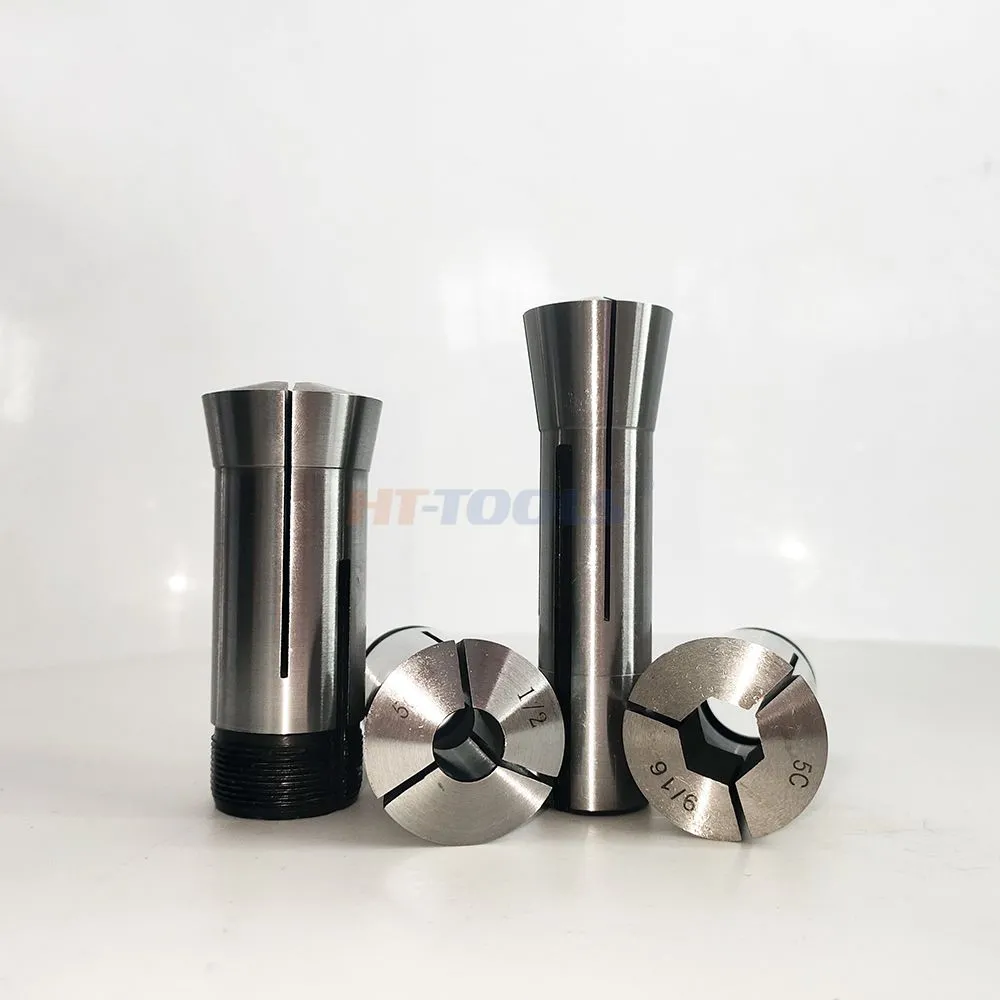

What Are 5C and 16C Collets: A Complete Guide to Two Classic Workholding Systems

The 5C and 16C collets are two of the most widely used American standard collet systems in the precision machining industry. They are designed to provide reliable, accurate, and repeatable workholding for cylindrical components. Both models operate based on the principle of elastic deformation, using spring tension to generate strong and uniform clamping force. Because of their high concentricity and stable performance, these collets are essential in turning, milling, and grinding operations that demand precision and efficiency.

5C and 16C Collet Chucks Overview

The 5C collet chucks and 16C collet chucks are designed to fit different machine sizes and spindle interfaces. Their clamping capacities are defined in inch measurements. The 5C collet can hold workpieces up to approximately 1.125 inches (28.5 mm) in diameter, while the 16C collet offers a larger capacity of about 1.625 inches (41.3 mm).

In terms of performance, the 5C chuck is commonly used for light-duty or medium machining operations. It is compact and provides excellent precision, but it is not ideal for heavy or high-torque cutting. The 16C chuck, on the other hand, is built for heavier machining loads and high-speed cutting, making it suitable for larger parts, higher rigidity requirements, and automated production lines.

For spindle compatibility, 5C collet chucks are generally matched with A2-4 or A2-5 spindle noses, while 16C collet chucks are compatible with A2-5 or A2-6 configurations, ensuring adaptability for a variety of CNC lathes and turning centers.

Construction and Working Principle of 5C and 16C Collets

Both types of collets are made from hardened spring steel, chosen for its combination of toughness, flexibility, and resistance to wear. The front portion of each collet includes several longitudinal slots—usually three to six—that allow for controlled radial expansion and contraction. The rear section of the collet has an external thread, while the outer surface is ground with a precise taper that fits perfectly into the collet chuck.

The working principle is based on axial movement and radial contraction. When the collet is inserted into the chuck and the drawbar pulls it backward, the taper of the collet engages with the inner taper of the chuck body. This motion compresses the collet, causing it to close tightly around the workpiece. When the drawbar is pushed forward, the collet releases, allowing quick part changes.

This design delivers high accuracy, excellent rigidity, and repeatable clamping force, making it ideal for mass production environments where both speed and consistency are critical.

Performance and Application Differences

The 5C collet system is known for its compact size, lightweight construction, and wide versatility. It typically handles parts between 1 mm and 26 mm in diameter and is frequently used for small components such as pins, bushings, and precision shafts. Its slim profile offers excellent tool clearance and reduces the risk of interference during machining.

The 16C collet system, with a capacity range of 3 mm to 40 mm, provides higher rigidity and greater holding strength. It is particularly well suited for medium-sized workpieces and for machining operations that involve deeper cuts or stronger cutting forces. Although it operates at slightly lower rotational speeds (around 5000 rpm) compared with the 5C (up to 6000 rpm), the 16C delivers outstanding stability and durability in continuous production.

Both systems are available in through-hole and blind-hole versions, offering flexibility depending on the length and geometry of the workpiece. Their runout accuracy is typically ≤ 0.01 mm, and high-precision models can reach ≤ 0.005 mm, ensuring superior machining accuracy even under demanding conditions.

Converting an A2-5 Spindle to a 5C Collet Chuck

An existing A2-5 spindle chuck can be converted into a 5C collet chuck using a draw-back clamping mechanism. In this setup, the collet is tightened when the drawtube is pulled back hydraulically and released when pushed forward.

The design of the 5C chuck features a slender front profile, providing ample tool clearance. This is especially advantageous in compact CNC setups or precision turning applications where space around the spindle nose is limited. The conversion process usually involves installing a custom adapter nut that matches the drawbar’s thread specification, ensuring a secure and precise connection with the machine’s hydraulic or pneumatic actuation system.

This configuration enables quick installation and efficient operation, allowing machinists to take advantage of 5C collet precision without major spindle modifications.

Choosing Between 5C and 16C Collets

Selecting the right collet system depends on the workpiece size, cutting load, and machining conditions.

The 5C collet is ideal for small parts, high-speed machining, and applications that require fast changeovers and high accuracy. It offers superior accessibility, lightweight operation, and wide compatibility with various fixtures and machine tools.

The 16C collet is better suited for larger workpieces, heavier cuts, and high-rigidity machining. Its stronger structure and greater clamping capacity make it the preferred choice for automated CNC lathes, bar feeders, and industrial production systems.

Both collet systems have proven themselves as reliable, durable, and precise solutions for modern machining environments. By understanding their structural differences and performance capabilities, manufacturers can choose the right collet to enhance machining accuracy, productivity, and overall process stability.
