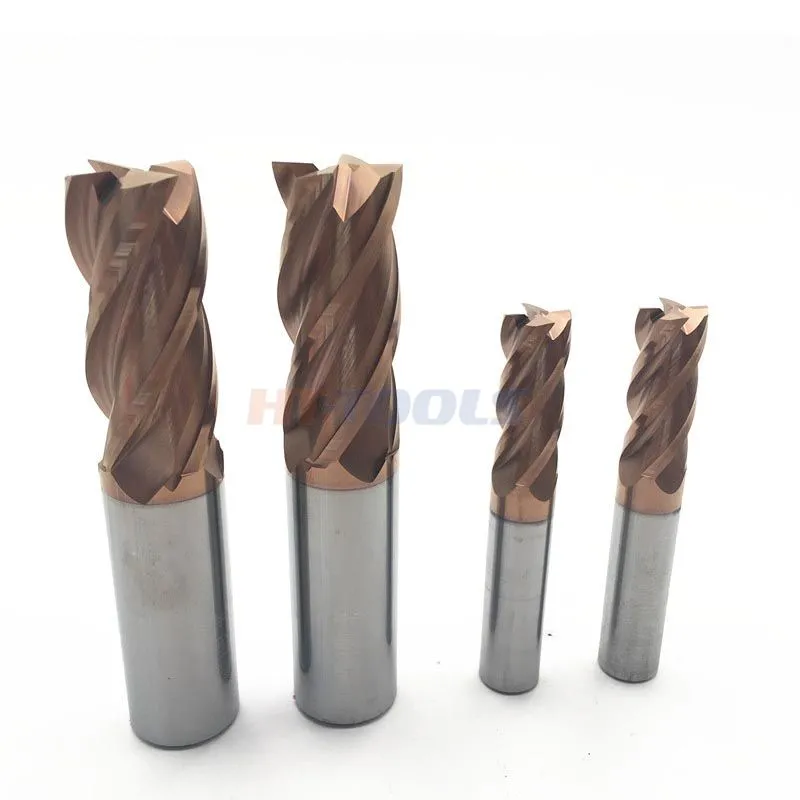

How CNC Machine Cutters Affect Surface Finish: A Practical Machining Guide

Surface finish is one of the most critical quality indicators in CNC machining. It directly influences part performance, dimensional accuracy, wear resistance, aesthetics, and downstream assembly. While machine rigidity, programming, and cutting parameters all matter, CNC machine cutters play a decisive role in determining surface finish quality.

Understanding how cutter type, geometry, material, and condition affect surface roughness allows manufacturers to optimize machining results, reduce secondary finishing, and lower production costs.

This article explains how CNC machine cutters influence surface finish, from cutting edge design to real-world machining strategies used in modern production.

Why Surface Finish Matters in CNC Machining

Surface finish is not only about appearance. In industrial applications, it affects:

Friction and wear between mating parts

Fatigue life and stress concentration

Corrosion resistance

Sealing performance

Fit and tolerance accuracy

Poor surface finish often leads to rework, rejection, or premature part failure, making cutter selection a strategic decision rather than a minor tooling choice.

The Relationship Between CNC Cutters and Surface Finish

During machining, the cutter removes material by shearing it along the cutting edge. The interaction between the cutter and the workpiece determines how smooth or rough the final surface becomes.

Key cutter-related factors that affect surface finish include:

Cutter material

Tool geometry

Number of flutes

Coating type

Tool wear and sharpness

Cutter runout

Each of these variables contributes directly to the micro-texture left on the machined surface.

Cutter Material and Its Impact on Surface Finish

Carbide Cutters

Solid carbide cutters are widely used because they maintain sharp cutting edges at high speeds. Their rigidity reduces vibration, resulting in cleaner cuts and smoother surface finishes, especially in hardened steels, stainless steel, and aluminum.

High-Speed Steel (HSS) Cutters

HSS cutters are tougher but less rigid than carbide. They are suitable for lower-speed operations, but at higher cutting speeds, edge wear increases quickly, often leading to poorer surface finish.

Ceramic and CBN Cutters

Advanced materials like ceramics and cubic boron nitride are used in hard turning and finishing operations. These cutters produce exceptionally fine surface finishes on hardened materials when conditions are stable.

Cutter Geometry: A Major Surface Finish Driver

Rake Angle

A positive rake angle allows smoother material flow and reduces cutting forces. This typically results in:

Less tearing of material

Reduced heat generation

Improved surface finish

Negative rake angles increase tool strength but often degrade surface quality.

Helix Angle

Cutters with a higher helix angle provide gradual engagement with the material, minimizing vibration and chatter. This leads to:

Smoother cutting action

Reduced tool marks

Better surface consistency

High-helix end mills are often preferred for finishing operations.

Edge Sharpness and Honing

Sharp cutting edges shear material cleanly, producing finer surface finishes. Excessive edge honing or worn edges cause rubbing instead of cutting, which:

Increases heat

Smears material

Degrades surface quality

For finishing passes, cutters with razor-sharp edges are essential.

Number of Flutes and Surface Quality

The number of flutes affects chip evacuation and surface smoothness.

Fewer flutes allow better chip clearance, reducing built-up edge

More flutes increase contact points, which can improve surface smoothness during finishing

For finishing operations, multi-flute cutters are often used with lighter cuts to achieve a refined surface texture.

Cutter Coatings and Surface Finish

Modern cutter coatings significantly influence surface finish by reducing friction and heat.

Common coatings include:

TiN for general machining

TiAlN for high-temperature applications

AlTiN for hard materials

DLC coatings for aluminum and non-ferrous metals

Proper coating selection helps prevent:

Built-up edge formation

Chip welding

Surface discoloration

This results in more consistent and predictable surface finishes.

Tool Wear and Its Effect on Surface Finish

As CNC cutters wear, surface finish degrades rapidly. Common signs include:

Increased roughness

Visible tool marks

Burr formation

Surface tearing

Even slight edge wear can dramatically affect finish quality, especially in finishing passes. Proactive tool monitoring and replacement schedules are essential for maintaining consistent surface standards.

Cutter Runout and Surface Finish Consistency

Tool runout occurs when the cutter does not rotate perfectly on center. This causes:

Uneven cutting load on flutes

Irregular surface patterns

Accelerated tool wear

High-precision tool holders and balanced cutters are critical for achieving uniform surface finishes, especially in high-speed CNC machining.

Finishing vs Roughing Cutters

Using the correct cutter for each machining stage is essential.

Roughing cutters are designed for aggressive material removal and will naturally produce rougher surfaces.
Finishing cutters are optimized for light cuts, high precision, and smooth surfaces.

Attempting to achieve final surface quality with roughing tools often leads to inconsistent results and higher rework rates.

Practical Tips to Improve Surface Finish Through Cutter Selection

Use carbide or advanced materials for finishing

Choose high-helix, sharp-edge cutters

Match flute count to material and operation

Select coatings suited to the workpiece material

Replace cutters before visible surface degradation appears

Minimize runout with quality tool holders

These best practices significantly reduce secondary finishing operations such as polishing or grinding.

CNC Cutters and Surface Finish in Industrial Production

In high-volume manufacturing, surface finish consistency is just as important as dimensional accuracy. Selecting the right CNC cutters helps manufacturers:

Meet strict customer specifications

Reduce scrap rates

Improve tool life efficiency

Lower overall production costs

For aerospace, automotive, medical, and precision engineering industries, cutter selection directly impacts product reliability and brand reputation.

Conclusion

CNC machine cutters are one of the most influential factors affecting surface finish. From cutter material and geometry to coating and wear condition, every detail contributes to the final surface quality.
