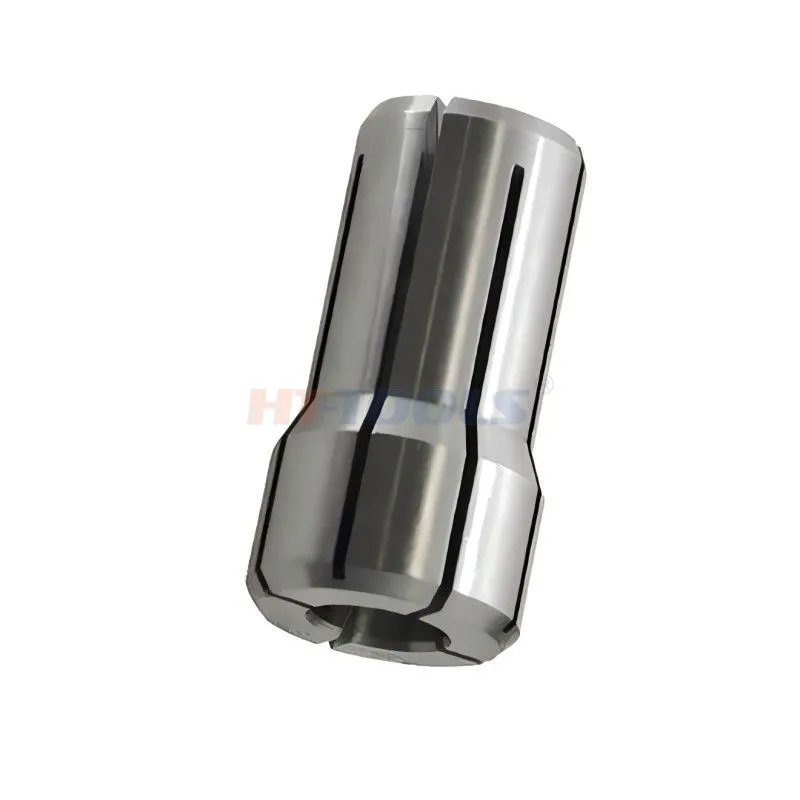

DA Collet Chuck: Precision Workholding Solution for Modern CNC Machining

The DA Collet Chuck, short for Double Angle Collet Chuck, is one of the most widely used toolholding systems in precision machining. It is designed to provide reliable clamping, high concentricity, and easy tool changes in CNC milling, drilling, and tapping operations. Known for its compact structure and stable performance, the DA collet chuck ensures secure tool grip and excellent repeatability, making it an essential component in high-precision manufacturing.

What Is a DA Collet Chuck?

A DA Collet Chuck is a toolholding device that uses a double-angle collet to clamp cutting tools such as drills, end mills, reamers, and taps. The "DA" series typically includes several models like DA100, DA180, DA200, and DA300, each offering different clamping capacities and suitable for specific machine spindle interfaces.

The name “double angle” refers to the collet’s two taper surfaces—one on the inside and one on the outside. This unique geometry provides a self-centering effect that enhances clamping accuracy and reduces runout. The chuck body and collet work together to produce a strong, uniform radial clamping force, ensuring the tool remains stable even at high spindle speeds.

Structure and Working Principle

The DA collet chuck is composed of three main components: the chuck body, the collet, and the collet nut. The collet sits inside the chuck body and is compressed by tightening the nut. As the nut is tightened, the collet’s double-taper surface engages both the inner taper of the chuck and the tool shank, generating axial and radial compression. This results in a firm, vibration-free grip.

During machining, this design helps maintain excellent concentricity, typically within 0.01 mm, ensuring that the cutting tool runs true to the spindle axis. The smooth engagement between the tapers also minimizes wear and makes tool changes fast and convenient — an advantage in high-volume production.

Key Features and Advantages

The DA collet chuck system is valued for its versatility and cost-effectiveness. Its primary features include:

High Precision and Repeatability – The double-angle design ensures consistent tool alignment, providing superior runout control and repeatable clamping accuracy.

Strong Clamping Force – Delivers reliable grip for medium-duty machining operations, preventing tool slippage during cutting.

Quick Tool Change – Simplified nut design allows for fast loading and unloading of cutting tools, improving productivity in multi-operation setups.

Wide Range of Sizes – Available in multiple standard models (DA100, DA180, DA200, etc.), each supporting a specific tool diameter range.

Compatibility – Works seamlessly with various spindle tapers such as BT, CAT, ISO, HSK, and DIN, making it suitable for both manual and automatic CNC machines.

Durable Construction – Made from hardened alloy steel with precision grinding and surface treatment, ensuring long life and excellent rigidity under heavy loads.

Common Applications of DA Collet Chucks

DA collet chucks are extensively used across industries that demand precision and speed. Some typical applications include:

CNC milling centers – For holding end mills, drills, and reamers in high-speed machining operations.

Drilling and tapping machines – For accurate alignment of taps and drills, improving hole quality and thread accuracy.

Toolroom and maintenance workshops – For general-purpose machining where frequent tool changes are required.

Mold and die manufacturing – For holding small cutting tools used in detailed contouring and finishing processes.

Automotive and aerospace components – For machining parts requiring precise tolerances and smooth surface finishes.

The DA collet chuck’s versatility makes it an ideal choice for both high-mix low-volume production and automated CNC environments.

Different Types and Size Options

The DA collet system comes in several standard series, including DA100, DA180, DA200, and DA300. Each type supports different tool diameters and applications:

DA100 Collet Chuck – For small-diameter tools, ideal for precision drilling and engraving.

DA180 Collet Chuck – A balanced option for medium-sized tools, commonly used in milling operations.

DA200 and DA300 Collet Chucks – Designed for larger tool diameters and heavier cutting loads.

All DA collets share the same double-angle concept but differ in taper dimensions, clamping ranges, and nut configurations. Manufacturers can also provide balanced collet chucks for high-speed spindles to reduce vibration and improve machining surface quality.

Advantages in CNC Machining Performance

When used correctly, the DA collet chuck offers multiple performance benefits that directly impact machining efficiency and accuracy:

Improved Tool Life – Uniform clamping reduces runout and tool vibration, extending tool life.

Better Surface Finish – Enhanced stability ensures smoother cutting and reduced chatter.

Energy Efficiency – Precise clamping reduces spindle load and energy consumption.

High-Speed Capability – Suitable for spindles operating up to 20,000 rpm when properly balanced.

Reduced Setup Time – Quick tool change mechanism supports lean manufacturing and shorter cycle times.

These advantages make DA collet chucks an indispensable toolholding solution for both traditional machining and modern CNC production lines.

Maintenance and Best Practices

To maintain the performance of a DA collet chuck, regular cleaning and inspection are essential. Users should ensure that:

The taper surfaces of the collet and chuck body are free from chips and oil residues.

The collet nut is tightened to the recommended torque to prevent deformation.

Collets are replaced when worn or cracked to maintain accuracy and prevent tool slippage.

A light coating of rust-preventive oil is applied after use to prolong toolholder life.

Proper maintenance ensures consistent clamping force, longer service life, and stable machining accuracy over time.

Conclusion

The DA Collet Chuck stands as one of the most reliable and efficient toolholding systems in the precision machining industry. Its double-angle design, strong clamping force, and quick-change capability make it a versatile choice for both high-speed and high-precision applications. Whether used in small workshops or large-scale CNC production facilities, the DA collet chuck provides the stability and accuracy that modern manufacturing demands.

By choosing the right DA collet size and maintaining proper setup practices, manufacturers can achieve higher productivity, better surface quality, and extended tool life — key advantages in today’s competitive machining environment.
