How to Select CNC Tool Holders for Hard Materials

Machining hardened steel, tool steel, titanium alloys and heat-resistant superalloys places considerably higher demands on a CNC toolholding system than general machining.

These materials can produce high cutting forces, concentrated heat, abrasive wear and unstable chip formation. Heat-resistant superalloys, for example, retain significant strength at elevated temperatures and can generate high, dynamic cutting loads during machining.

Under these conditions, selecting the cutting tool alone is not enough. The CNC tool holder must provide sufficient rigidity, gripping force, runout accuracy and vibration resistance to keep the cutting edge stable.

An unsuitable holder can result in:

• Cutting-tool pullout

• Chatter and vibration

• Premature insert or end-mill failure

• Poor surface finish

• Dimensional variation

• Reduced machining efficiency

• Excessive spindle load

• Damage to expensive workpieces

This guide explains how manufacturers and machining companies can select CNC tool holders for hard materials based on the application, tool size, machine interface and required machining performance.

What Makes Hard Materials Difficult to Machine?

“Hard materials” can refer to several different material groups, including:

• Hardened steels

• Tool and die steels

• High-chromium steels

• Hardened cast iron

• Titanium alloys

• Nickel-based superalloys

• Cobalt-based alloys

• Abrasive composite materials

Not all difficult-to-machine materials are extremely hard in the conventional sense.

Titanium and nickel-based alloys, for example, may be difficult to machine because of their strength, thermal behavior, work-hardening tendency and ability to maintain mechanical strength at high temperatures.

These characteristics can create:

• High radial and axial cutting forces

• Heat concentration near the cutting edge

• Irregular or segmented chip formation

• Rapid tool wear

• Greater risk of chatter

• Tool deflection

• Pullout during aggressive milling

Stable toolholding is therefore essential for predictable machining performance. Sandvik Coromant also emphasizes that stable toolholding contributes directly to predictable and efficient metal cutting.

Key Requirements for Tool Holders Used on Hard Materials

High Rigidity

Rigidity is one of the most important selection criteria when machining hard materials.

A rigid holder resists bending under radial cutting loads and helps maintain the programmed position of the cutting edge. This is particularly important during:

• Heavy shoulder milling

• Slot milling

• High-feed milling

• Roughing hardened steel

• Deep-pocket machining

• Long-reach machining

• Interrupted cutting

A holder with insufficient rigidity may allow the cutting tool to deflect. Even small amounts of deflection can change chip thickness, overload individual cutting edges and generate regenerative chatter.

Rigidity is influenced by:

• Holder body diameter

• Holder length

• Clamping mechanism

• Spindle interface

• Tool-shank diameter

• Tool projection

• Taper and flange contact

• Condition of the spindle taper

Mechanical milling chucks generally provide high gripping strength, significant holder mass and strong resistance to bending, making them suitable for demanding milling applications.

However, a larger holder body may create interference problems in deep cavities or complex five-axis components. The most rigid holder is therefore not always the most practical holder.

Strong Gripping Force

Hard-material roughing generates forces that can gradually pull an end mill out of the holder.

Tool pullout changes the axial cutting depth and may cause:

• Scrapped components

• Broken cutting tools

• Damaged fixtures

• Spindle overload

• Machine collisions

• Unplanned downtime

Gripping force is especially important when using:

• High-helix end mills

• Large axial cutting depths

• Aggressive ramping operations

• Full-width slotting

• High-feed strategies

• Long cutting tools

• Large-diameter solid-carbide end mills

Mechanical milling chucks typically provide greater gripping force than standard collet chucks. Hydraulic and shrink-fit holders offer moderate gripping strength, while their main advantages are generally accuracy, accessibility and vibration control.

For high-value components or aggressive cutting conditions, a mechanical pullout-prevention system may be appropriate. Some systems combine concentric clamping with mechanical locking to prevent Weldon-shank tools from moving axially.

Low Runout

Runout is the deviation between the cutting tool’s actual rotational path and the spindle centerline.

Excessive runout causes one cutting edge to remove more material than the others. This uneven load distribution can accelerate wear and cause premature tool chipping.

Low runout is especially important for:

• Small-diameter end mills

• Carbide drills

• Reamers

• Finish milling

• Hard milling

• Graphite electrode machining

• Precision mold manufacturing

• Expensive coated cutting tools

Hydraulic tool holders can provide runout and repeatability below 0.003 mm in properly matched systems while also offering vibration damping.

However, buyers should determine whether the published runout value refers to:

• The empty holder

• A test bar installed in the holder

• The holder nose

• A specified distance from the holder

• The complete tool assembly

A runout specification measured at the holder face cannot be directly compared with one measured at three or four times the tool diameter.

Vibration Damping

Hard-material machining often produces fluctuating cutting forces. The holder must help prevent these forces from developing into chatter.

Hydraulic tool holders are frequently selected for finishing operations because the internal hydraulic clamping mechanism can absorb and damp vibration. This can support:

• More consistent surface finish

• Lower cutting-edge load variation

• Improved tool life

• Reduced machining noise

• Greater process stability

Hydraulic expansion holders are particularly suitable for precision milling, drilling, reaming and finishing where repeatability and vibration control are more important than maximum gripping force. SCHUNK specifies both vibration-damping capability and runout below 0.003 mm for its hydraulic expansion holder systems.

For heavy roughing, however, damping must be balanced against the need for high torque transmission and pullout resistance.

Minimum Tool Projection

Tool projection is the distance from the holder face to the cutting edge.

As tool projection increases, the complete assembly becomes less rigid. This increases the risk of:

• Tool deflection

• Chatter

• Tapered walls

• Dimensional errors

• Cutting-edge chipping

• Reduced allowable feed

• Poor surface quality

When machining hard materials, use the shortest possible holder and cutting-tool combination that still provides sufficient access to the component.

The relationship is straightforward:

• Shorter projection provides greater rigidity.

• Longer projection provides better accessibility.

• Greater accessibility normally requires reduced cutting parameters.

Tool-shank insertion depth is also important. The shank must extend through the holder’s effective clamping area. Insufficient insertion can damage the holder bore and reduce clamping security.

Comparing CNC Tool Holder Types

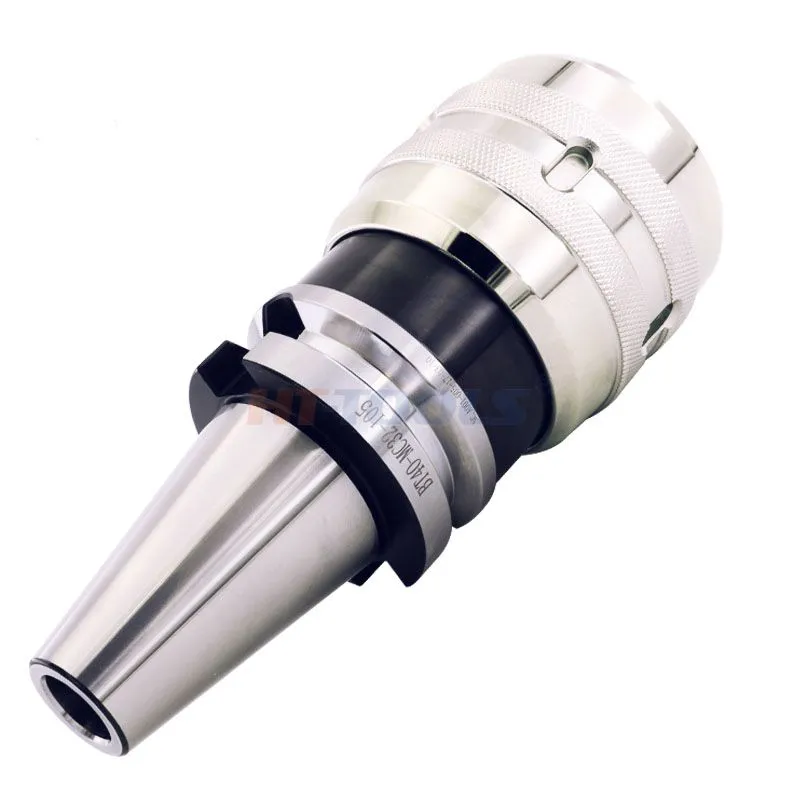

Mechanical Milling Chucks

Mechanical milling chucks are commonly selected for heavy roughing and high-torque cutting.

Their main advantages include:

• High gripping force

• Strong torque transmission

• High radial rigidity

• Good resistance to bending

• Suitability for large end mills

• Reliable performance under heavy cutting loads

They are suitable for:

• Rough milling hardened steel

• Heavy shoulder milling

• Slotting

• High-feed milling

• Machining large steel components

• Difficult interrupted cuts

Their limitations include:

• Larger external diameter

• Possible interference in deep cavities

• Greater rotating mass

• More demanding maintenance

• Limited suitability for very small tools

A milling chuck is usually a strong option when holding power and rigidity are more important than a slim holder profile.

For aggressive milling, a non-pullout mechanical system may provide additional process security. Some designs combine a heavy-duty milling chuck structure with mechanical protection against axial tool movement.

Shrink-Fit Tool Holders

Shrink-fit holders use controlled heating to expand the holder bore. The cutting tool is inserted while the bore is expanded, and the holder contracts around the shank as it cools.

Their main advantages include:

• Symmetrical holder design

• Slim external profile

• Good balance characteristics

• High runout accuracy

• Strong radial clamping

• Good accessibility

• Few moving components

Shrink-fit holders are suitable for:

• Hard milling

• Mold and die machining

• Five-axis machining

• Deep-cavity finishing

• High-speed machining

• Small- and medium-diameter carbide tools

• Applications requiring low interference

The 360-degree contact around the cutting-tool shank contributes to uniform clamping.

However, shrink-fit systems require dedicated heating and cooling equipment. Shops must also control heating cycles to avoid overheating the holder or reducing its service life.

Shrink-fit holders are especially useful when the machining application requires a combination of rigidity, precision and a slim nose profile.

Hydraulic Tool Holders

Hydraulic holders clamp the cutting tool by pressurizing an internal hydraulic chamber.

Their primary advantages include:

• Excellent vibration damping

• Low runout

• High repeatability

• Fast tool changes

• Simple operation

• Consistent clamping

• Good surface-finish performance

They are particularly suitable for:

• Finish milling hardened steel

• Reaming

• Precision drilling

• Finish boring

• Machining thin walls

• Operations sensitive to chatter

• Applications using delicate carbide tools

Some hydraulic systems provide runout below 0.003 mm and are supplied with a fine-balanced rating of G2.5 at 25,000 RPM, although actual ratings vary by holder model and spindle interface.

Hydraulic holders are not always the best option for aggressive roughing. Their gripping strength is generally lower than that of heavy mechanical milling chucks. The maximum permitted spindle speed must also be observed because excessive speed can affect the hydraulic clamping mechanism.

Precision Collet Chucks

Precision collet chucks provide flexibility because one chuck body can accommodate multiple tool diameters by changing collets.

Their advantages include:

• Wide clamping range

• Easy size changes

• Moderate cost

• Broad availability

• Compatibility with drills, reamers and end mills

• Suitability for general-purpose machining

Precision collet chucks may be used for:

• Light hard milling

• Drilling hardened components

• Finishing

• Small-batch production

• Mixed machining operations

Their limitations include:

• Lower gripping force than milling chucks

• Greater dependence on correct tightening torque

• More components in the assembly

• Potential imbalance from the collet nut

• Reduced performance when the collet is heavily collapsed

For difficult milling, use a high-precision collet close to the actual tool-shank diameter. Avoid relying on the full collapse range when accuracy and clamping security are important.

Side-Lock End Mill Holders

Side-lock holders secure the tool using a set screw that engages a Weldon flat.

Their main benefit is strong axial security.

They are appropriate for:

• Heavy roughing

• Moderate-speed machining

• Operations with high pullout risk

• Applications where maximum concentricity is not critical

Their limitations include:

• Higher runout

• Asymmetric mass distribution

• Lower suitability for high-speed machining

• Potential surface-finish limitations

• Possible imbalance

A side-lock holder may provide secure tool retention, but it is generally not the first choice for high-speed hard milling or precision finishing.

Tool Holder Selection by Machining Operation

This table should be used as an initial guide. Final selection must also consider tool diameter, cutting force, spindle speed, overhang and workpiece geometry.

Consider the Machine-Spindle Interface

The holder must match the spindle interface of the CNC machine.

Common interfaces include:

• CAT

• BT

• HSK

• SK

• PSC or polygonal interfaces

• Straight-shank interfaces

For hard-material machining, the interface must transfer cutting forces without excessive movement between the holder and spindle.

Important factors include:

• Taper contact

• Flange contact

• Pull-stud condition

• Drawbar force

• Spindle-taper cleanliness

• Holder-gauge length

• Maximum spindle speed

• Machine-spindle rigidity

Dual-contact interfaces can increase stability by creating contact at both the taper and spindle face. This can help close the gap between the holder flange and spindle face under demanding machining conditions.

However, the benefits depend on the machine spindle being designed for the same dual-contact system.

Match the Holder to the Cutting-Tool Shank

The cutting-tool shank must be compatible with the selected clamping method.

Common shank configurations include:

• Plain cylindrical shanks

• Weldon-flat shanks

• Whistle-notch shanks

• Threaded shanks

• Mechanically locked shanks

Do not place a Weldon-flat tool inside a holder intended exclusively for smooth cylindrical shanks unless the holder manufacturer approves it.

For example, using a side-lock shank inside certain mechanical milling chucks can deform the holder bore and permanently damage the clamping system.

Before installation, inspect the shank for:

• Burrs

• Scratches

• Corrosion

• Coating buildup

• Diameter variation

• Oil and contamination

• Damage near the clamping area

The shank must be clean, dimensionally accurate and inserted to the required minimum depth.

Balance Requirements

Dynamic balance becomes more important as spindle speed, holder length and tool mass increase.

Imbalance can cause:

• Vibration

• Poor surface finish

• Uneven cutting-edge loading

• Spindle-bearing stress

• Reduced tool life

• Dimensional variation

Do not evaluate balance based only on the holder body.

The complete rotating assembly includes:

• Tool holder

• Collet

• Nut

• Cutting tool

• Pull stud

• Adjustment screws

• Coolant components

A nominal balance grade such as G2.5 is meaningful only when it is associated with a specified rotational speed and assembly condition.

For high-speed hard milling, verify:

• Holder balance grade

• Maximum rated RPM

• Residual unbalance specification

• Gauge length

• Cutting-tool mass

• Whether the complete assembly requires balancing

Coolant Delivery

Effective coolant delivery can become critical when machining titanium, nickel alloys and other heat-resistant materials.

The holder should support the required coolant method, such as:

• Through-tool coolant

• Coolant-through collets

• Peripheral coolant jets

• High-pressure coolant

• Minimum-quantity lubrication

• Air blast

Coolant delivery should direct fluid toward the cutting zone without creating uncontrolled leakage between the holder and tool shank.

Some milling chucks include jet-coolant capability intended to support surface finish and tool life.

For deep-hole drilling or internal-coolant tools, confirm:

• Maximum coolant pressure

• Sealing method

• Tool-shank requirements

• Coolant-channel compatibility

• Maximum spindle speed with the sealing system installed

A Step-by-Step Selection Process

Step 1: Identify the Workpiece Material

Record the material grade, hardness and heat-treatment condition.

Do not use a general description such as “hard steel” when selecting tooling. The machining behavior of hardened tool steel differs from that of titanium or nickel-based superalloys.

Step 2: Define the Operation

Determine whether the operation is:

• Heavy roughing

• Semi-finishing

• Finishing

• Drilling

• Reaming

• Boring

• Slotting

• High-feed milling

• Deep-cavity machining

The operation determines whether rigidity, damping, accessibility or flexibility should receive the highest priority.

Step 3: Estimate Cutting Forces and Pullout Risk

Evaluate:

• Radial depth of cut

• Axial depth of cut

• Feed per tooth

• Tool helix angle

• Entry method

• Tool diameter

• Number of cutting edges

• Interrupted or continuous cut

Aggressive axial engagement and high-helix tools increase the importance of pullout prevention.

Step 4: Determine the Required Runout

Smaller tools require tighter runout control because even a small absolute error represents a large percentage of the tool diameter.

Set a complete assembly runout requirement rather than selecting the holder based only on its catalog value.

Step 5: Minimize Gauge Length

Use the shortest holder and tool combination that reaches the machining area.

When additional reach is unavoidable, reduce cutting forces and consider a shrink-fit extension, reinforced tool or vibration-damping solution. Shrink-fit extensions are specifically used to access difficult-to-reach areas while maintaining precision.

Step 6: Confirm Speed and Balance

Check the rated speed of every component in the assembly.

The lowest-rated component determines the maximum safe operating speed.

Step 7: Verify Coolant Requirements

Select a holder that supports the tool’s internal or external coolant strategy.

Step 8: Perform a Trial Cut

Monitor:

• Spindle load

• Vibration

• Tool movement

• Surface finish

• Tool wear

• Workpiece dimensions

• Cutting sound

• Chip formation

Use trial results to confirm the holder is appropriate before releasing the process for unattended or mass production.

Common Selection Mistakes

Using a General-Purpose Collet for Heavy Roughing

A standard collet chuck may not provide enough gripping force for aggressive milling in hardened steel.

Selecting the Longest Holder for Convenience

Unnecessary gauge length reduces rigidity and increases deflection.

Ignoring Tool Pullout

A holder may show excellent static runout while still allowing axial movement under heavy cutting loads.

Choosing Only by Maximum RPM

A holder suitable for high speed is not necessarily suitable for high cutting force.

Ignoring the Tool Shank

Incorrect shank geometry can reduce contact, increase runout or damage the holder.

Mixing Unmatched Components

Combining holders, collets, nuts, sleeves and tools without confirming compatibility can prevent the assembly from reaching its expected accuracy.

Overlooking Machine Condition

Even a premium holder cannot fully compensate for:

• A worn spindle taper

• Insufficient drawbar force

• Damaged pull studs

• Spindle bearing wear

• Contaminated interfaces

Reusing Damaged Holders

Fretting, corrosion, damaged tapers and worn clamping bores can reduce rigidity and repeatability.

Procurement Checklist for CNC Tool Holders

Before placing an order, industrial buyers should request:

• Spindle interface

• Holder type

• Clamping diameter

• Tool-shank compatibility

• Gauge length

• Nose diameter

• Maximum spindle speed

• Balance grade

• Guaranteed runout

• Runout measurement position

• Recommended tightening torque

• Maximum gripping torque

• Pullout-prevention options

• Coolant delivery method

• Maximum coolant pressure

• Material and heat treatment

• Taper and flange inspection method

• Individual balance report availability

• Traceability information

• Compatible sleeves and accessories

• Replacement-part availability

• Packaging and corrosion protection

• OEM or customized holder capability

For repeat production, it is also useful to standardize tool assemblies by machining operation. This reduces setup variation and makes tool-life comparisons more reliable.

Frequently Asked Questions

Which tool holder is best for hardened steel?

For heavy roughing, a mechanical milling chuck is often preferred because of its gripping force and rigidity. For precision hard milling and finishing, shrink-fit or hydraulic holders may provide better runout, accessibility and vibration control.

Are hydraulic holders suitable for hard milling?

Yes, particularly for finishing, precision drilling and operations sensitive to chatter. Their vibration damping and low runout can improve surface quality. For aggressive roughing, verify that the available gripping force is sufficient.

Are shrink-fit holders suitable for titanium?

Shrink-fit holders can be suitable for titanium machining when their gripping force, tool projection, cooling strategy and speed rating match the operation. Aggressive cuts may require additional pullout security.

How important is runout when machining hard materials?

Runout is extremely important for small tools and finishing operations. Excessive runout creates uneven flute loading, which can rapidly damage brittle carbide cutting edges.

What causes an end mill to pull out of a holder?

Common causes include insufficient clamping force, incorrect tightening, excessive cutting forces, an unsuitable holder, inadequate insertion depth, contaminated surfaces or a high-helix cutting tool.

Should I use a Weldon holder for hard-material machining?

A Weldon holder provides strong axial security and may be suitable for heavy roughing at moderate speeds. It is generally less suitable for high-speed precision finishing because of runout and balance limitations.

Which holder provides the best vibration damping?

Hydraulic expansion holders are widely used where vibration damping and surface finish are priorities.

Which holder provides the highest gripping force?

Mechanical milling chucks generally provide greater gripping force than conventional collet, hydraulic and shrink-fit holders. The exact performance depends on the holder design and tool diameter.

Can a long tool holder be used for hard milling?

It can be used when component access requires it, but the reduced rigidity normally requires lighter cutting parameters. The shortest practical assembly is preferred.

How often should tool holders be inspected?

Inspection frequency should be based on cutting loads, spindle speed, tool-change cycles and workpiece value. Holders used for heavy roughing or unattended production should be checked regularly for taper damage, bore wear, runout and loss of clamping performance.

Conclusion

Selecting CNC tool holders for hard materials requires balancing several competing requirements.

Heavy roughing generally demands high rigidity, strong torque transmission and reliable pullout protection. Precision hard milling requires low runout, good balance and a slim holder profile. Finishing operations often benefit from the vibration damping of hydraulic holders, while shrink-fit systems provide an effective combination of accuracy, rigidity and accessibility.

The final decision should be based on:

• Workpiece material and hardness

• Machining operation

• Cutting forces

• Tool diameter

• Tool-shank design

• Required runout

• Spindle speed

• Gauge length

• Coolant method

• Pullout risk

A properly selected holder stabilizes the entire cutting system. It can extend cutting-tool life, improve surface quality, reduce scrap and make difficult hard-material machining processes more predictable.
