In modern CNC machining, tool holders are often considered a small component compared with cutting tools and machine tools. However, the quality of a CNC tool holder directly affects machining accuracy, tool life, surface finish, productivity, and overall manufacturing costs.

A high-quality CNC tool holder provides stable tool clamping, excellent rigidity, low runout, and reliable performance under high-speed machining conditions. On the other hand, poor-quality tool holders can cause vibration, premature tool wear, dimensional errors, and even damage to expensive CNC equipment.

For manufacturers working with precision components, aerospace parts, automotive components, medical devices, molds, and high-value industrial products, selecting the right CNC tool holder is essential.

This guide explains the key factors to identify high-quality CNC tool holders and helps buyers evaluate suppliers more effectively.

1. Understand the Role of a CNC Tool Holder

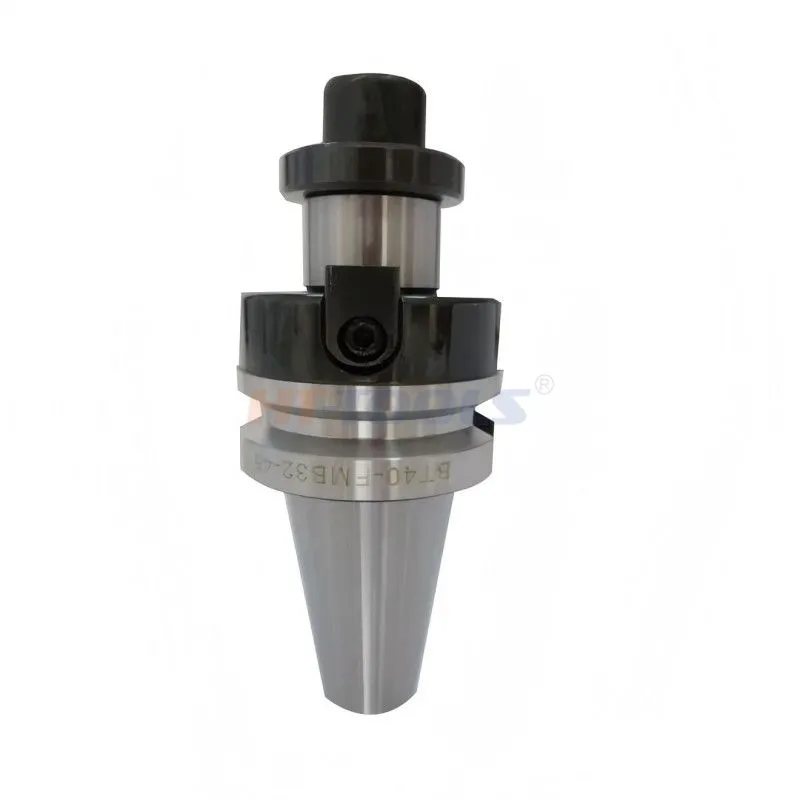

A CNC tool holder is the connection interface between the CNC machine spindle and the cutting tool. It transfers rotational power and maintains the cutting tool position during machining operations.

A high-performance tool holder must achieve:

• Strong clamping force

• High concentricity

• Excellent balance at high RPM

• Superior rigidity

• Low vibration

• Long service life

Common CNC tool holder types include:

• BT tool holders

• CAT tool holders

• HSK tool holders

• SK tool holders

• Hydraulic tool holders

• Shrink fit tool holders

• Collet chucks

• Milling chucks

• ER tool holders

Different machining applications require different tool holder designs and performance characteristics.

2. Check the Material Quality of the Tool Holder

The material used for manufacturing CNC tool holders directly influences durability, rigidity, and machining stability.

High-Quality Tool Holder Materials

Most premium CNC tool holders are manufactured from:

High-Strength Tool Steel

Common materials include:

• 40Cr

• 42CrMo

• SCM415

• SCM440

• H13 steel

These materials provide:

• High hardness

• Excellent wear resistance

• Good impact resistance

• Stable performance under heavy cutting loads

Hardened Surface Treatment

Premium tool holders usually undergo heat treatment processes such as:

• Vacuum heat treatment

• Carburizing

• Nitriding treatment

A properly treated tool holder typically achieves:

• 50–60 HRC hardness

• Improved wear resistance

• Reduced deformation

• Longer operating life

Low-quality tool holders often use inferior steel with inconsistent hardness, resulting in faster wear and reduced accuracy.

3. Evaluate Tool Holder Precision and Runout

Precision is one of the most important factors when selecting CNC tool holders.

What Is Tool Holder Runout?

Runout refers to the deviation between the actual rotational axis and the ideal center axis of the tool holder.

Higher runout causes:

• Uneven cutting forces

• Poor surface finish

• Reduced tool life

• Lower machining accuracy

High-quality CNC tool holders typically achieve:

• ≤3 μm runout for precision machining

• ≤5 μm runout for general machining

For industries requiring ultra-precision machining, such as aerospace and medical components, extremely low runout is critical.

When evaluating suppliers, buyers should ask:

• What is the guaranteed runout accuracy?

• How is accuracy measured?

• Is each tool holder individually inspected?

4. Inspect the Taper Accuracy

The spindle taper is the critical connection area between the machine spindle and the tool holder.

Common taper standards include:

• BT30

• BT40

• BT50

• CAT40

• CAT50

• HSK-A63

• HSK-A100

A high-quality tool holder requires:

• Accurate taper dimensions

• Smooth surface finish

• Proper contact area

• Excellent spindle fitting

Poor taper accuracy may lead to:

• Spindle vibration

• Tool displacement

• Reduced machining precision

• Shorter spindle life

Professional manufacturers use precision grinding machines to achieve consistent taper accuracy.

5. Analyze Dynamic Balance Performance

High-speed CNC machining requires excellent tool holder balance.

When a tool holder rotates at high speed, imbalance creates centrifugal forces that generate vibration.

A premium CNC tool holder should have:

• Dynamic balancing capability

• Precise weight distribution

• Balanced design for high RPM machining

Typical balance grades include:

• G6.3

• G2.5

• G1.0

For high-speed machining applications above 10,000 RPM, G2.5 balance or better is commonly required.

Applications requiring high balance performance include:

• Aerospace machining

• Mold manufacturing

• Aluminum high-speed cutting

• Precision component manufacturing

6. Examine the Clamping System

The clamping structure determines how securely the cutting tool is held.

Different CNC tool holders use different clamping methods.

ER Collet Tool Holders

Advantages:

• Versatile

• Cost-effective

• Suitable for general machining

Important quality factors:

• Collet precision

• Nut design

• Clamping accuracy

Hydraulic Tool Holders

Advantages:

• Excellent vibration damping

• High precision

• Suitable for finishing operations

Shrink Fit Tool Holders

Advantages:

• High rigidity

• Minimal runout

• Ideal for high-speed machining

A high-quality clamping system should provide:

• Strong holding force

• Stable tool positioning

• Easy tool replacement

• Long-term repeatability

7. Consider Manufacturing Process and Quality Control

A reliable CNC tool holder manufacturer should have strict production control.

Important manufacturing processes include:

Precision Forging

Improves:

• Material density

• Mechanical strength

• Structural stability

CNC Machining

Ensures:

• Accurate dimensions

• Consistent quality

• Smooth surfaces

Precision Grinding

Creates:

• Accurate taper geometry

• Low surface roughness

• Better spindle contact

Quality Inspection

Professional suppliers typically inspect:

• Hardness

• Runout

• Balance

• Dimensions

• Surface finish

Ask suppliers whether they provide inspection reports or quality certificates.

8. Compare Surface Finish Quality

Surface finish affects tool holder performance and spindle connection.

A premium CNC tool holder should have:

• Smooth taper surface

• No scratches or machining marks

• Uniform coating

• Precise keyway machining

Poor surface finishing may cause:

• Improper spindle contact

• Reduced clamping force

• Increased vibration

Visual inspection is the first step, but precision measurement is required for professional applications.

9. Check Compatibility With CNC Machines

A high-quality tool holder must match the CNC machine system.

Before purchasing, confirm:

• Spindle type

• Taper size

• Pull stud specifications

• Tool diameter range

• Maximum RPM requirements

For example:

Incorrect compatibility may result in poor machining performance or equipment damage.

10. Evaluate Supplier Manufacturing Capability

Choosing the right manufacturer is as important as choosing the right tool holder.

A professional CNC tool holder supplier should provide:

Engineering Capability

• Custom tool holder design

• OEM manufacturing

• Application support

Production Capability

• Advanced CNC equipment

• Precision grinding machines

• Heat treatment facilities

Quality Management

Look for:

• ISO-certified manufacturing

• Quality inspection procedures

• Traceable production processes

Customer Support

Reliable suppliers should provide:

• Technical recommendations

• Product selection guidance

• After-sales service

11. Common Signs of Low-Quality CNC Tool Holders

Avoid tool holders with the following problems:

1. Extremely Low Prices

Very cheap products often indicate:

• Poor material selection

• Weak heat treatment

• Limited inspection

2. No Accuracy Specifications

Reliable manufacturers provide clear data about:

• Runout

• Hardness

• Balance grade

• Taper accuracy

3. Rough Surface Finish

Visible machining defects may indicate poor manufacturing control.

4. Inconsistent Dimensions

Poor dimensional control leads to unstable machining performance.

5. Lack of Technical Support

Professional suppliers should understand machining requirements rather than simply selling products.

12. Questions to Ask Before Purchasing CNC Tool Holders

Before selecting a supplier, ask:

Product Quality Questions

• What material is used?

• What hardness level is achieved?

• What is the runout tolerance?

• What balance grade is available?

Manufacturing Questions

• Do you perform heat treatment internally?

• What inspection equipment do you use?

• Can you provide quality reports?

Application Questions

• Is this tool holder suitable for high-speed machining?

• What cutting conditions are recommended?

• Can you provide customized solutions?

Conclusion: Choosing the Right CNC Tool Holder Improves Machining Performance

A high-quality CNC tool holder is not simply a tool accessory—it is a critical precision component that determines machining stability and productivity.

When selecting CNC tool holders, manufacturers should focus on:

• Material quality

• Precision accuracy

• Runout control

• Dynamic balance

• Clamping performance

• Manufacturing capability

• Supplier reliability

Investing in premium CNC tool holders can significantly reduce tool wear, improve machining accuracy, increase production efficiency, and lower long-term manufacturing costs.

For precision machining operations, choosing a reliable CNC tool holder manufacturer is one of the most important decisions for achieving consistent machining performance.
