Introduction: The Hidden Role of CNC Tool Holders in Machining Quality

When manufacturers evaluate surface finish in CNC machining, they often focus on cutting tools, machining parameters, and workpiece materials. However, one critical factor is frequently overlooked: the CNC tool holder.

A CNC tool holder serves as the connection between the machine spindle and the cutting tool. Its ability to maintain tool stability, reduce vibration, and control tool runout directly affects the final surface quality of machined parts.

Even with a high-quality end mill or milling cutter, an inaccurate or unstable tool holder can cause:

· Poor surface finish
· Chatter marks
· Uneven cutting patterns
· Shorter tool life
· Dimensional inaccuracies

For precision industries such as aerospace, automotive, mold manufacturing, and medical equipment, choosing the right CNC tool holder is essential for achieving consistent machining results.

What Is a CNC Tool Holder?

A CNC tool holder is a precision component used to secure cutting tools inside a CNC machine spindle. It transfers the spindle's rotational movement and cutting force to the tool while maintaining accurate positioning.

Common CNC tool holder types include:

· ER collet holders
· Hydraulic tool holders
· Shrink fit holders
· Milling chucks

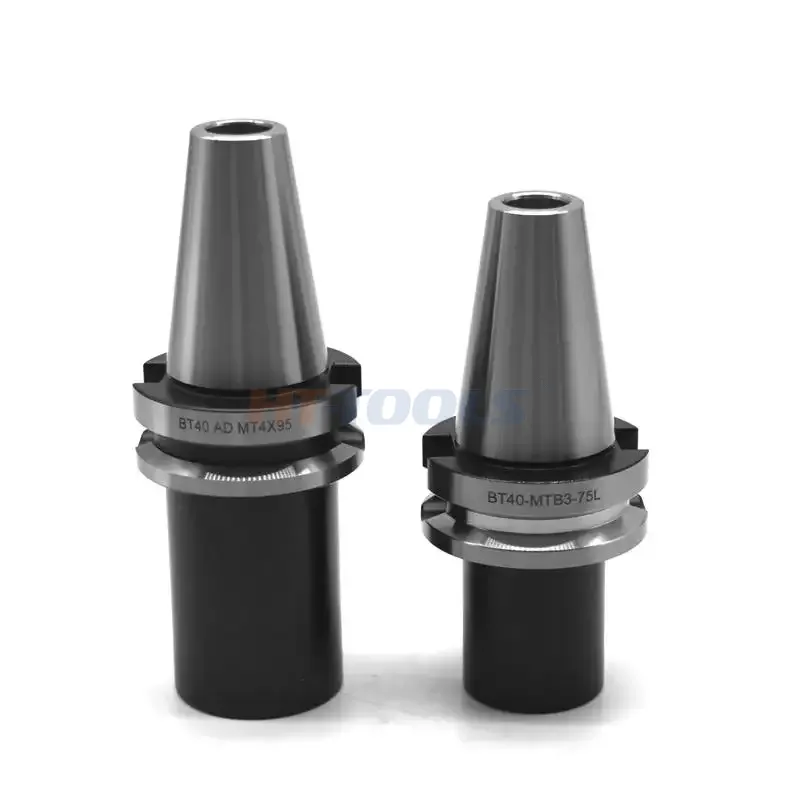

· BT tool holders
· CAT tool holders
· HSK tool holders

Different holders are designed for different machining requirements, including high-speed cutting, heavy-duty milling, and precision finishing operations.

How CNC Tool Holders Influence Surface Finish

1. Reducing Tool Runout for Better Surface Quality

Tool runout is one of the most important factors affecting surface finish.

Runout occurs when the cutting tool does not rotate perfectly around the spindle axis. This causes some cutting edges to remove more material than others.

High runout can result in:

· Uneven cutting loads
· Visible machining marks
· Poor dimensional accuracy
· Increased tool wear

A precision CNC tool holder minimizes radial movement between the spindle and cutting tool, ensuring stable rotation.

Lower runout allows each cutting edge to perform consistently, producing smoother machined surfaces.

2. Improving Tool Rigidity and Cutting Stability

During CNC machining, cutting forces create pressure between the tool and workpiece. If the tool holder lacks rigidity, the cutting tool may deflect or vibrate.

Tool deflection can cause:

· Uneven surface patterns
· Incorrect part dimensions
· Poor edge quality
· Additional finishing operations

A rigid tool holder provides stronger support for the cutting tool, especially during:

· High-feed milling
· Deep cavity machining
· Heavy material removal
· Hard material cutting

Improved rigidity allows the cutting tool to maintain a stable cutting path, resulting in better surface finish.

3. Minimizing Vibration and Chatter

Chatter is a common machining problem caused by unstable cutting conditions.

It appears as:

· Visible waves on machined surfaces
· Periodic tool marks
· Excessive noise during machining

CNC tool holders help reduce chatter by improving:

· Tool clamping force
· Spindle-tool connection stability
· Dynamic balance performance

For high-speed machining applications, balanced tool holders are especially important because imbalance forces increase with spindle speed.

4. Maintaining Accurate Tool Positioning

Precision machining requires the cutting tool to stay exactly where the CNC program expects it to be.

A high-quality tool holder ensures:

· Accurate tool center position
· Repeatable tool changes
· Consistent machining depth
· Reliable dimensional control

This is especially important for multi-axis machining where small positioning errors can affect complex part geometries.

5. Improving Tool Life and Maintaining Consistent Finish

A stable tool holder reduces unnecessary stress on cutting tools.

Poor tool holding can cause:

· Uneven wear on cutting edges
· Premature tool failure
· Increased heat generation
· Inconsistent surface quality

By maintaining proper alignment and reducing vibration, CNC tool holders help cutting tools maintain their designed performance for longer periods.

This leads to:

· Fewer tool changes
· Lower machining costs
· More consistent production quality

The Relationship Between Tool Holder Types and Surface Finish

ER Collet Holders

ER collet holders are widely used because of their flexibility and cost-effectiveness.

Advantages:

· Suitable for various tool diameters
· Easy tool changes
· Good general-purpose accuracy

They are commonly used for:

· General milling
· Drilling
· Light finishing operations

However, for extreme precision machining, other tool holding systems may provide better rigidity and lower runout.

Hydraulic Tool Holders

Hydraulic holders use hydraulic pressure to clamp the cutting tool.

Benefits include:

· Excellent vibration damping
· High precision
· Low runout

They are commonly selected for:

· Finishing operations
· Precision components
· Aerospace machining

The improved damping capability helps produce excellent surface finishes.

Shrink Fit Tool Holders

Shrink fit holders use thermal expansion and contraction to secure the cutting tool.

Advantages:

· Strong clamping force
· Excellent balance at high speed
· Minimal interference with machining areas

They are suitable for:

· High-speed milling
· Complex mold machining
· Precision finishing

Milling Chucks

Milling chucks provide strong gripping force and high rigidity.

They are commonly used for:

· Heavy-duty cutting
· Large material removal
· Difficult-to-machine materials

Their high clamping strength helps prevent tool movement during demanding operations.

Key CNC Tool Holder Factors Affecting Surface Finish

1. Runout Accuracy

Lower runout generally results in better surface quality.

Precision machining applications often require tool holders with extremely low runout to maintain consistent cutting performance.

2. Dynamic Balance

At high spindle speeds, even small imbalances can create vibration.

A balanced tool holder helps maintain:

· Smooth spindle rotation
· Reduced vibration
· Better surface appearance

3. Clamping Force

A strong and stable grip prevents:

· Tool slipping
· Micro movement
· Uneven cutting

The correct clamping method depends on the machining application and tool size.

4. Tool Holder Material and Manufacturing Precision

High-quality tool holders are manufactured using precision-machined materials such as hardened steel.

Important characteristics include:

· High rigidity
· Wear resistance
· Dimensional stability
· Long service life

Common Surface Finish Problems Caused by Poor Tool Holders

Chatter Marks

Cause:

· Insufficient rigidity
· Excessive vibration
· Poor tool clamping

Solution:

Use a more rigid tool holder with better vibration control.

Uneven Surface Texture

Cause:

· Excessive tool runout
· Incorrect tool alignment

Solution:

Choose a precision tool holder with lower runout.

Tool Wear and Poor Cutting Performance

Cause:

· Tool movement inside the holder
· Unstable cutting conditions

Solution:

Improve the tool holding system and verify proper clamping.

Dimensional Errors

Cause:

· Tool deflection
· Inconsistent positioning

Solution:

Use a higher-precision CNC tool holder suitable for the application.

How to Select the Right CNC Tool Holder for Better Surface Finish

When selecting a CNC tool holder, manufacturers should consider:

Machining Operation

Different operations require different holding systems.

Spindle Type Compatibility

The tool holder must match the CNC machine spindle standard, such as:

· BT
· CAT
· HSK
· ISO

Incorrect compatibility can reduce accuracy and machining performance.

Cutting Conditions

Consider:

· Spindle speed
· Cutting depth
· Tool diameter
· Workpiece material
· Required surface finish

High-speed and precision applications usually require higher-performance tool holders.

Best Practices to Improve Surface Finish with CNC Tool Holders

To maximize machining quality:

· Use the correct tool holder type for each operation
· Clean spindle and holder contact surfaces regularly
· Check tool holder wear periodically
· Use balanced assemblies for high-speed machining
· Avoid excessive tool stick-out length
· Maintain proper clamping force
· Replace damaged holders immediately

Proper maintenance ensures consistent accuracy and surface quality.

Conclusion

CNC tool holders play a crucial role in determining machining surface finish. By controlling tool runout, improving rigidity, reducing vibration, and maintaining accurate tool positioning, a high-quality tool holder helps manufacturers achieve smoother surfaces and more reliable production results.

For precision CNC machining, the cutting tool alone does not determine quality. The entire tool holding system must work together to deliver stable performance, longer tool life, and consistent surface finishes.

FAQ

Why does a CNC tool holder affect surface finish?

A CNC tool holder affects surface finish because it controls tool stability, runout, vibration, and cutting accuracy during machining.

Can a better tool holder improve CNC machining quality?

Yes. A high-precision tool holder can reduce vibration, improve tool positioning, and produce smoother machined surfaces.

Which CNC tool holder is best for surface finishing?

Hydraulic tool holders and shrink fit holders are commonly used for precision finishing because they provide high rigidity and low runout.

How does tool runout affect surface finish?

High tool runout causes uneven cutting forces, which creates inconsistent surface textures and accelerates tool wear.

How often should CNC tool holders be replaced?

Replacement depends on usage conditions, maintenance, and wear. Tool holders should be inspected regularly and replaced when accuracy or clamping performance decreases.
