Introduction: Why Collets Matter in CNC Hole Drilling Accuracy

In CNC machining, drilling accuracy depends on more than just the quality of the drill bit or the power of the machine spindle. The connection between the cutting tool and the spindle plays a critical role in maintaining precision, stability, and repeatability.

A CNC machine collet is a precision tool-holding component designed to securely grip drills, end mills, reamers, and other cutting tools. By minimizing tool movement, reducing vibration, and maintaining accurate tool alignment, CNC collets help manufacturers achieve consistent hole diameter, depth, and surface quality.

For industries such as automotive manufacturing, aerospace, medical devices, mold making, and precision engineering, proper collet selection can directly influence machining efficiency and final product quality.

What Is a CNC Machine Collet?

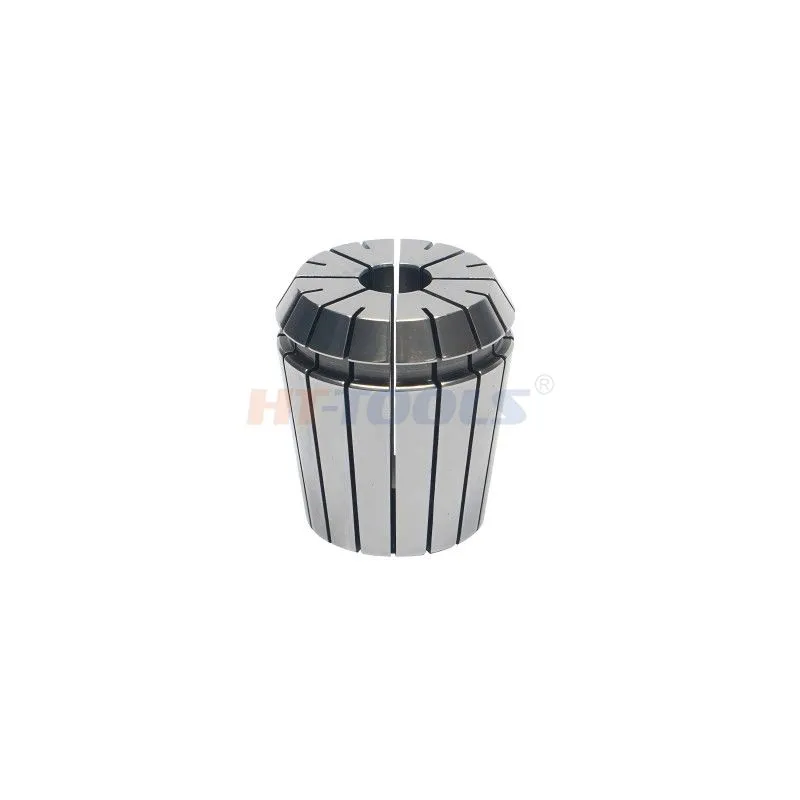

A CNC machine collet is a cylindrical clamping device installed inside a collet chuck or spindle system. It uses a tapered design to create uniform radial pressure around the cutting tool when tightened.

Unlike traditional chucks that grip tools at several points, collets provide 360-degree contact with the tool shank, offering better holding force and improved concentricity.

Common CNC collet types include:

· ER collets
· Hydraulic collets
· Precision collets
· Spring collets
· Tool holder collets
· Specialized drilling collets

Among these, ER collets are widely used in CNC drilling and milling operations because of their versatility, accuracy, and compatibility with different tool sizes.

The Role of CNC Collets in Accurate Hole Drilling

1. Maintaining Tool Concentricity

One of the biggest factors affecting hole accuracy is tool runout.

Tool runout occurs when the drill does not rotate perfectly around the spindle centerline. Even a small amount of movement can cause:

· Oversized holes
· Uneven hole walls
· Poor surface finish
· Reduced drill life

A precision CNC collet helps maintain high concentricity by evenly gripping the drill shank from all directions.

High-quality collets can achieve very low runout levels, allowing cutting tools to maintain stable rotation during high-speed drilling operations.

2. Reducing Tool Vibration During Drilling

Vibration is a common problem in CNC drilling, especially when machining:

· Stainless steel
· Hardened steel
· Aluminum alloys
· Composite materials

Excessive vibration can lead to:

· Chatter marks
· Poor hole quality
· Drill breakage
· Reduced tool lifespan

CNC collets improve stability by firmly holding the tool and preventing unwanted movement between the tool shank and spindle.

A stable tool setup allows the drill edges to cut evenly, producing cleaner and more accurate holes.

3. Improving Hole Diameter Accuracy

During CNC drilling, the actual hole size can be affected by several factors:

· Tool deflection
· Spindle vibration
· Incorrect tool holding
· Uneven cutting forces

A precision collet ensures the drill remains centered throughout the machining process.

This is especially important for applications requiring tight tolerances, such as:

· Engine components
· Hydraulic parts
· Aerospace structures
· Medical equipment parts

By maintaining consistent tool positioning, CNC collets help achieve repeatable hole dimensions.

4. Providing Strong Tool Clamping Force

During drilling, cutting forces push against the tool in multiple directions. If the tool slips inside the holder, hole accuracy will decrease.

CNC collets provide strong clamping through:

· Uniform gripping pressure
· Accurate taper engagement
· Increased friction between the collet and tool shank

This prevents:

· Tool pull-out
· Incorrect drilling depth
· Sudden tool movement

For deep-hole drilling or heavy-duty machining, a high-performance collet system is essential.

5. Supporting High-Speed CNC Drilling

Modern CNC machines often operate at high spindle speeds to improve productivity.

However, higher speeds increase the demand for precision tool holding.

A quality CNC collet helps maintain:

· Balanced rotation
· Stable cutting performance
· Reduced heat generation
· Longer tool life

For high-speed machining centers, precision collets are often paired with balanced tool holders to minimize centrifugal forces and vibration.

How CNC Collets Improve Different Drilling Applications

Precision Hole Drilling in Automotive Manufacturing

Automotive components often require thousands of accurately positioned holes.

Examples include:

· Engine blocks
· Transmission components
· Brake system parts
· Chassis components

CNC collets help maintain consistent drilling performance during large-volume production.

Aerospace Component Machining

Aerospace parts require extremely high accuracy because even small dimensional errors can affect performance and safety.

CNC collets support aerospace drilling applications by providing:

· High repeatability
· Low runout
· Stable tool positioning
· Reliable machining quality

Mold and Die Manufacturing

Mold components often require precise cooling channels and mounting holes.

Poor tool holding can result in:

· Incorrect hole locations
· Additional finishing operations
· Increased production costs

Precision CNC collets help manufacturers maintain accuracy throughout complex machining processes.

CNC Collet Accuracy Factors to Consider

When selecting CNC collets for drilling operations, manufacturers should consider several important factors.

1. Collet Runout Accuracy

Lower runout means better drilling precision.

For high-precision machining, manufacturers typically choose collets designed for minimal radial movement.

2. Material and Manufacturing Quality

High-quality CNC collets are commonly manufactured from hardened tool steel with precision grinding processes.

Important features include:

· Wear resistance
· Dimensional stability
· Long service life
· Consistent clamping performance

3. Tool Size Compatibility

Different drilling applications require different collet sizes.

For example:

· Small-diameter drills require precise small-size collets
· Heavy drilling requires stronger gripping systems
· Multi-purpose machining often uses ER collets with wide size ranges

Choosing the correct size prevents poor clamping and tool vibration.

4. Proper Maintenance

Even high-quality collets can lose accuracy if they are not maintained properly.

Recommended maintenance practices include:

· Cleaning chips and coolant residue regularly
· Checking for wear or deformation
· Avoiding over-tightening
· Inspecting tool contact surfaces

A damaged collet can significantly increase tool runout and reduce drilling accuracy.

Common Problems Caused by Poor CNC Collet Selection

Using an unsuitable or low-quality collet may result in:

Excessive Tool Runout

The drill rotates unevenly, causing inaccurate hole sizes.

Tool Slippage

The drill moves during cutting, affecting hole depth and position.

Increased Tool Wear

Poor stability creates uneven cutting forces and accelerates tool damage.

Poor Surface Finish

Vibration creates rough internal hole surfaces.

Lower Production Efficiency

Frequent tool replacement and rework increase machining costs.

CNC Collets vs Traditional Drill Chucks

For CNC production environments requiring repeatable accuracy, collet systems generally provide better performance.

How to Choose the Right CNC Collet for Hole Drilling

Before selecting a CNC collet, manufacturers should evaluate:

· CNC machine spindle type
· Drill diameter range
· Required hole tolerance
· Machining material
· Cutting speed
· Production volume

For general CNC drilling and milling applications, ER collets are often a practical choice due to their flexibility and reliable accuracy.

For ultra-precision machining, high-precision collets or hydraulic tool holders may provide better results.

Best Practices for Maximizing CNC Collet Performance

To achieve the best drilling accuracy:

· Use the correct collet size for the tool shank
· Insert the tool to the recommended depth
· Keep the collet and chuck clean
· Avoid mixing different collet standards
· Replace worn collets promptly
· Use balanced tool assemblies for high-speed machining

Proper setup ensures the CNC collet can deliver maximum holding force and positioning accuracy.

Conclusion

CNC machine collets play a crucial role in achieving accurate hole drilling by improving tool stability, reducing vibration, and maintaining precise tool alignment. A reliable collet system helps manufacturers produce consistent holes with better surface finishes, longer tool life, and higher machining efficiency.

For CNC machining operations where precision and repeatability are critical, investing in high-quality CNC collets is an effective way to improve overall production performance and reduce machining defects.

FAQ

What is the main purpose of a CNC collet?

A CNC collet securely holds cutting tools inside the spindle while maintaining accurate positioning and reducing tool movement during machining.

How do CNC collets improve drilling accuracy?

CNC collets improve accuracy by reducing tool runout, increasing clamping force, and maintaining stable tool rotation.

Are ER collets suitable for drilling operations?

Yes. ER collets are widely used for CNC drilling because they provide reliable gripping, good accuracy, and compatibility with many tool sizes.

How often should CNC collets be replaced?

Replacement frequency depends on machining conditions, usage time, and maintenance practices. Collets should be replaced when signs of wear, deformation, or increased runout appear.

Can a damaged collet affect hole quality?

Yes. A worn or damaged collet can cause tool vibration, inaccurate hole dimensions, poor surface finish, and reduced tool life.
