How CNC Machine Collets Affect Surface Finish

In precision machining, surface finish is more than just aesthetics—it directly impacts part performance, assembly fit, and overall product quality. While cutting tools, feeds, and speeds often get the spotlight, CNC machine collets play a critical yet frequently overlooked role in determining the final surface finish.

Understanding how collets influence machining outcomes can help manufacturers reduce defects, improve consistency, and extend tool life.

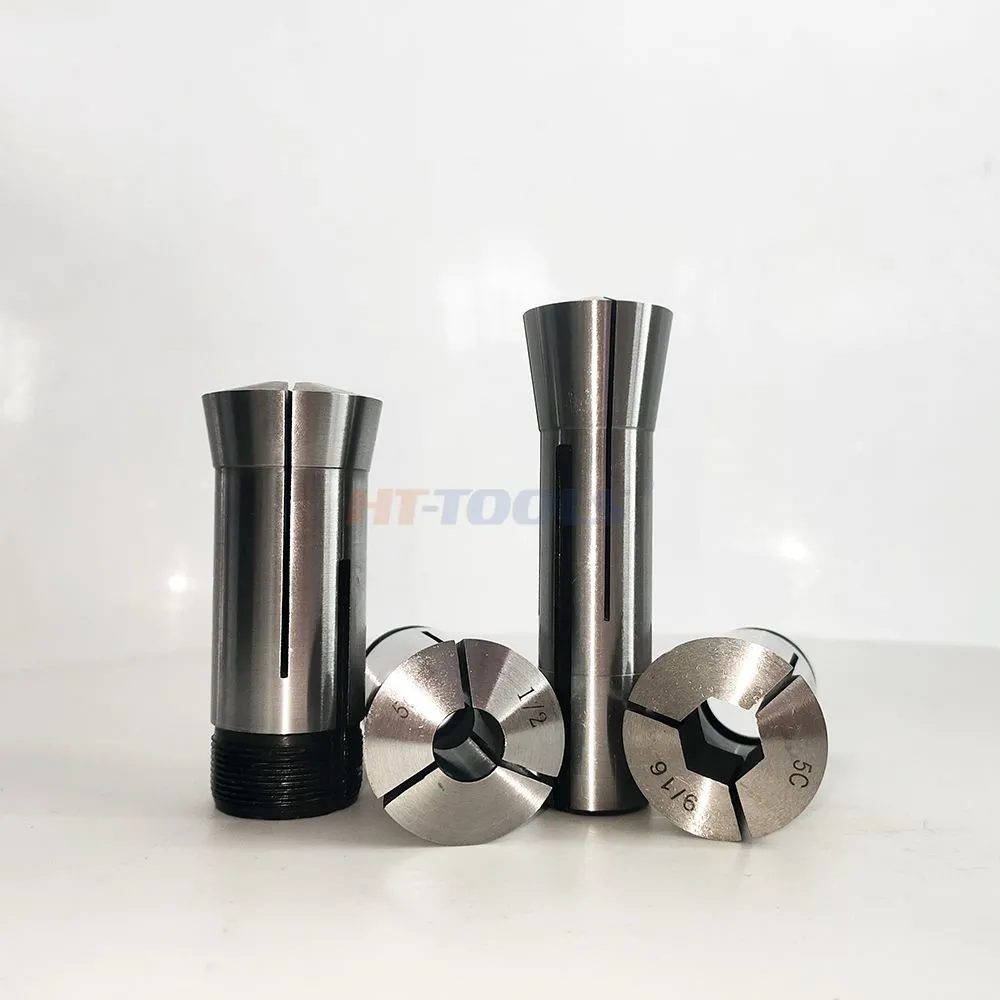

What Is a CNC Collet and Why It Matters

A CNC collet is a precision clamping device used to hold cutting tools or workpieces in place during machining. It ensures concentricity and stability between the spindle and the tool. Common types include ER collets, spring collets, and hydraulic collets, each designed for specific machining requirements.

Because the collet directly affects how securely and accurately the tool is held, even minor deviations can lead to visible surface imperfections.

Key Factors Linking Collets to Surface Finish

1. Runout Accuracy and Concentricity

Runout refers to the deviation between the tool’s rotational axis and the spindle centerline. High-quality collets minimize runout, ensuring the cutting edge engages the material evenly.

Low runout (≤ 5μm): Smooth, consistent surface finish

High runout: Tool chatter, uneven cutting marks, and poor finish

Even a small runout error can cause one side of the tool to bear more load, leading to inconsistent cutting and visible surface defects.

2. Clamping Force and Stability

Collets must provide uniform and sufficient clamping force to prevent tool slippage or micro-movement during machining.

Insufficient clamping → vibration and chatter

Excessive force → tool deformation or imbalance

A stable tool reduces vibration, which is essential for achieving fine surface finishes, especially in high-speed or finishing operations.

3. Vibration Damping and Chatter Control

Chatter is one of the primary causes of poor surface finish. The design and material of the collet influence its ability to absorb and damp vibrations.

Hydraulic collets: Excellent damping, ideal for finishing

Spring collets: Versatile but less effective in vibration control

Reducing vibration leads to smoother cuts and eliminates ripple patterns on machined surfaces.

4. Collet Wear and Maintenance

Over time, collets can wear out, lose elasticity, or accumulate debris. Worn collets compromise clamping accuracy and introduce inconsistencies.

Common issues include:

Reduced gripping force

Increased runout

Surface scratches due to instability

Regular inspection and replacement of collets are essential for maintaining high surface quality.

5. Tool Holding Length and Balance

Improper tool projection (stick-out) can amplify vibration and reduce rigidity. Collets that securely hold tools at optimal lengths help maintain balance during rotation.

A well-balanced setup ensures:

Reduced spindle load

Improved cutting stability

Better surface finish consistency

Choosing the Right Collet for Better Surface Finish

Selecting the appropriate collet type is crucial for optimizing machining results:

ER Collets: General-purpose, suitable for a wide range of applications

High-Precision Collets: Designed for minimal runout and tight tolerances

Hydraulic Collets: Best for high-speed finishing and superior surface quality

Shrink Fit Systems: Offer maximum rigidity and minimal runout for ultra-fine finishes

Matching the collet to the machining task ensures optimal performance.

Best Practices to Improve Surface Finish with Collets

To maximize surface quality, manufacturers should follow these practical guidelines:

Use high-precision collets with certified runout tolerances

Keep collets and tool holders clean and free of chips or oil residue

Replace worn or damaged collets regularly

Ensure proper torque when tightening collet nuts

Minimize tool overhang to reduce vibration

Balance the tool holder assembly for high-speed machining

Industry Applications Where Surface Finish Is Critical

CNC collet performance is especially important in industries that demand superior surface quality:

Aerospace: Tight tolerances and fatigue resistance

Medical devices: Smooth finishes for biocompatibility

Automotive: Precision components with consistent quality

Mold and die manufacturing: Fine surface details and polishing reduction

In these sectors, even minor improvements in surface finish can lead to significant cost savings and performance gains.

Conclusion

CNC machine collets are a foundational component in achieving high-quality surface finishes. From controlling runout and vibration to ensuring stable clamping, their influence extends across every stage of the machining process.

Investing in high-quality collets and maintaining them properly is not just a tooling decision—it’s a strategic move toward better machining accuracy, improved efficiency, and superior product quality.
