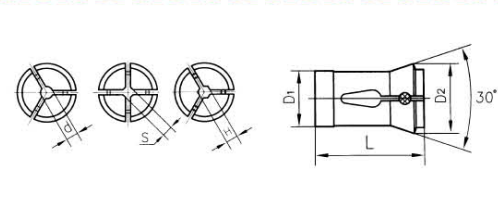

163e 171e 185e DIN6343 Collet

In CNC machining, precision is everything. From turning and milling to drilling and boring, even a small misalignment can compromise part quality, increase tool wear, and cause costly downtime. One of the most overlooked yet critical factors in achieving high machining accuracy is the collet. Choosing and using the right collet properly can make a significant difference in performance.

Understanding the Role of Collets in CNC Machining

A collet is a cylindrical sleeve that fits inside the spindle of a CNC machine and clamps onto a tool or workpiece. Its primary function is to provide:

Secure gripping to prevent tool slipping

High concentricity to minimize runout

Stable support under high-speed rotation

Collets are used in various CNC machines, including lathes, milling machines, and drilling centers, making them an essential component in precision machining.

Factors Affecting Machining Accuracy

Several factors influence how a collet impacts CNC machining accuracy:

Runout – The radial deviation of the tool relative to the spindle axis. Excessive runout can cause uneven cuts and poor surface finish.

Grip Strength – Insufficient clamping force allows the tool to wobble, affecting tolerances.

Material and Hardness – High-strength, hardened steel collets resist deformation, maintaining consistent grip over time.

Tool Shank Compatibility – Using a collet that does not match the tool shank diameter reduces grip accuracy.

Maintenance – Dirt, debris, or wear in the collet or spindle can introduce errors.

Tips to Optimize CNC Machining Accuracy with Collets

1. Choose the Right Collet Type

Different collet types offer varying levels of precision and grip:

ER Collets – Widely used in CNC lathes and milling machines; flexible clamping range and high accuracy.

DA Collets – Ideal for milling and turning operations requiring strong clamping.

R8 Collets – Common in smaller milling machines for light-duty applications.

Selecting a collet compatible with your spindle and tool type is the first step in optimizing accuracy.

2. Ensure Proper Tool Shank Fit

The tool shank should match the nominal diameter of the collet. Avoid using undersized or oversized shanks, as they can cause runout and vibration.

3. Maintain Collets and Spindle

Regular cleaning and inspection are essential:

Remove chips and coolant residue from the collet and spindle bore.

Check for wear or deformation in the collet.

Lubricate lightly if recommended by the manufacturer.

4. Use High-Quality Materials

Collets made from hardened alloy steel or high-precision spring steel offer superior rigidity and longevity. Quality collets maintain consistent grip, even under high-speed rotation.

5. Apply Consistent Torque

When tightening collets, use the recommended torque specifications. Over-tightening can deform the collet, while under-tightening reduces clamping strength.

6. Minimize Tool Overhang

Excessive tool extension from the collet increases deflection, reducing accuracy. Keep tools as close to the spindle as possible while maintaining operational clearance.

Benefits of Optimized Collet Usage

Higher Machining Precision – Reduced runout ensures consistent tolerances.

Extended Tool Life – Secure gripping minimizes vibration and wear.

Improved Surface Finish – Stable tools produce smoother parts.

Increased Productivity – Reduced errors and tool changes save time.

Conclusion

Optimizing CNC machining accuracy starts with the right collet and proper usage. By selecting the appropriate type, matching tool shanks, maintaining collets, and following best practices for setup, manufacturers can achieve precise, repeatable results.

Investing in high-quality collets and understanding their proper use is a small step that yields significant improvements in part quality, tool life, and production efficiency.
