Choosing CNC Tool Holders for High-Speed Machining

High-speed machining (HSM) pushes CNC systems to their limits—spindle speeds increase, cycle times shrink, and even small sources of instability can ruin surface finish or tool life. In this environment, the tool holder is not just a connection between spindle and tool; it becomes a critical factor in accuracy, balance, and overall machining performance.

Selecting the right CNC tool holder for high-speed applications can significantly improve productivity, reduce vibration, and ensure consistent part quality.

Why Tool Holders Matter in High-Speed Machining

At elevated spindle speeds, centrifugal forces amplify even the smallest imbalance or misalignment. A poorly chosen tool holder can lead to:

Increased vibration and chatter

Premature tool wear or breakage

Poor surface finish

Reduced spindle life

On the other hand, a high-quality, properly matched tool holder enhances rigidity, maintains precision, and supports stable cutting conditions.

Key Factors to Consider When Choosing CNC Tool Holders

1. Balance Quality (G-Grade Rating)

Balance is one of the most critical parameters in high-speed machining. Tool holders should be dynamically balanced to minimize vibration.

G2.5 @ 25,000 RPM or higher is typically recommended for HSM

Poor balance leads to spindle stress and inconsistent machining results

Pre-balanced holders or systems designed for high RPM environments are essential for stable operation.

2. Runout Accuracy

Runout directly affects cutting precision and surface finish. High-speed machining demands extremely low runout to ensure even cutting forces.

≤ 3μm runout for finishing operations

Lower runout extends tool life and improves dimensional accuracy

Precision grinding and high-quality manufacturing processes are key indicators of a reliable holder.

3. Clamping Technology

Different clamping systems offer varying levels of precision, rigidity, and damping:

Shrink Fit Tool Holders

Excellent concentricity and rigidity

Ideal for ultra-high-speed and finishing applications

Requires heating equipment for tool changes

Hydraulic Tool Holders

Superior vibration damping

Great for fine surface finishes

Slightly less rigid than shrink fit

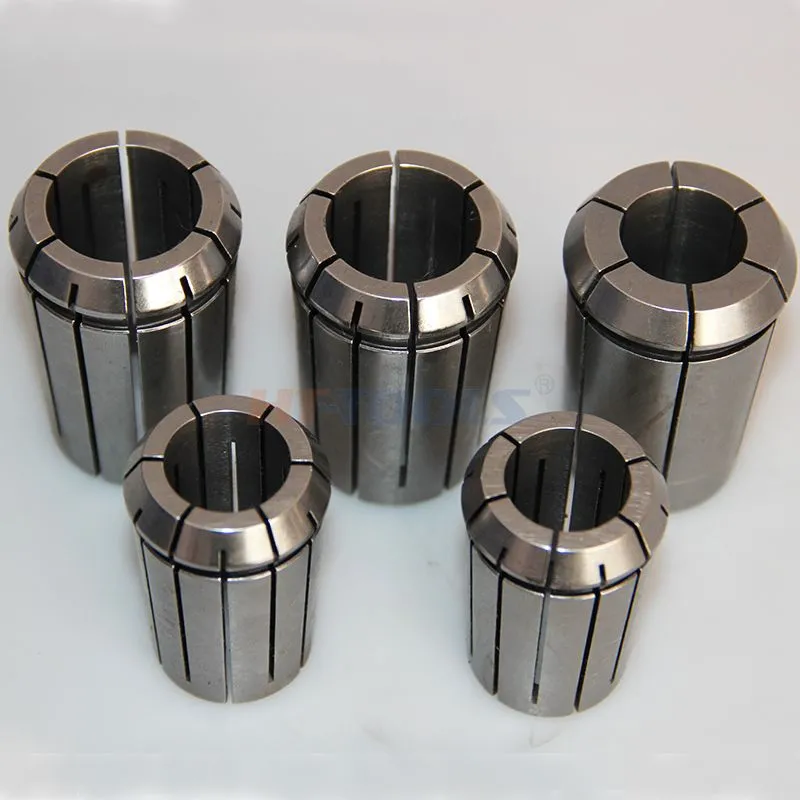

Collet (ER) Holders

Versatile and cost-effective

Suitable for general-purpose machining

Less precise at very high speeds

Choosing the right clamping method depends on your machining priorities—speed, finish, or flexibility.

4. Rigidity and Tool Overhang

Tool holder rigidity is crucial for minimizing deflection under cutting forces. At high speeds, even small deflections can lead to chatter.

Use shorter gauge lengths whenever possible

Select holders designed for heavy-duty or high-speed applications

Reducing tool overhang improves stability and enhances machining accuracy.

5. Vibration Damping Capability

High-speed machining often introduces harmonic vibrations. Tool holders with damping characteristics help absorb these forces.

Hydraulic holders excel in vibration control

Balanced shrink-fit systems also reduce dynamic instability

Better damping leads to smoother cutting and improved surface quality.

6. Interface Compatibility (Spindle Connection)

Ensure the tool holder matches your machine spindle interface, such as:

HSK (Hollow Shank Taper): Preferred for high-speed machining due to dual-contact design

BT/CAT: Common in many CNC machines but may be less stable at very high RPMs

HSK systems provide better rigidity and accuracy under high-speed conditions.

Best Practices for High-Speed Tool Holder Performance

To get the most out of your tool holders:

Regularly check and maintain balance and cleanliness

Avoid mixing components from different systems

Use precision collets and nuts where applicable

Monitor wear and replace damaged holders promptly

Ensure proper tightening torque to avoid imbalance

Consistent maintenance is just as important as initial selection.

Common Mistakes to Avoid

Many machining issues can be traced back to improper tool holder selection or usage:

Using general-purpose holders for high-speed applications

Ignoring balance requirements

Excessive tool stick-out

Reusing worn or damaged holders

Poor cleaning leading to runout errors

Avoiding these mistakes can dramatically improve machining outcomes.

Applications That Demand High-Speed Tool Holders

High-speed tool holders are widely used in industries where precision and efficiency are critical:

Aerospace components with tight tolerances

Mold and die manufacturing requiring fine surface finishes

Automotive parts with high production volumes

Electronics and precision engineering

In these sectors, optimized tool holding systems directly contribute to competitive advantage.

Conclusion

Choosing the right CNC tool holder for high-speed machining is a strategic decision that impacts productivity, tool life, and part quality. By focusing on balance, runout, clamping method, and rigidity, manufacturers can achieve stable, high-performance machining even at extreme spindle speeds.

Investing in high-quality tool holders—and maintaining them properly—ensures that your CNC machines operate at their full potential while consistently delivering superior results.
