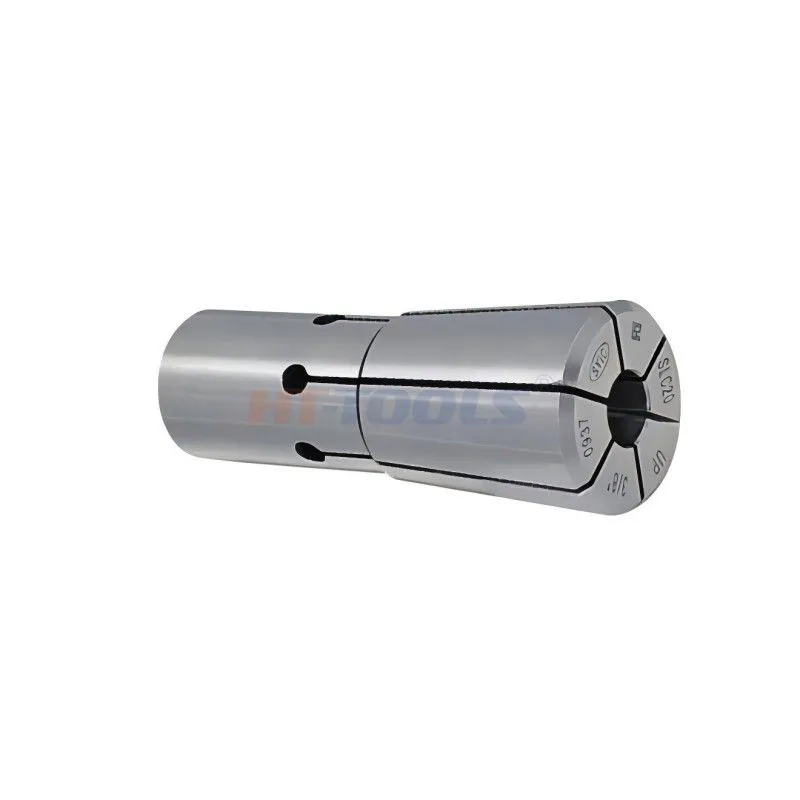

Choosing CNC Machine Collets for High-Speed Machining

A collet that performs adequately at moderate spindle speeds may create excessive vibration, unstable cutting or premature tool wear when operated at higher RPM. Even a small amount of tool runout can cause uneven cutting-edge engagement, especially when using small-diameter end mills, drills and finishing tools.

Choosing the right CNC machine collet is therefore not simply a matter of matching the tool diameter. Manufacturers must also evaluate runout accuracy, dynamic balance, clamping force, collet condition, tool projection and coolant delivery.

This guide explains how to select CNC machine collets for reliable high-speed machining.

Why Collet Selection Matters at High Spindle Speeds

A CNC collet is responsible for centering and gripping the cutting tool inside the collet chuck. Together, the chuck body, collet, nut and cutting tool form a complete rotating assembly.

At lower spindle speeds, a small amount of imbalance or runout may not immediately cause visible problems. As spindle speed increases, however, centrifugal forces and cutting vibrations become more influential.

An unsuitable or poorly maintained collet can lead to:

• Uneven cutting-edge loading

• Poor surface finish

• Reduced dimensional accuracy

• Chatter and vibration

• Accelerated tool wear

• Cutting-tool pullout

• Excessive spindle bearing load

• Increased scrap rates

• Unplanned machine downtime

Tool runout is particularly important in drilling, reaming and small-diameter milling because it directly affects process security, component quality, tool life and surface finish.

High-speed machining therefore requires the complete toolholding assembly—not just the collet—to be selected, installed and maintained as a precision system.

The Most Important Factors When Choosing CNC Collets

1. Runout Accuracy

Runout describes how far the cutting tool deviates from its intended rotational centerline. It is normally measured using a dial test indicator at the collet nose or at a specified distance from the collet.

Low runout helps distribute the cutting load more evenly across all flutes of the tool.

For example, when a four-flute end mill has excessive runout, one cutting edge may remove more material than the others. That heavily loaded flute can wear or chip prematurely, while the remaining flutes contribute less effectively to the cut.

This problem becomes more severe with:

• Micro end mills

• Small drills

• Reamers

• Finishing tools

• Long-reach tools

• High spindle speeds

• Tight dimensional tolerances

High-precision collet chuck systems can provide runout values around 0.003 mm or lower when the chuck, collet, nut and cutting tool are properly matched and assembled. Certain specialized systems are rated for even lower runout at the collet nose.

However, buyers should always check where the manufacturer measures runout. A value measured at the collet nose cannot be directly compared with a value measured at three, four or five times the tool diameter.

When reviewing collet specifications, ask:

• What is the guaranteed runout?

• Where is the runout measured?

• Is the guarantee for the collet alone or the complete chuck system?

• Does the specification apply across the full clamping range?

• Is every collet inspected individually?

For high-speed finishing and micro-machining, select the lowest practical system runout rather than comparing only the purchase price.

2. Dynamic Balance

Static runout and dynamic balance are related but different.

Runout describes concentricity, while balance describes how evenly mass is distributed around the rotational axis. A holder may show acceptable runout at rest but still generate vibration when rotating at high speed because of imbalance.

Balance quality is especially important when operating:

• Above approximately 15,000–20,000 RPM

• With long tool projection

• With small-diameter cutting tools

• On high-precision spindles

• During mold, aerospace or medical-component machining

• In operations requiring excellent surface finish

Many high-speed toolholders are supplied with ratings such as G2.5 at a specified RPM. However, the balance grade alone is not enough. Buyers should also examine the maximum allowable residual unbalance and the speed at which the assembly was balanced.

Manufacturers of balancing equipment recommend balancing the complete rotating setup, including the toolholder, pull stud, collet, nut and cutting tool, rather than considering each component separately.

Before purchasing a collet system, confirm:

• Maximum rated spindle speed

• Balance grade and corresponding RPM

• Whether the nut is balanced

• Whether the complete holder can be fine-balanced

• Whether balancing screws or adjustment features are available

• Whether the installed cutting tool changes the balance condition

Never assume that a standard collet nut is automatically suitable for high-speed machining.

3. Clamping Force

The collet must generate enough radial clamping force to prevent the cutting tool from slipping or pulling out under cutting loads.

Insufficient clamping force may cause:

• Axial tool movement

• Inconsistent cutting depth

• Damaged workpieces

• Chatter

• Tool breakage

• Safety risks

High-speed finishing often produces lower cutting forces than heavy roughing, but tool pullout can still occur during aggressive slotting, ramping or machining with high helix-angle end mills.

Clamping force depends on several factors:

• Collet design

• Collet size

• Nut design

• Nut coating

• Tightening torque

• Tool-shank diameter

• Condition of the threads

• Cleanliness of the contact surfaces

• Amount of collet collapse

A torque wrench should be used to tighten the collet nut according to the holder manufacturer’s specifications. Under-tightening reduces holding power, while uncontrolled over-tightening can damage the collet, nut or chuck and may produce inconsistent runout.

For demanding milling applications, consider a high-clamping-force collet system or a holder with a mechanical pullout-prevention feature.

4. Collet Clamping Range

A common purchasing mistake is using one collet across the maximum possible collapse range simply because the tool shank technically fits.

Although standard ER collets provide a flexible clamping range, the best accuracy and gripping performance are generally achieved when the nominal collet size is close to the actual tool-shank diameter.

For example, a precision 10 mm tool should ideally be held in a collet intended specifically for 10 mm rather than in a much larger collet compressed to its lower limit.

Excessive collapse can contribute to:

• Uneven collet deformation

• Reduced contact with the tool shank

• Higher runout

• Lower repeatability

• Faster collet wear

• Reduced clamping force

For high-speed and precision machining, use dedicated nominal-size collets whenever practical. A smaller collapse range may require a larger collet inventory, but it can improve machining consistency and tool life.

5. Tool-Shank Diameter and Tolerance

The tool shank must match the collet’s specified diameter and tolerance.

Before installation, inspect the shank for:

• Burrs

• Scratches

• Corrosion

• Coating buildup

• Weldon flats

• Dirt or oil contamination

• Diameter variation

A collet intended for a round cylindrical shank may not grip a damaged or heavily relieved shank uniformly.

For maximum precision, use cutting tools with accurately ground cylindrical shanks. Avoid clamping directly over transition radii, flutes, identification markings or damaged areas.

The tool should also be inserted deeply enough to achieve full contact across the collet’s effective clamping length. Clamping only a short section of the shank reduces stability and may damage the collet.

6. Collet and Chuck Compatibility

Not all collets with similar dimensions are interchangeable.

The collet, chuck body and nut should be treated as a matched system. Differences in taper geometry, thread quality, nut design and contact surfaces can influence runout and clamping force.

For example, premium ER-style systems may use:

• High-precision collets

• Smooth or slot-free nuts

• Bearing nuts

• Low-friction coatings

• Precision-ground chuck tapers

• Improved thread geometry

• High-speed sealing nuts

Some high-speed collet chuck manufacturers design and balance the body, collet, nut and wrench specifically as an integrated system.

When sourcing replacement collets, verify:

• Collet series

• Nominal diameter

• Collapse range

• Chuck taper

• Nut type

• Maximum speed

• Runout class

• Coolant compatibility

• Manufacturer interchangeability

Mixing low-cost collets with a high-precision chuck may prevent the system from achieving its advertised accuracy.

Common Collet Systems for High-Speed Machining

ER Collets

ER collets are among the most widely used CNC toolholding solutions because they offer a broad clamping range and support many operations.

They can be used for:

• Drilling

• Reaming

• Tapping

• Light and medium milling

• Engraving

• General machining

The advantages of ER collets include:

• Broad tool-diameter coverage

• Easy availability

• Relatively low replacement cost

• Compatibility with many spindle interfaces

• Simple tool changes

• Support for sealed and coolant-through configurations

Standard ER systems are suitable for many machining operations, but high-speed applications should use precision-ground collets, balanced nuts and high-quality chuck bodies.

A general-purpose ER collet should not automatically be considered a high-speed precision collet.

High-Precision ER Collets

High-precision ER collets are manufactured and inspected to tighter concentricity tolerances than general-purpose collets.

They are suitable for:

• Finish milling

• Precision drilling

• Reaming

• Mold machining

• Medical-component manufacturing

• Aerospace parts

• Small-diameter tools

These collets cost more but can reduce tool wear, improve surface quality and increase process consistency.

When purchasing, compare the complete system runout rather than the collet’s individual accuracy alone.

Micro Collet Systems

Micro collet systems are designed for small cutting tools and restricted machining areas.

Typical applications include:

• PCB machining

• Micro drilling

• Dental components

• Medical instruments

• Small molds

• Electronic components

• Precision engraving

Their slim external profile can reduce interference with workpieces and fixtures. Some micro collet chucks are designed for spindle speeds of up to 50,000 RPM, depending on the specific holder, taper and tool configuration.

Because micro tools have limited bending strength, very low runout and minimal projection are essential.

Sealed and Coolant-Through Collets

Sealed collets and sealing nuts prevent coolant from escaping through the collet slots. They direct coolant through the cutting tool when internal coolant channels are available.

Jet-through systems direct coolant around the tool shank toward the cutting edge.

These systems may improve:

• Chip evacuation

• Cutting-edge cooling

• Hole quality

• Tool life

• Process reliability

• Deep-hole machining performance

The appropriate system depends on whether the cutting tool requires through-tool coolant or external coolant directed toward the cutting zone.

Confirm the maximum coolant pressure as well as the maximum spindle speed before selection.

CNC Collets Compared with Alternative Toolholding Systems

Collets are versatile, but they are not automatically the best choice for every high-speed operation.

Hydraulic holders may provide excellent vibration damping and runout below 0.003 mm in suitable applications, while shrink-fit holders are often selected for their slim geometry and high-speed balance characteristics.

The correct choice depends on whether flexibility, accuracy, damping, accessibility or pullout resistance is the primary requirement.

How Tool Projection Affects Collet Performance

Tool projection is the distance from the holder face to the cutting edge.

A longer projection increases the bending moment acting on the tool and reduces system rigidity. It can also magnify the effect of runout and imbalance.

Excessive projection may cause:

• Chatter

• Tool deflection

• Poor wall straightness

• Dimensional variation

• Shorter tool life

• Reduced allowable cutting parameters

For high-speed machining, use the shortest tool and holder combination that provides sufficient access to the workpiece.

However, avoid inserting the tool so deeply that the collet clamps over the flute transition or an uneven shank area.

When long reach is unavoidable:

• Reduce radial depth of cut

• Use stable toolpaths

• Lower cutting forces

• Select a damped or reinforced holder

• Verify the complete assembly balance

• Inspect runout at the tool tip

• Avoid sudden changes in cutting direction

Step-by-Step Collet Selection Process

Step 1: Identify the Operation

Determine whether the collet will be used for drilling, reaming, tapping, finish milling, roughing or micro-machining.

Finishing and micro-machining prioritize runout accuracy, while rough milling requires greater clamping force and pullout resistance.

Step 2: Confirm the Spindle Interface

Identify the machine interface, such as:

• BT

• CAT

• HSK

• SK

• PSC

• Straight shank

The holder must match the machine spindle and its maximum operating speed.

Step 3: Record the Maximum RPM

Do not select a holder based only on the machine’s maximum spindle speed.

Calculate the actual required RPM for the tool diameter and cutting speed, and make sure the chuck, collet, nut, pull stud and cutting tool are all approved for that speed.

The lowest-rated component determines the safe operating limit of the assembly.

Step 4: Define the Required Runout

Set a realistic runout requirement based on:

• Tool diameter

• Hole tolerance

• Surface-finish requirement

• Tool length

• Workpiece value

• Required tool life

Micro tools and finishing tools normally require tighter runout control than larger roughing tools.

Step 5: Evaluate Cutting Forces

For heavy milling, slotting or high-feed operations, prioritize clamping force and tool pullout prevention.

For light finishing, prioritize balance, runout and low interference.

Step 6: Select the Correct Collet Size

Choose a nominal collet diameter as close as possible to the actual tool-shank diameter.

Avoid using the extreme ends of the collet’s collapse range for precision work.

Step 7: Choose the Nut and Coolant Configuration

Determine whether the operation needs:

• Standard nut

• High-speed balanced nut

• Bearing nut

• Sealed nut

• Through-tool coolant

• Peripheral jet coolant

The nut is part of the rotating mass and can materially affect balance and clamping performance.

Step 8: Verify the Complete Assembly

After installation, measure runout at:

• The tool shank near the collet

• A specified distance from the collet

• The cutting end when practical

For critical high-speed applications, dynamically balance the complete assembly.

Correct Collet Installation Procedure

Even a high-precision collet will perform poorly if installed incorrectly.

Use the following procedure:

1. Clean the chuck taper, collet, nut and cutting-tool shank.

2. Inspect all surfaces for wear, burrs or corrosion.

3. Snap the collet into the nut before threading the nut onto the chuck.

4. Insert the cutting tool to the correct depth.

5. Confirm that the collet grips only the cylindrical shank.

6. Mount the holder in a suitable tightening fixture.

7. Tighten the nut using a calibrated torque wrench.

8. Measure runout using a certified test bar or cutting tool.

9. Verify balance before running at very high spindle speed.

10. Perform a controlled trial cut before full production.

Using a tightening stand and torque wrench helps maintain repeatable clamping performance and reduces the risk of damaging the collet system.

Collet Maintenance for Consistent High-Speed Performance

Collets are precision wear components. They should be inspected and replaced as part of a preventive maintenance program.

Clean Collets Regularly

Coolant residue, fine chips and dust can become trapped between the collet and chuck taper. Even very small particles can disturb concentricity.

Clean:

• Collet slots

• Internal bore

• External taper

• Chuck taper

• Nut threads

• Tool shank

• Spindle interface

Use lint-free cloths, suitable brushes and approved cleaning products.

Inspect for Wear

Replace collets that show:

• Cracks

• Deformed slots

• Fretting marks

• Corrosion

• Bell-mouthed bores

• Damaged extraction grooves

• Loss of spring action

• Persistent excessive runout

A worn collet should not be corrected by applying additional tightening torque.

Rotate Collet Inventory

High-use collet sizes wear faster than rarely used sizes. Track usage and inspection results, particularly for collets used in lights-out production or expensive component machining.

Monitor Runout Trends

Measure and record runout periodically. A gradual increase may indicate wear in the collet, nut, chuck, spindle taper or cutting tool.

Runout monitoring is more effective than waiting until surface-quality problems or tool failures appear.

Common Collet Selection Mistakes

Choosing Only by Price

A low-cost collet may reduce initial tooling expenditure but increase scrap, tool consumption and machine downtime.

Evaluate cost per finished part rather than purchase price alone.

Ignoring the Collet Nut

The nut influences balance, friction, clamping force and concentricity. A damaged or unsuitable nut can prevent a precision collet from performing correctly.

Using Excessive Tool Projection

Long projection reduces stiffness and magnifies vibration. Use the shortest practical assembly.

Operating Above the Rated Speed

Never exceed the speed rating of the holder, collet, nut or cutting tool.

Tightening Without a Torque Wrench

Hand-tightening produces inconsistent clamping force. Cheater bars can create uncontrolled over-torque and damage precision components.

Mixing Incompatible Components

Combining collets, nuts and chuck bodies from different systems may change the contact geometry and invalidate runout or speed guarantees.

Failing to Balance the Complete Assembly

A balanced holder can become unbalanced after installing the nut, collet, tool or pull stud.

Procurement Checklist for High-Speed CNC Collets

Before placing a bulk order, CNC machine shops and industrial buyers should request the following information:

• Collet type and standard

• Available diameter range

• Metric and inch sizes

• Maximum collapse range

• Guaranteed runout

• Runout measurement position

• Recommended tightening torque

• Maximum spindle speed

• Balance grade

• Compatible chuck and nut models

• Tool-shank tolerance

• Coolant sealing options

• Maximum coolant pressure

• Material and heat-treatment information

• Individual inspection method

• Traceability or batch identification

• Replacement recommendations

• Packaging and corrosion protection

• Sample availability

• OEM or customized size capability

For a production line, purchasing the chuck, collet, nut, torque wrench and inspection accessories as a coordinated system can reduce setup variation between operators.

Frequently Asked Questions

What is the best collet for high-speed CNC machining?

A high-precision, dynamically balanced collet system with low guaranteed runout is normally the best choice. The exact system depends on tool diameter, operation, cutting force, spindle interface and maximum RPM.

Are standard ER collets suitable for high-speed machining?

They may be suitable when used within their rated speed and accuracy limits. For demanding high-speed finishing or micro-machining, precision ER collets and balanced high-speed nuts are generally more appropriate.

How much runout is acceptable?

The acceptable value depends on the tool diameter and operation. Larger tools used for general machining can tolerate more runout than micro drills, reamers and finishing end mills. For precision applications, complete assembly runout of approximately 0.003 mm or better is commonly targeted.

Does a balanced holder eliminate runout?

No. Balance and runout are different conditions. A holder can be well balanced but have poor concentricity, or it can have low static runout but generate vibration because the complete assembly is unbalanced.

Should the complete tool assembly be balanced?

For high spindle speeds and critical surface-finish applications, balancing the holder, pull stud, nut, collet and cutting tool as one assembly is recommended.

Can one collet hold several tool diameters?

Many ER collets have a specified collapse range. However, using a nominal collet size close to the actual tool diameter generally provides better accuracy and consistent clamping.

How often should CNC collets be replaced?

There is no universal replacement interval. Replacement depends on operating hours, tightening cycles, spindle speed, contamination, cutting loads and maintenance quality. Collets should be replaced when runout increases or physical wear is detected.

Why does the tool keep pulling out of the collet?

Possible causes include insufficient torque, dirty surfaces, excessive cutting force, an incorrect collet size, worn components, inadequate insertion depth or an unsuitable holder design.

Can a Weldon-shank tool be held in a standard collet?

Some collets can physically grip a shank with a flat, but the flat may reduce uniform contact and holding performance. For demanding milling, use a holder or locking system specifically approved for the shank design.

What accessories are required for proper collet installation?

A suitable tightening fixture, calibrated torque wrench, cleaning tools, test bar and runout indicator are recommended. High-speed applications may also require balancing equipment.

Conclusion

Choosing CNC machine collets for high-speed machining requires more than matching the collet diameter to the cutting-tool shank.

The most important selection factors are runout accuracy, dynamic balance, clamping force, tool projection, collet size, nut design and coolant configuration. The collet must also be compatible with the chuck body, spindle interface and actual cutting operation.

For precision finishing and small-diameter tools, prioritize low runout and balanced components. For aggressive milling, combine accuracy with sufficient gripping force and pullout resistance. In every case, clean installation, controlled tightening and regular inspection are essential.

A properly selected and maintained collet system can improve surface finish, extend cutting-tool life, reduce scrap and allow the CNC machine to operate reliably at higher spindle speeds.
