ISO tool holders for wooden machine

Sep. 16, 2026

ISO tool holders for wooden machine

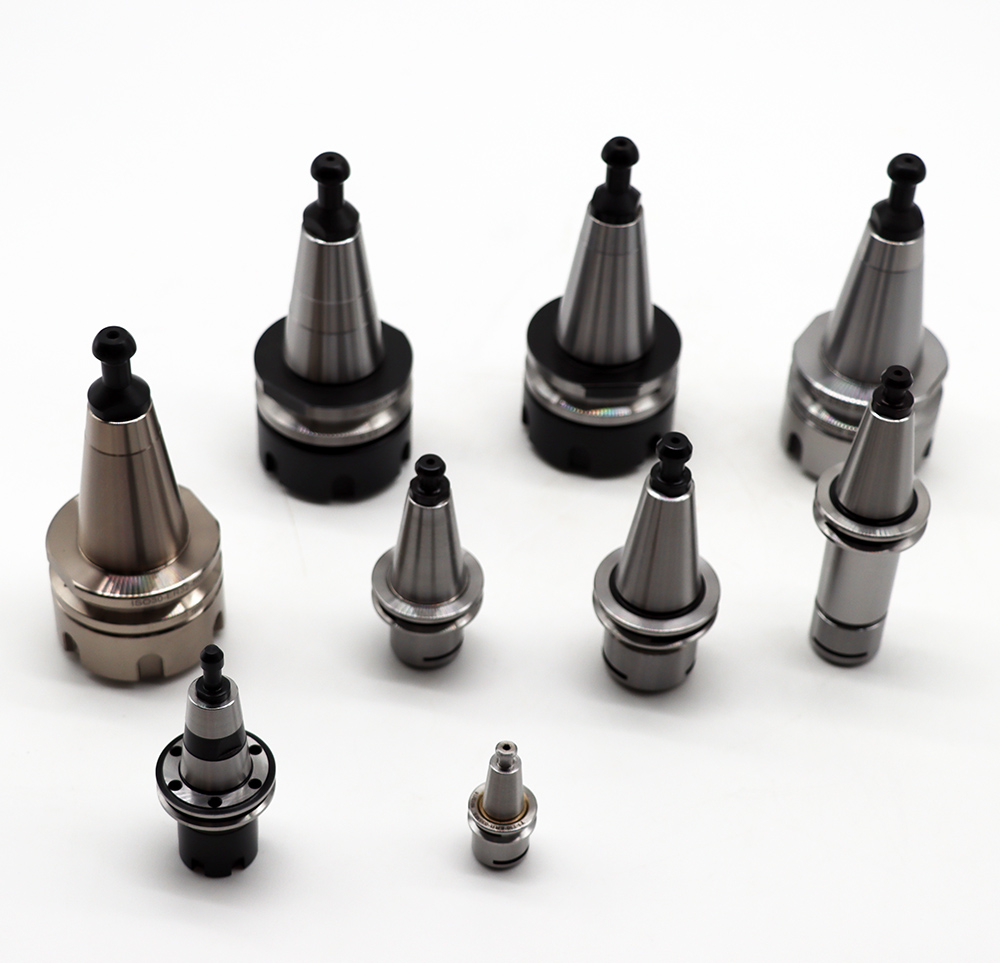

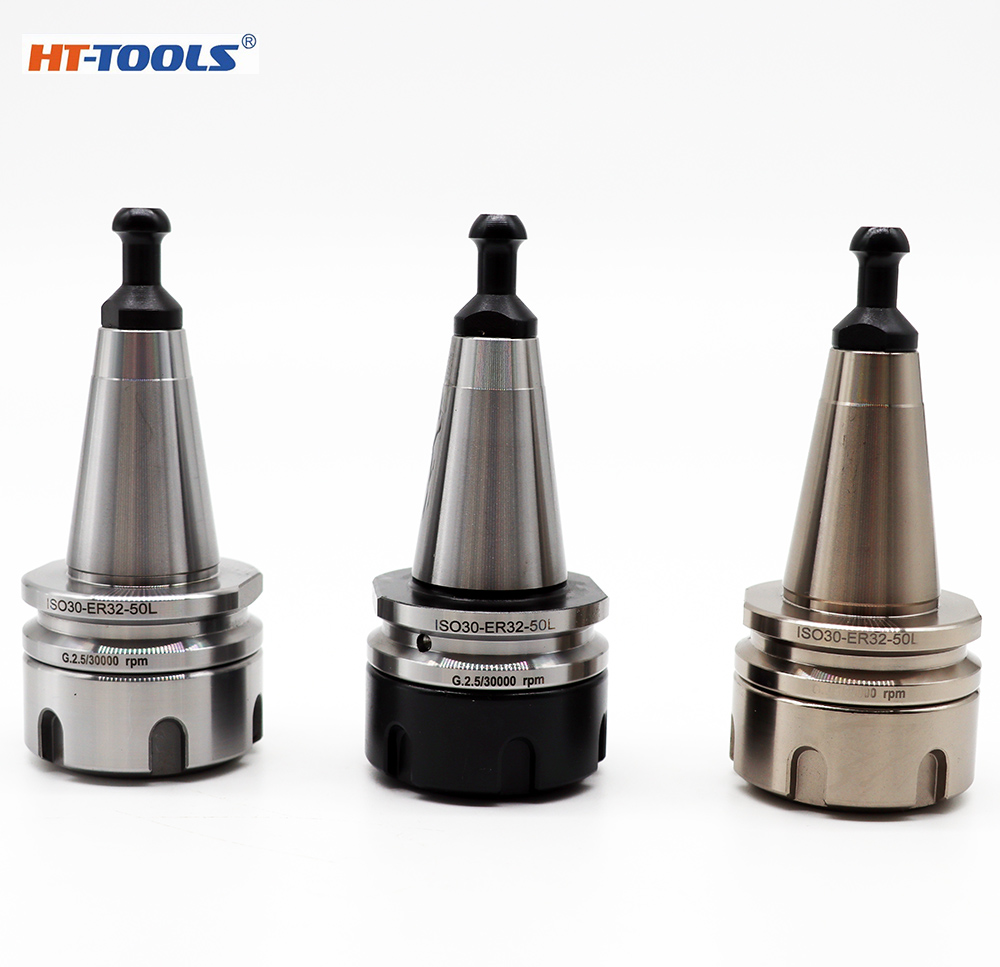

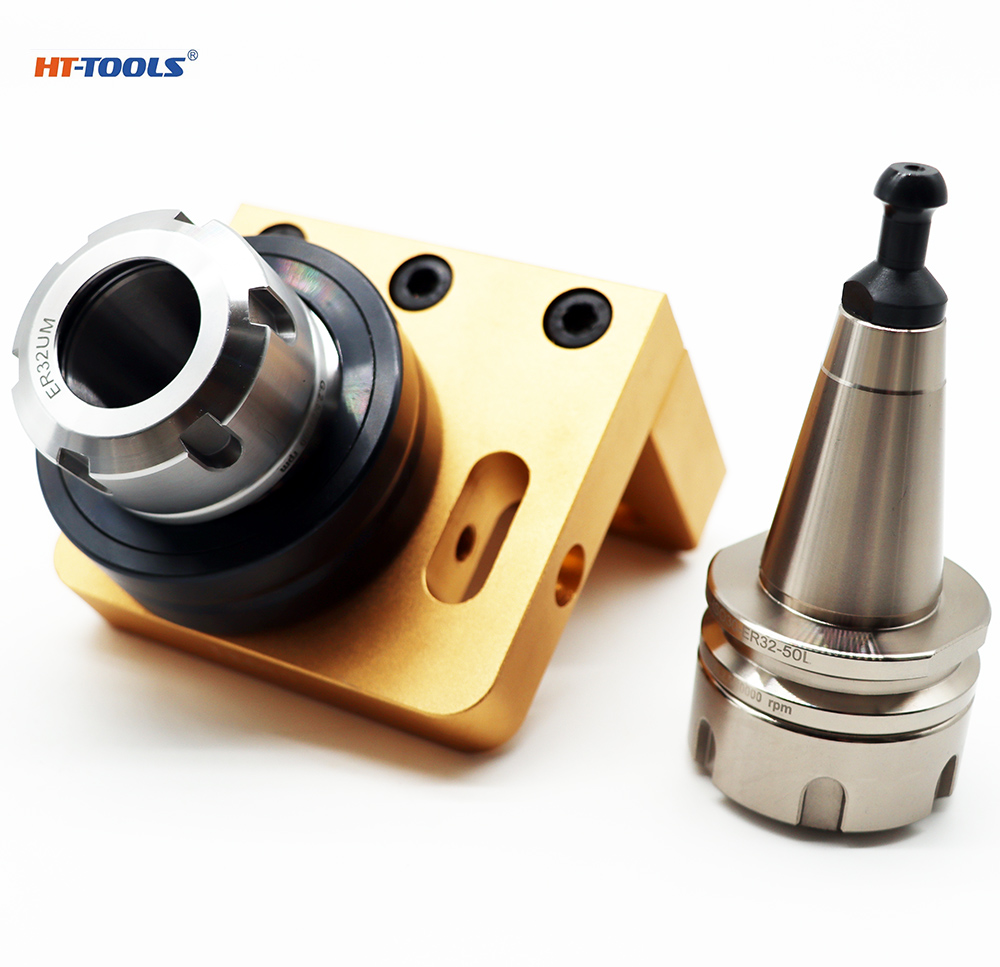

     ISO woodworking toolholders are standard automatic tool change holders for CNC wood cutters and engraving machines, available in ISO20, ISO25 and ISO30. Built with standard 7:24 taper shank and G2.5 dynamic balancing, they deliver high precision and vibration resistance. It reduces tool chatter and panel chipping during high-speed cutting, suitable for MDF, plywood, solid wood and acrylic. Widely used for panel furniture nesting, routing and engraving, improving the stability and yield of automated woodworking production.

ISO tool holders for wooden machine

ISO tool holders for wooden machine

ISO tool holders for wooden machine

Q1: What is an ISO woodworking toolholder?

A: ISO woodworking toolholders are specially designed for CNC woodworking machining centers and automatic tool change nesting machines. Featuring a standard ISO 7:24 taper shank, they are available in ISO20, ISO25 and ISO30. They hold cutting tools and enable automatic tool change, serving as key connecting components for panel furniture CNC equipment.

Q2: What is the difference between ISO woodworking toolholders and common BT toolholders for machining centers?

A: ISO woodworking toolholders are lighter and optimized for high-speed, dusty woodworking environments. BT toolholders are heavier and mainly used for metal cutting. ISO woodworking toolholders come with G2.5 dynamic balancing for superior vibration resistance during high-speed routing and nesting.

Q3: What is the typical dynamic balancing grade of ISO woodworking toolholders? What is its function?

A: The factory standard dynamic balancing grade is G2.5. It suppresses vibration at high RPM, prevents tool chatter and panel chipping, reduces spindle load, extends the service life of spindles and cutters, and improves the surface finish of workpieces.

Q4: What materials and machining processes are compatible?

A: Compatible with MDF, plywood, solid wood, acrylic and more. Suitable for nesting, routing, grooving and door profile carving for panel furniture production.

Q5: How to select the right ISO toolholder specification?

A: Select according to the spindle model of your machine. ISO20 for small engravers; ISO25 is widely used on medium-small nesting machines; ISO30 for high-torque woodworking machining centers.
