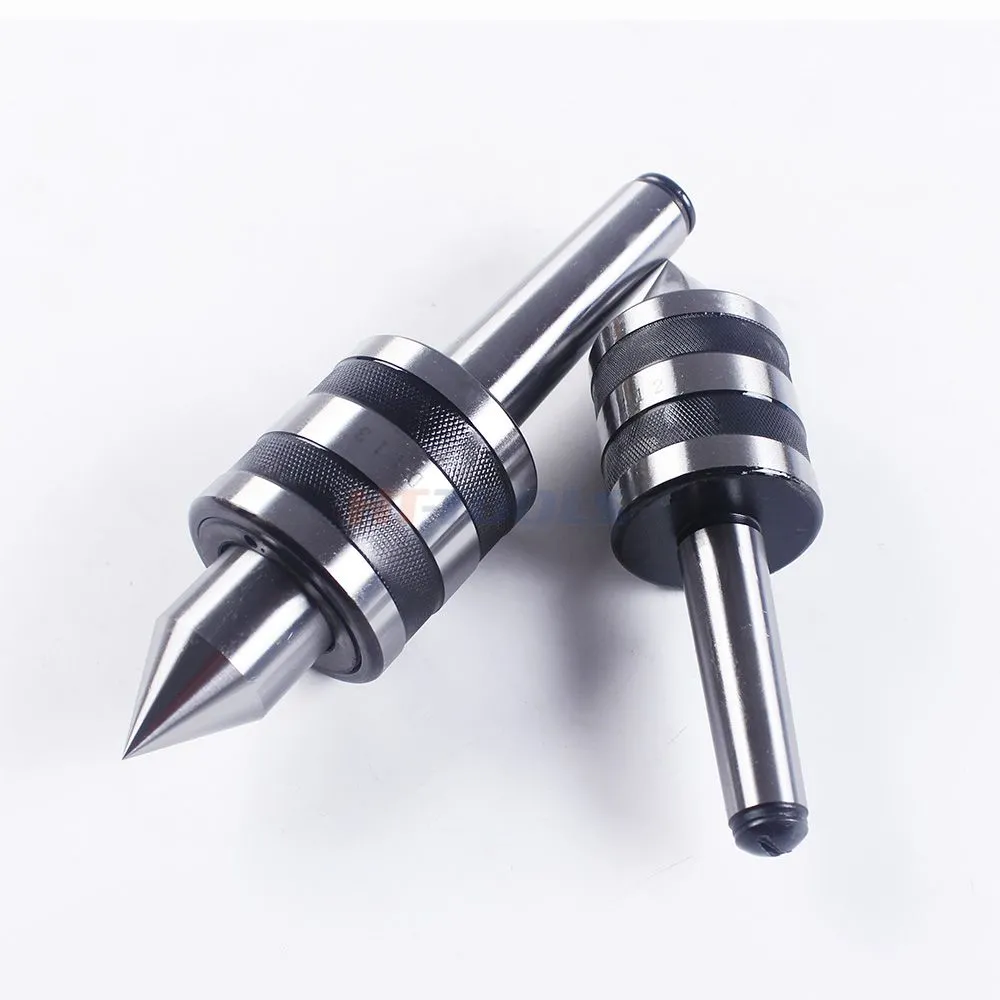

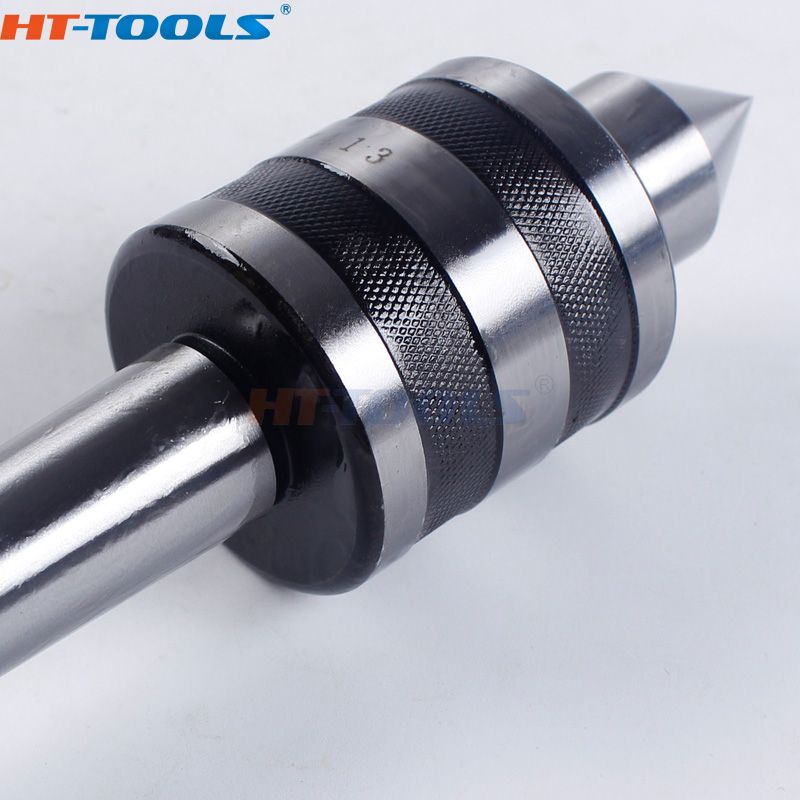

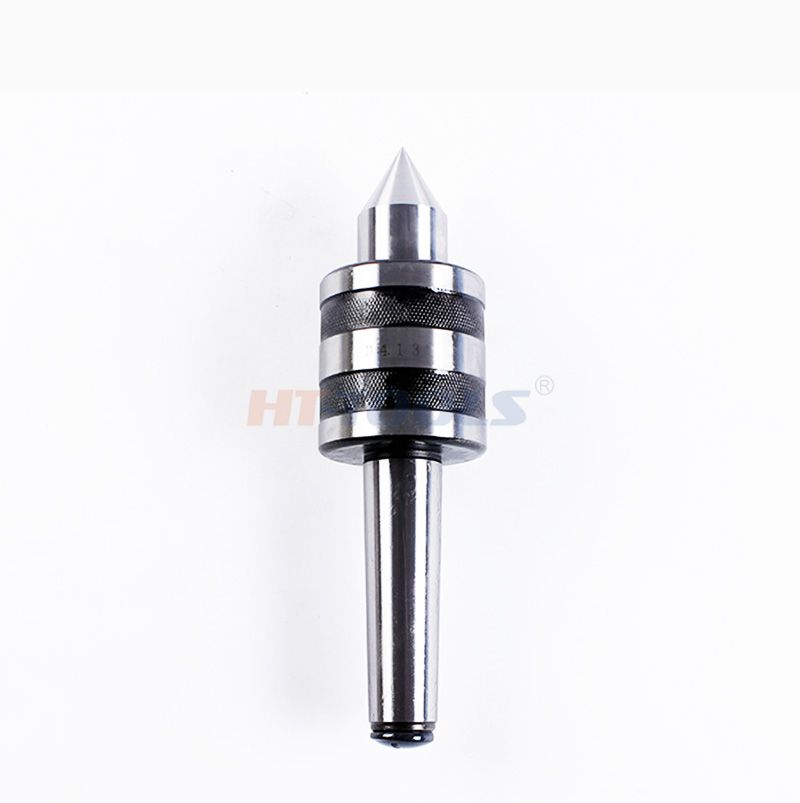

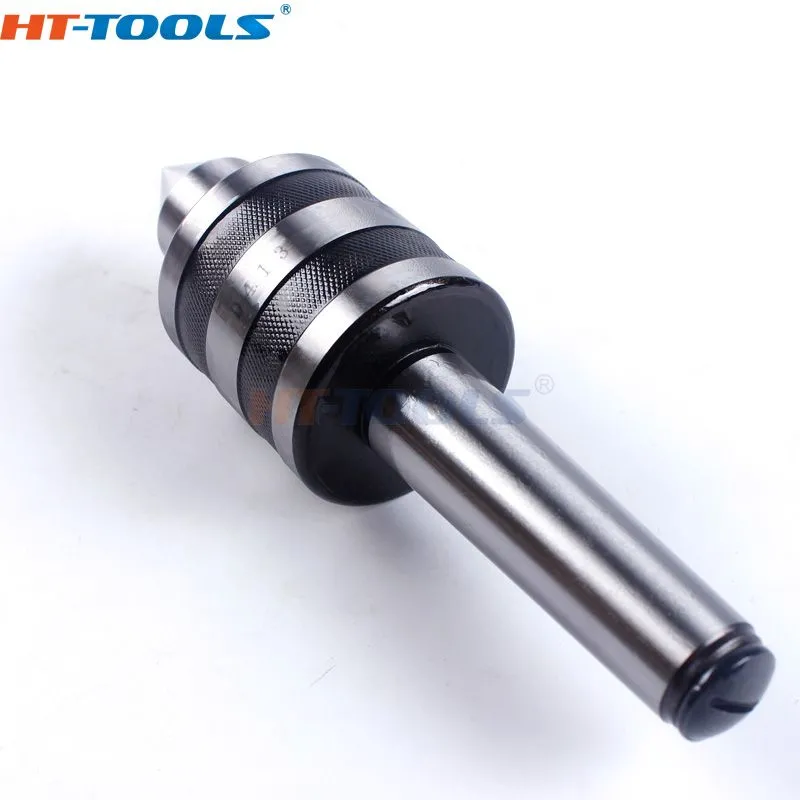

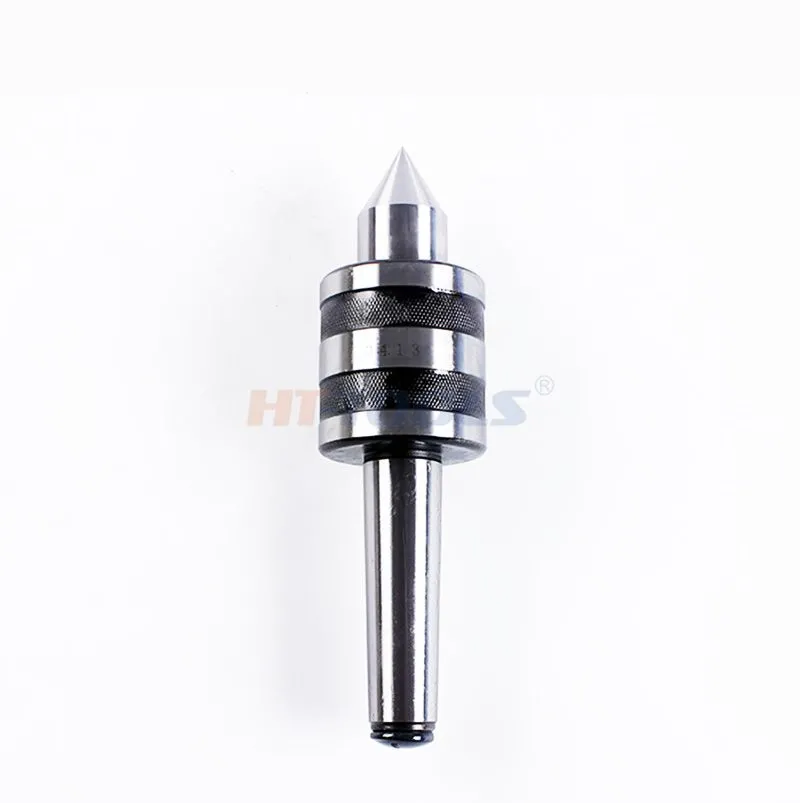

live Center Morse Taper Precision Medium Duty live center
Max load: 660 lbs ; Max speed (RPM): 5,000
Accuracy: 0.000197" ; Center Point: 60 degree.
Made Of Precision Ground Hardened Steel For High Accuracy. Dust And Liquid Proof Seal For Long Service Life. Designed For Medium Speed Medium Load Lathe
Carbide-Tipped Center Point To Achieve High Abrasion Resistance. High Quality Triple Bearing Design
medium-duty-live-center
| Order No. | MS. NO. | L mm | L1 mm | D mm | D1 mm | d mm | N Max Radial Load | （rpm）Max Speed | Wt(kg) | Accuracy(mm) |
| D411 | MS1 | 115 | 20 | 34 | 12.065 | 18 | 900 | 5000 | 0.29 | 0.01 |
| D412 | MS2 | 145 | 26 | 45 | 17.778 | 25 | 1500 | 5000 | 0.70 | 0.01 |
| D413 | MS3 | 170 | 30 | 52 | 23.825 | 28 | 2000 | 4200 | 0.93 | 0.01 |
| D414 | MS4 | 205.7 | 34.7 | 60 | 31.2677 | 32 | 3200 | 3200 | 1.70 | 0.01 |
| D415 | MS5 | 254 | 45 | 77 | 44.399 | 45 | 6300 | 2400 | 3.39 | 0.015 |
| D416 | MS6 | 362 | 68.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.00 | 0.015 |
| D411L | MS1 | 125 | 30 | 34 | 12.065 | 18 | 900 | 5000 | 0.31 | 0.01 |
| D412L | MS2 | 155 | 36 | 45 | 17.78 | 25 | 1500 | 5000 | 0.74 | 0.01 |
| D413L | MS3 | 183 | 43 | 52 | 23.825 | 28 | 2000 | 4200 | 0.99 | 0.01 |
| D414L | MS4 | 222 | 51 | 60 | 31.2677 | 32 | 3200 | 3200 | 1.80 | 0.01 |
| D415L | MS5 | 272 | 63 | 77 | 44.399 | 45 | 6300 | 2400 | 3.62 | 0.015 |
| D416L | MS6 | 382 | 88.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.69 | 0.015 |
Medium-duty bearing structure, balanced load for medium turning
Optional carbide tip for superior wear resistance
Low runout ≤0.005mm, good concentricity for shaft machining
Multi-seal design, dust & coolant resistant, protects inner bearings
Alloy steel body, hardened & tempered for long service life
Morse taper MT2/MT3/MT4/MT5 available
Smooth rotation, less friction & heat buildup
Widely used on CNC lathes & ordinary lathes for shaft workpieces
Q1: What is medium duty live center for?
A1: Support shaft workpieces on lathes for medium-load turning.
Q2: Runout accuracy?
A2: ≤0.005mm.
Q3: Carbide tip available?
A3: Yes, carbide tipped option for longer life.
Q4: Taper sizes?
A4: MT2, MT3, MT4, MT5.
Q5: Waterproof & dustproof?
A5: Yes, multi-seal protects bearings from chips and coolant.
Q6: Suitable for CNC lathe? A6: Yes, fits both CNC and manual lathes.
