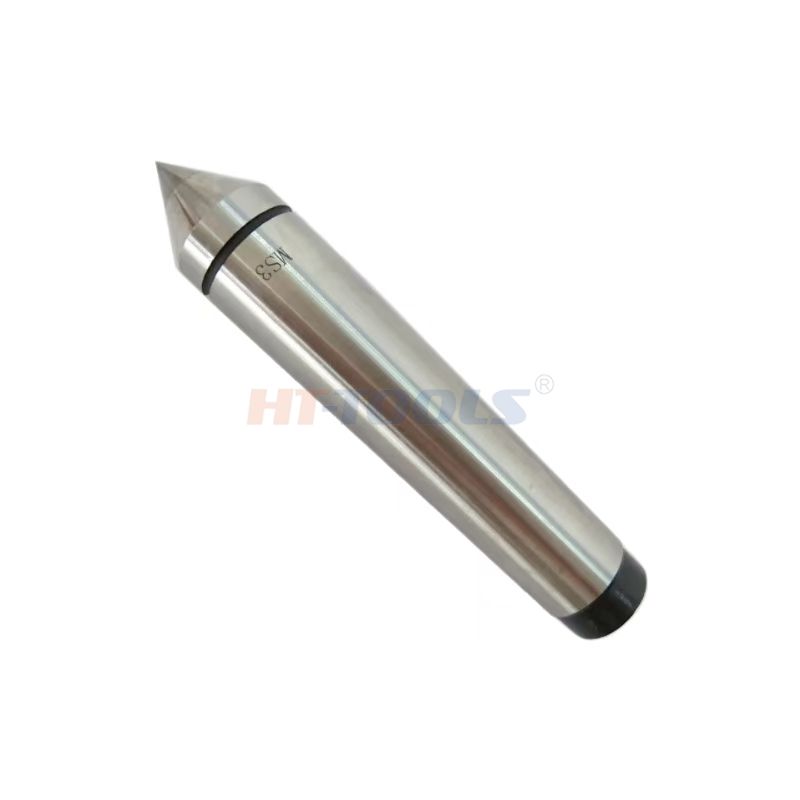

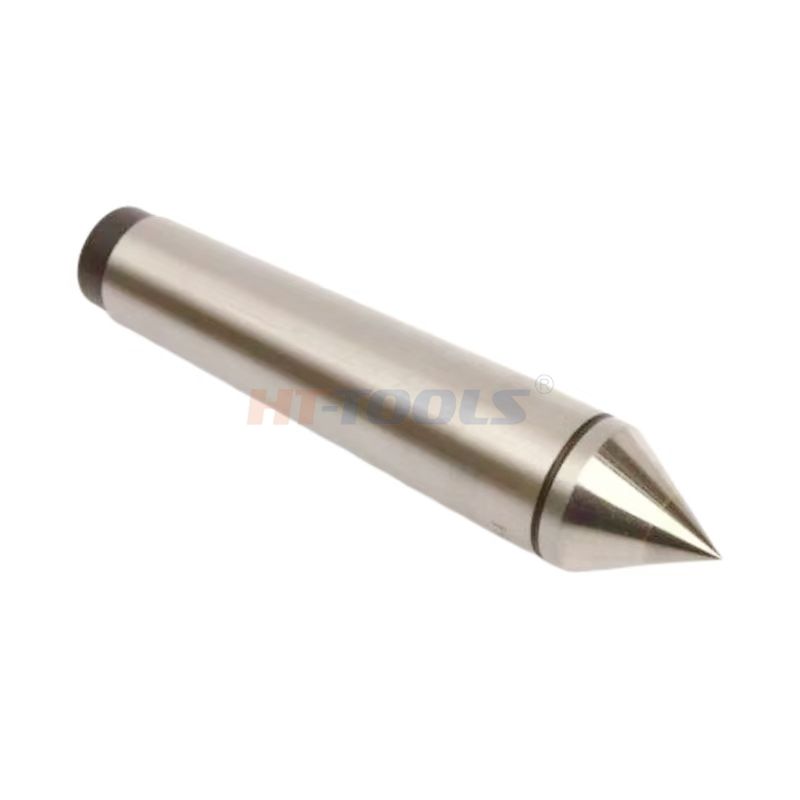

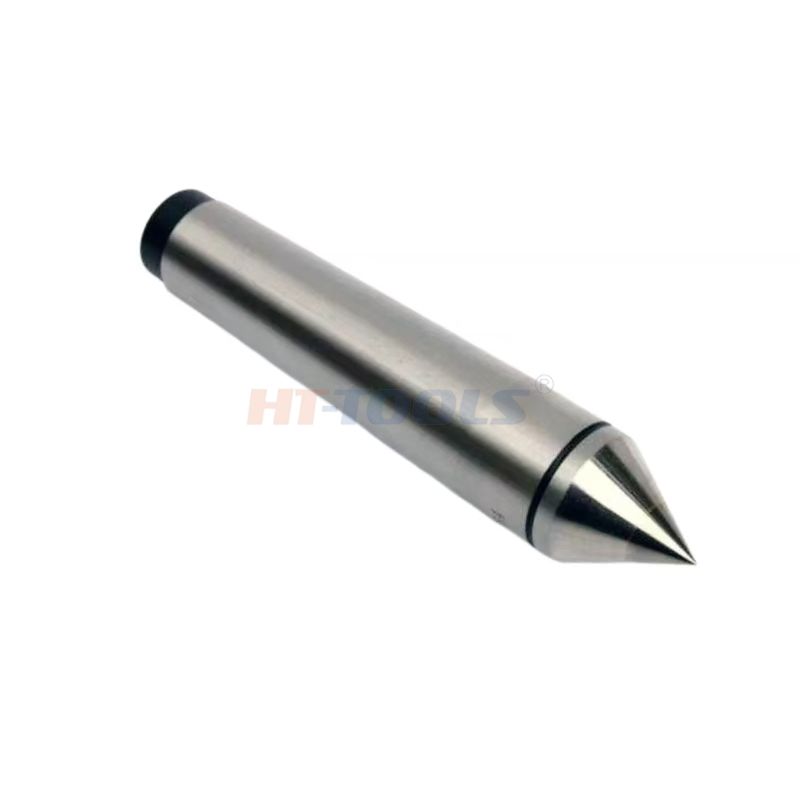

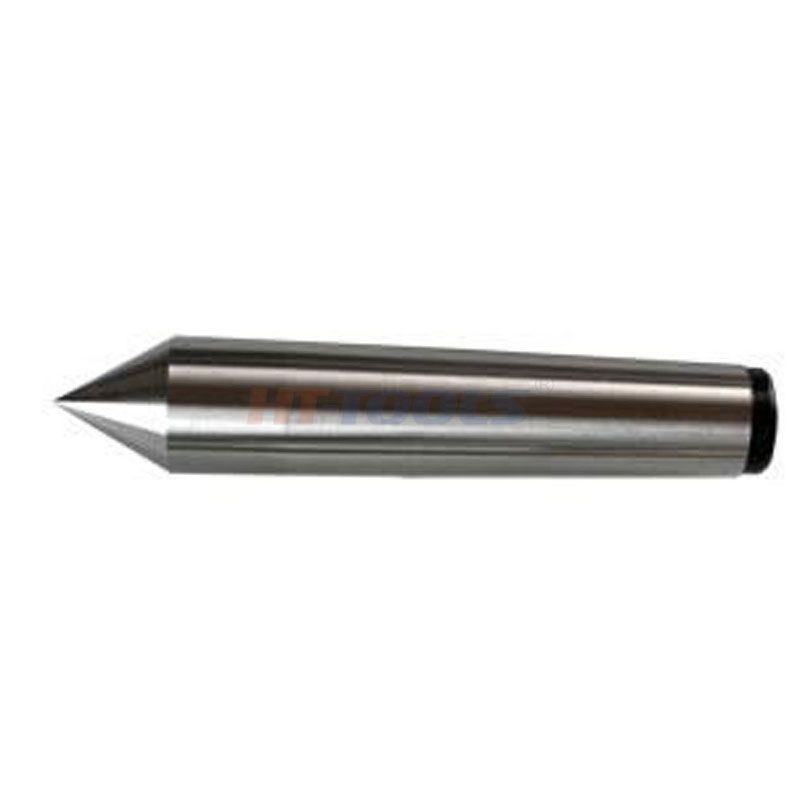

Carbide Center

High Accuracy and Precision: This 0.01 Accuracy carbide center is designed to deliver exceptional precision and accuracy, ensuring reliable performance in various applications. Its high-quality construction guarantees consistent results, making it an ideal choice for users seeking precision.
Durable Material: Crafted from 20CrMnTi material, this product boasts excellent durability and resistance to wear and tear. Its robust construction ensures a long lifespan, minimizing the need for frequent replacements.
Versatile Applications: Suitable for various industries, including manufacturing plants, machinery repair shops, home use, retail, printing shops, construction works, and advertising companies, this product offers flexibility and convenience.

Next Product Inquire Now

Carbide Center

Order No.	CARBIDE CENTER

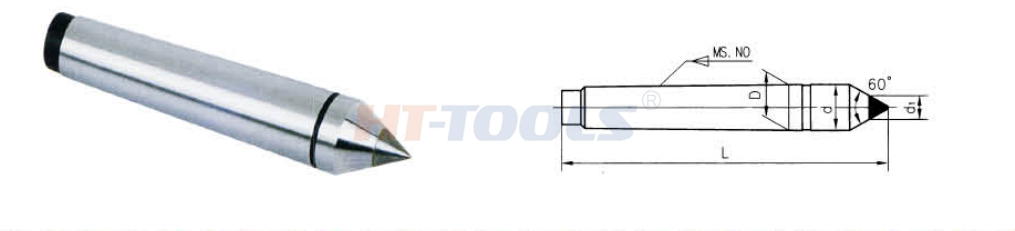

	MS.NO.	D	L	d	d1	Wt(kg)	Accuracy
	MS.NO.	(mm)	(mm)	(mm)	(mm)	Wt(kg)	(mm)
DE1	MS1	12.065	80	12.2	8	0.057	0.010
DE2	MS2	17.780	100	18	8	0.151
DE3	MS3	23.825	125	24.1	12	0.335
DE4	MS4	31.267	160	31.6	15	0.746
DE5	MS5	44.399	200	44.7	18	1.826
DE6	MS6	63.348	270	63.8	24	5.230
DE7	MS7	83.061	360	83.555	24	9.190

Core Advantages

1. Extraordinary wear resistance with service life increased by a hundred times

High-speed steel centers wear easily and dent workpiece center holes, while carbide centers feature minimal friction loss. The tip will not collapse after long-term use, greatly reducing the frequency of replacement and regrinding.

2. Excellent red hardness and high temperature resistance

High-speed steel softens and anneals at around 600°C, whereas tungsten carbide maintains high hardness even at 800°C. It avoids tip burning and scratches on workpieces during high-speed turning and dry grinding.

3.High rigidity and long-lasting stable precision

Resistant to extrusion and deformation. It hardly deflects under heavy cutting loads or slender shaft machining, consistently ensuring roundness, coaxiality and dimensional uniformity of workpieces.

4.Compatible with hard-to-machine materials

The ideal choice for processing stainless steel, titanium alloy, hardened die steel, superalloy and other high-hardness materials, eliminating built-up edge and scoring of center hole surfaces.
