BT40 High Precision Hydraulic Tool Holder

Use only cutting tools that have a shank tolerance within h6.

Do not use with cutting tools made with a flat onthe shank. (ie:Weldon type shank)

Do not clamp without a tool.

Always insert the cutting tool into the holder bey-ond min. clamping length C.

Inquire Now

Product Details

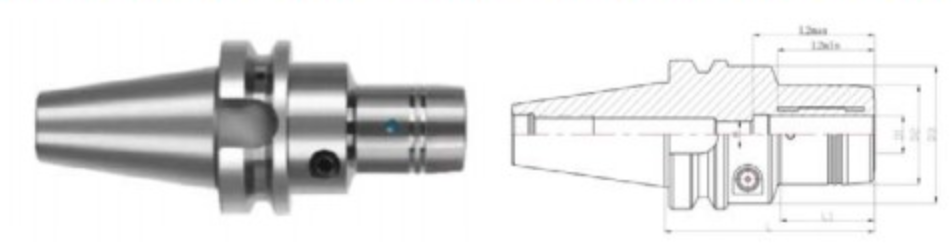

Model	D1	D2I	D3	L	L1	L2min	L2max	M
BT40-HDC06-90L	6	30	46	90	38	28	44	M5
BT40-HDC06-140L	6	30	46	140	38	28	44	M5
BT40-HDC08-90L	8	32	48	90	38	28	44	M6
BT40-HDC08-140L	8	32	48	140	38	28	44	M6
BT40-HDC10-90L	10	34	52	90	40	37	51	M8
BT40-HDC10-140L	10	34	52	140	40	37	51	M8
BT40-HDC12-90L	12	36	54	90	40	37	51	M8
BT40-HDC12-140L	12	36	54	140	40	37	51	M8
BT40-HDC14-90L	14	38	56	90	40	41	52	M12
BT40-HDC16-90L	16	40	58	90	40	41	52	M12
BT40-HDC18-90L	18	43	59	90	40	41	52	M12
BT40-HDC20-90L	20	46	60	90	40	41	53	M8
BT40-HDC20-140L	20	46	60	140	40	41	53	M12
BT40-HDC25-105L	25	52	62	105	55	49	65	M12
BT40-HDC32-105L	32	63	62	105		52	65	M12

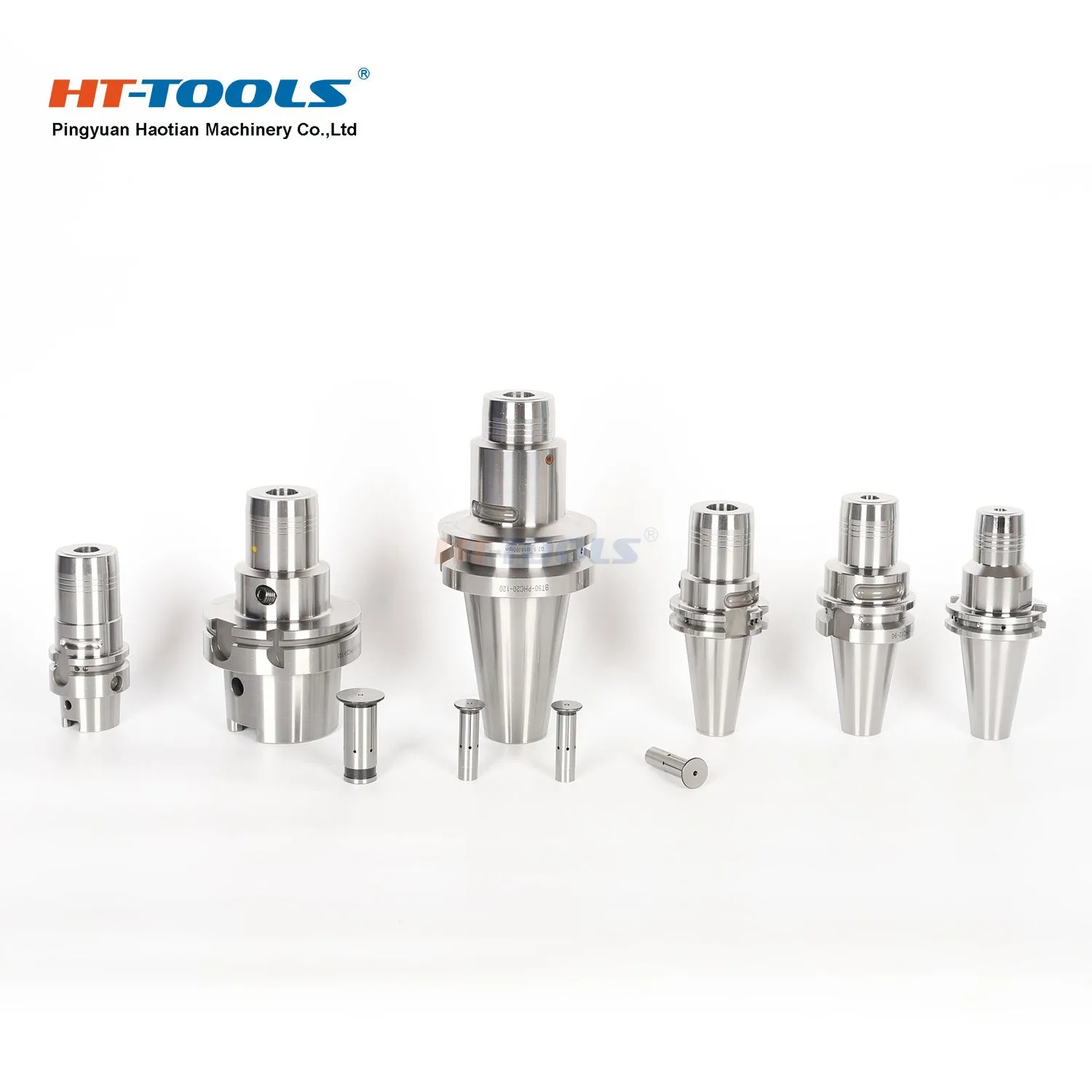

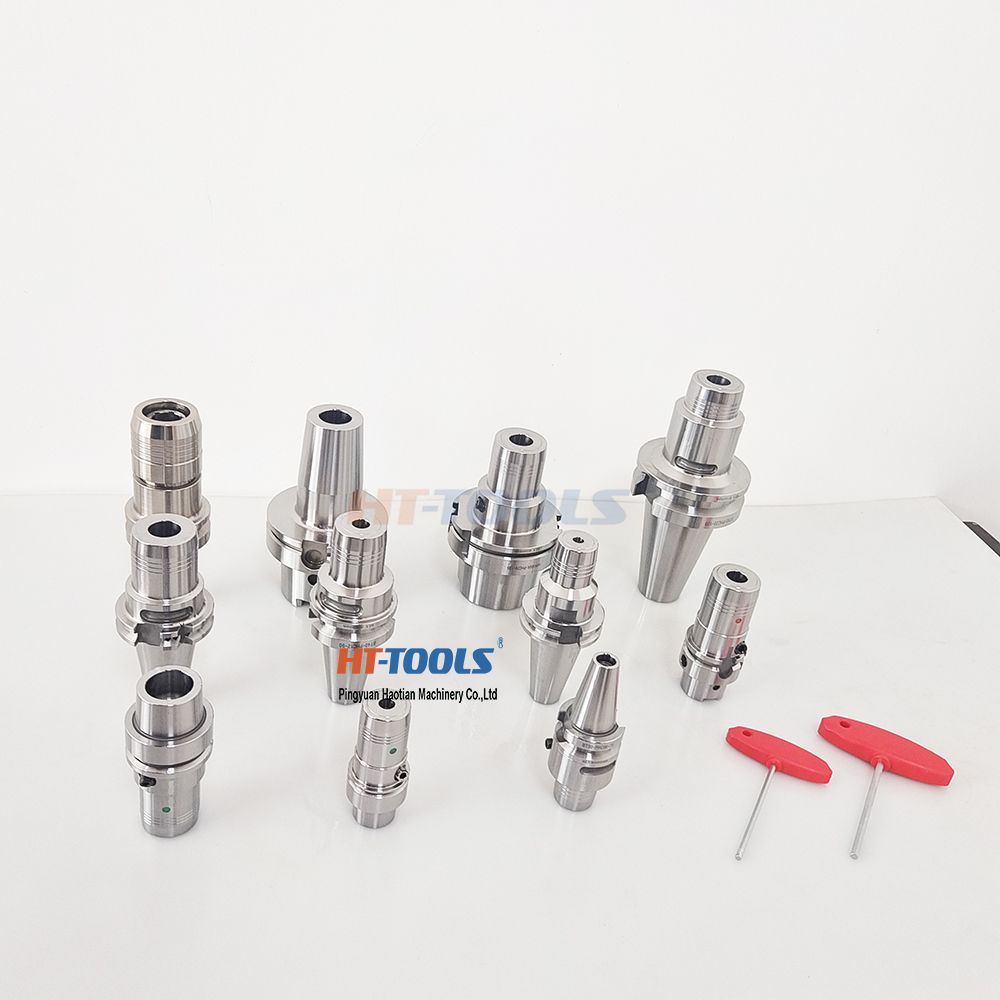

BT40 hydraulic tool holder with hydraulic clamping system, ultra-low runout, high rigidity for CNC machining center. Heat-treated alloy steel, wear-resistant coating, stable high-speed cutting.
