1. High quality elastic steel material with long use time.
2. The precision little than 0.01mm with balance 8000rpm. Higher precision also can be made by your demand.(G6.3/12000rpm, G2.5/20000rpm)
3. Suitable Pull Stub& Facing Cutter is also upon request.
4. The clamping hole tolerance H5 ,with a locking screw less than 20mm with a diameter of 25mm above two locking screw
Product Details
| Type | d1 | L1 | D | L | L2 | K1 | K2 | N.W (kg) | ||

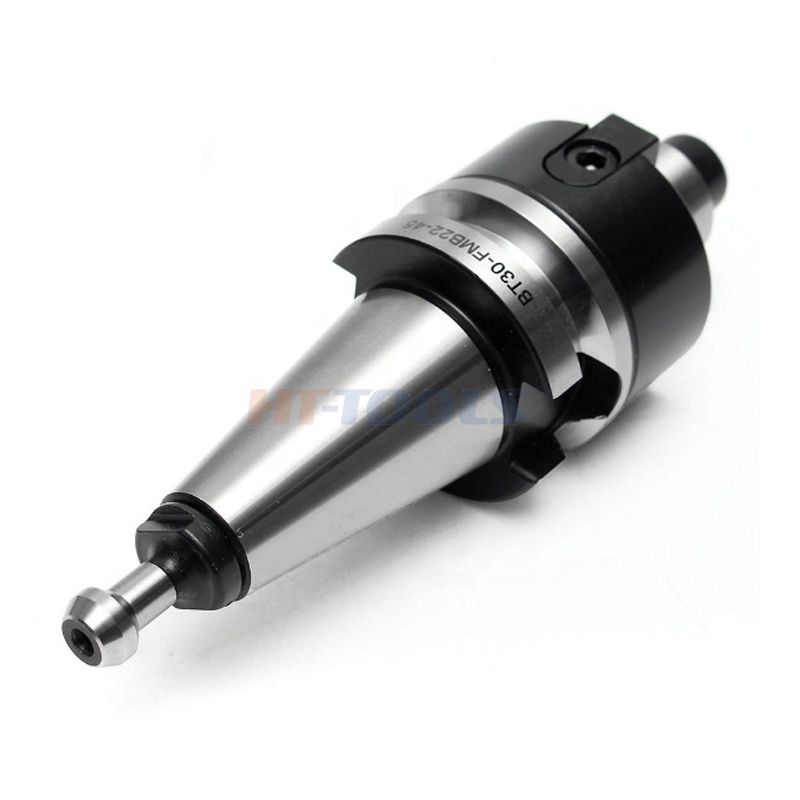

| BT30×FMB22-45 | 22 | 45 | 48 | 111.4 | 18 | 4.8 | 10 | 0.85 | ||
| BT30×FMB22-60 | 60 | 126.4 | 1.25 | |||||||
| BT30×FMB27-46 | 27 | 45 | 60 | 113.4 | 20 | 5.8 | 12 | 1.20 | ||
| BT30×FMB27-60 | 60 | 128.4 | 1.35 | |||||||
| BT30×FMB32-45 | 32 | 45 | 78 | 115.4 | 22 | 6.8 | 14 | 1.35 | ||
| BT40×FMB22-45 | 22 | 45 | 48 | 128.4 | 18 | 4.8 | 10 | 1.45 | ||
| BT40×FMB22-60 | 60 | 143.4 | 1.70 | |||||||
| BT40×FMB22-100 | 100 | 183.4 | 2.20 | |||||||
| BT40×FMB22-150 | 150 | 233.4 | 3.10 | |||||||
| BT40×FMB22-200 | 200 | 283.4 | 3.10 | |||||||
| BT40×FMB27-45 | 27 | 45 | 60 | 130.4 | 20 | 5.8 | 12 | 1.60 | ||
| BT40×FMB27-60 | 60 | 145.4 | 2.00 | |||||||
| BT40×FMB27-90 | 90 | 175.4 | 2.30 | |||||||
| BT40×FMB27-105 | 105 | 190.4 | 2.50 | |||||||
| BT40×FMB32-45 | 32 | 45 | 78 | 132.4 | 22 | 6.8 | 14 | 1.75 | ||

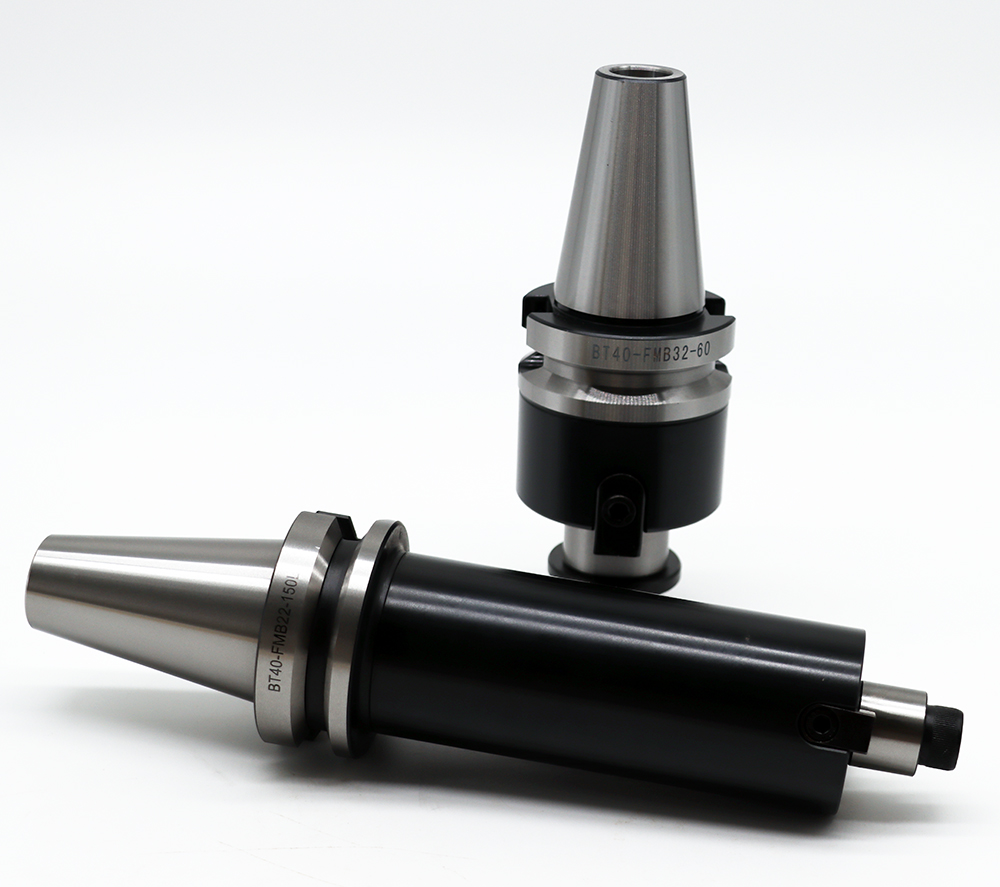

| BT40×FMB32-60 | 60 | 147.4 | 2.10 | |||||||
| BT40×FMB40-60 | 40 | 60 | 80 | 150.4 | 25 | 8.3 | 16 | 2.80 | ||
| BT50×FMB22-45 | 22 | 45 | 48 | 164.8 | 18 | 4.8 | 10 | 4.50 | ||
| BT50×FMB22-90 | 90 | 209.8 | 5.10 | |||||||
| BT50×FMB22-150 | 150 | 269.8 | 6.80 | |||||||
| BT50×FMB22-200 | 200 | 319.8 | 7.00 | |||||||
| BT50×FMB22-250 | 250 | 369.8 | 8.00 | |||||||
| BT50×FMB22-300 | 300 | 60 | 419.8 | 9.20 | ||||||
| BT50×FMB22-350 | 350 | 469.8 | 10.50 | |||||||
| BT50×FMB22-400 | 400 | 519.8 | 11.50 | |||||||
| BT50×FMB27-50 | 27 | 50 | 171.8 | 20 | 5.8 | 12 | 4.60 | |||
| BT50×FMB27-90 | 90 | 211.8 | 5.40 | |||||||
| BT50×FMB27-150 | 150 | 271.8 | 7.50 | |||||||
| BT50×FMB27-200 | 200 | 321.8 | 9.50 | |||||||
| BT50×FMB27-250 | 250 | 371.8 | 11.00 | |||||||
| BT50×FMB32-50 | 32 | 50 | 78 | 173.8 | 22 | 6.8 | 14 | 5.70 | ||
| BT50×FMB32-90 | 90 | 213.8 | 5.80 | |||||||
| BT50×FMB40-50 | 40 | 50 | 89 | 176.8 | 25 | 8.3 | 16 | 5.20 | ||
| BT50×FMB40-90 | 90 | 216.8 | 6.00 | |||||||
| BT50×FMB40-105 | 105 | 98 | 231.8 | 7.20 | ||||||
| BT50×FMB40F-75 | 75 | 110 | 202.8 | 26 | 6.00 | |||||
| BT50×FMB60-75 | 60 | 75 | 140 | 210.8 | 25 | 12.5 | 25.4 | 8.50 | ||
Flat positioning design, great concentricity & strong clamping force
Hardened heat-treated body, anti-deformation for heavy cutting
Low vibration, excellent flat finish on workpiece surface
Simple assembly, widely compatible with FMB milling cutters
Anti-rust surface treatment, long service life

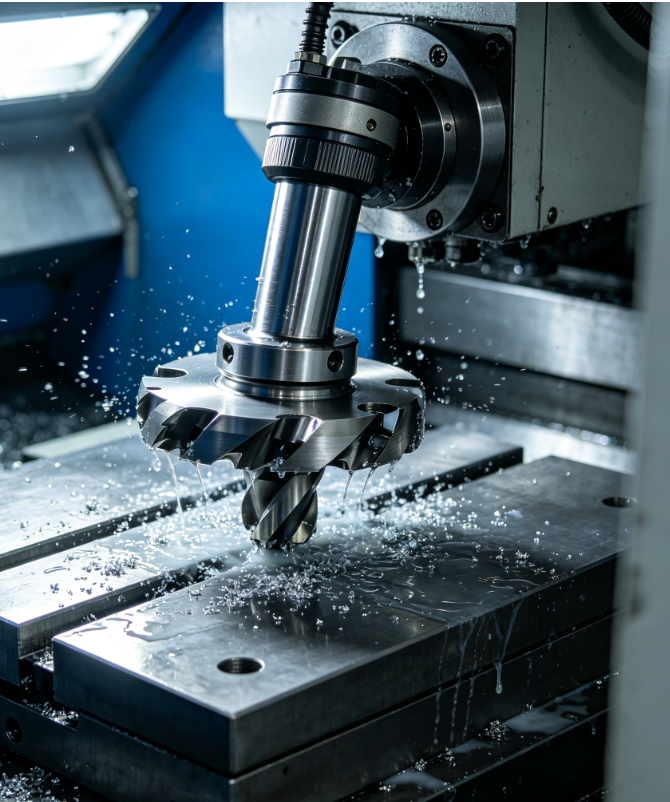

CNC machining center, mold processing, auto parts, large metal plane milling, hardware manufacturing
Welcome your inquiry.
Sales manager:Sophie
Whatsapp: +8615288891922
Email: ht08@ht-tools.net
Other Products

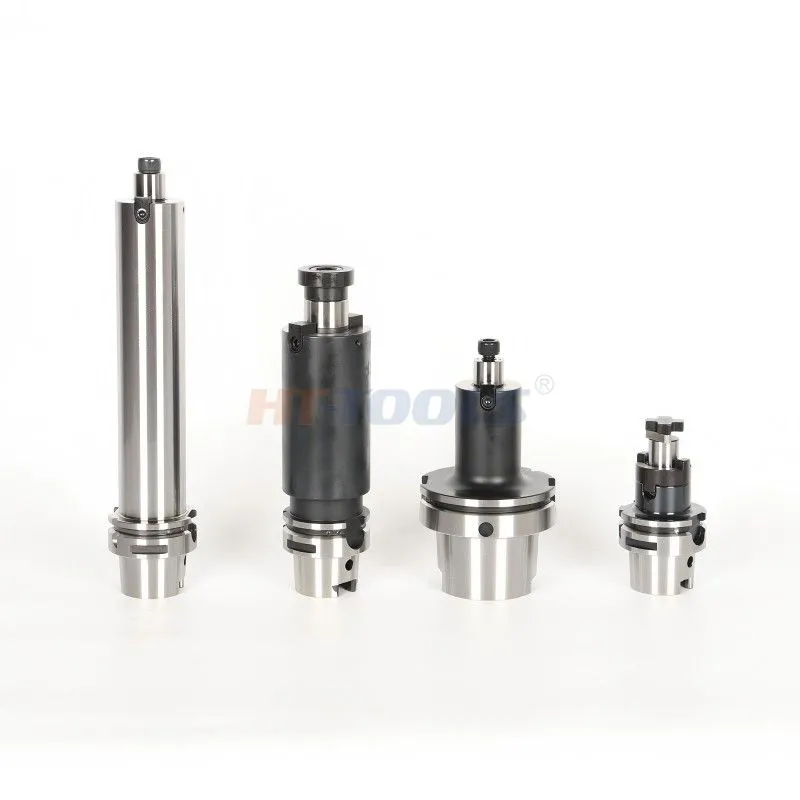

HSK FMB Face Mill Arbor | High Precision Tool Holder for CNC Milling
