1. Using ultra-fine grain alloy bars for processing carbon steel, tool steel, die steel, alloy steel, cast iron
2. Suitable for processing materials within HRC65
3. Suitable for high speed machining in dry or wet cutting conditions
Carbide end mill holder
It can be used for processing tool steel, alloy steel, pre-hardened die steel and other high hardness materials.
Universal 2-flute ball nose end mill, can be widely used for profiling and other purposes.
The surface roughness of the workpiece after processing is good.
High heat-resistant coating enables high-speed machining.
Carbide milling cutter series
Solid Carbide End Mills S65 Series
Cemented Carbide Series
1. Using ultra-fine grain alloy bars for processing carbon steel, tool
steel, die steel, alloy steel, cast iron
2. Suitable for processing materials within HRC65
3. Suitable for high speed machining in dry or wet cutting conditions
Tolerance
| Blade diameter D size range | Blade diameter tolerance D tolerance | Shank diameter toleranced tolerance |
| φ1.0~φ2.9 | 0~-0.02 | h6 |
| φ3.0~φ6.0 | -0.01~-0.03 | h6 |
| φ6.5~φ10.5 | -0.01~-0.035 | h6 |
| φ11.0~φ16.0 | -0.01~-0.04 | h6 |
| φ17.0~φ20 | -0.015~-0.045 | h6 |

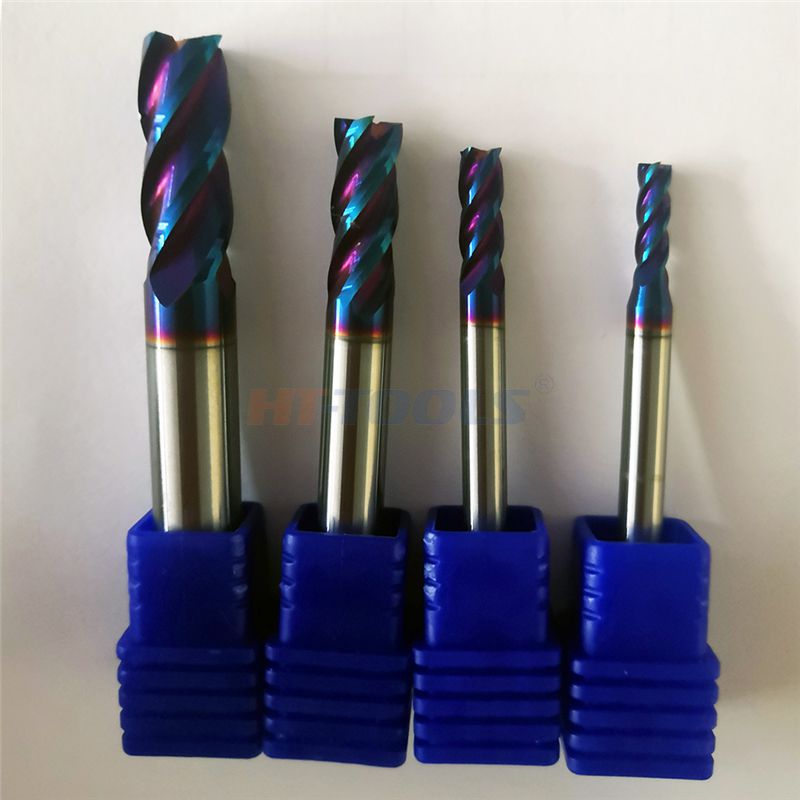

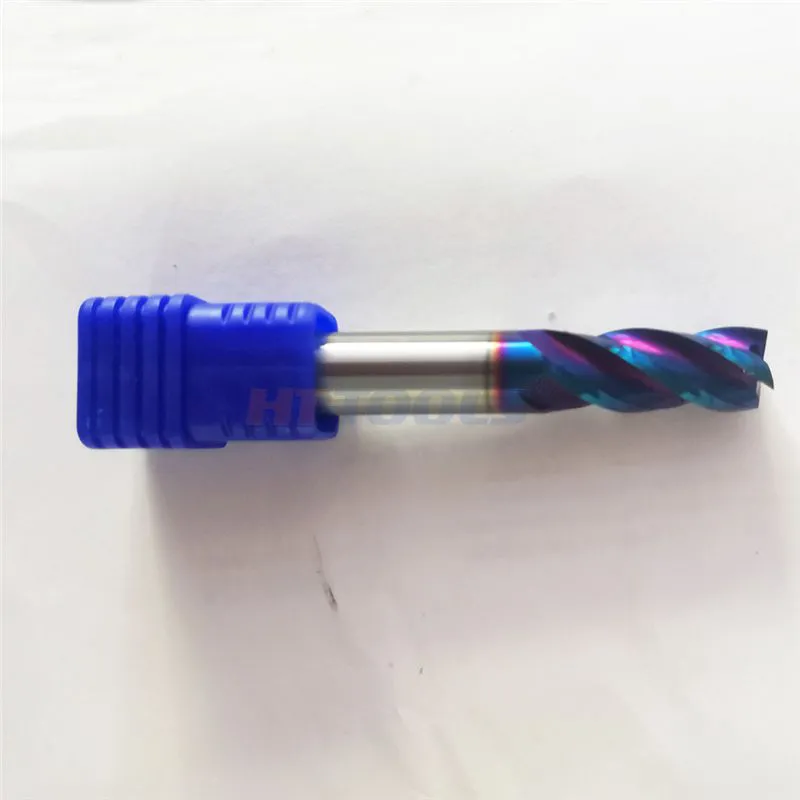

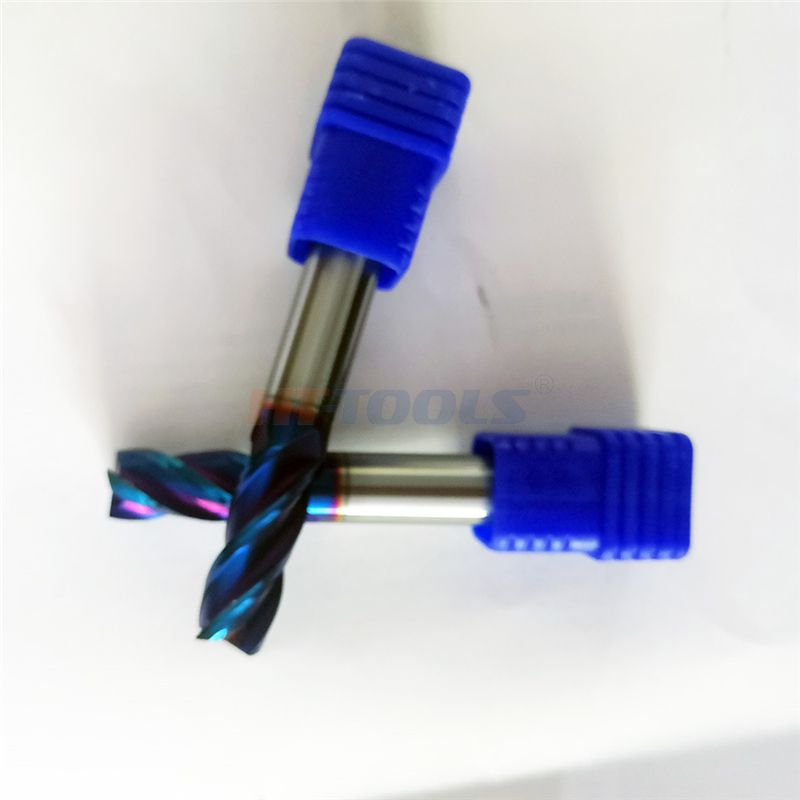

S652/3/4 Square End Mills
| Item Code | Blade diameter(D) | Shank diameter(d) | Blade length(Ap1 max) | full length(L) |
| 65-04D0010 | 1.0 | 4 | 3 | 50 |
| 65-04D0015 | 1.5 | 4 | 4 | 50 |
| 65-04D0020 | 2.0 | 4 | 6 | 50 |
| 65-04D0025 | 2.5 | 4 | 8 | 50 |
| 65-03D0030 | 3.0 | 3 | 8 | 50 |
| 65-04D0030 | 3.0 | 4 | 8 | 50 |
| 65-04D0035 | 3.5 | 4 | 11 | 50 |
| 65-04D0040 | 4.0 | 4 | 11 | 50 |
| 65-06D0010 | 1.0 | 6 | 3 | 50 |
| 65-06D0015 | 1.5 | 6 | 4 | 50 |
| 65-06D0020 | 2.0 | 6 | 6 | 50 |
| 65-06D0025 | 2.5 | 6 | 8 | 50 |
| 65-06D0030 | 3.0 | 6 | 8 | 50 |
| 65-06D0035 | 3.5 | 6 | 11 | 50 |
| 65-06D0040 | 4.0 | 6 | 11 | 50 |
| 65-06D0045 | 4.5 | 6 | 13 | 50 |
| 65-05D0050 | 5.0 | 5 | 13 | 50 |
| 65-06D0050 | 5.0 | 6 | 13 | 50 |
| 65-06D0060 | 6.0 | 6 | 15 | 50 |
| 65-08D0070 | 7.0 | 8 | 20 | 60 |
| 65-08D0080 | 8.0 | 8 | 20 | 60 |
| 65-10D0090 | 9.0 | 10 | 25 | 75 |
| 65-10D0100 | 10.0 | 10 | 25 | 75 |
| 65-12D0120 | 12.0 | 12 | 30 | 75 |
| 65-14D0140 | 14.0 | 14 | 45 | 100 |
| 65-16D0160 | 16.0 | 16 | 45 | 100 |
| 65-18D0180 | 18.0 | 18 | 45 | 100 |
| 65-20D0200 | 20.0 | 20 | 45 | 100 |

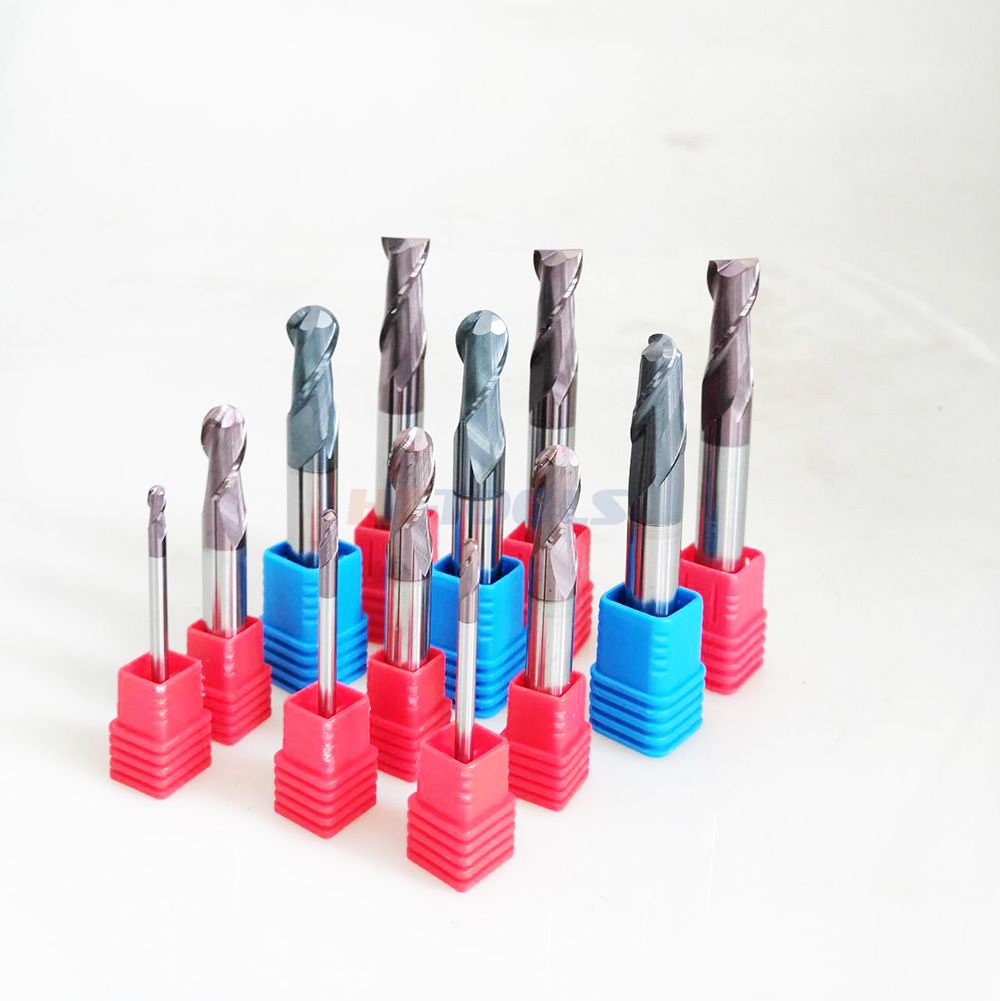

S65 Ball End Mills
| Item Code | Blade diameter(D) | Shank diameter(d) | Blade length(Ap1 max) | full length(L) | |||
| 65R-04D0010 | R0.5 | 4 | 2 | 50 | |||
| 65R-04D0015 | R0.75 | 4 | 3 | 50 | |||
| 65R-04D0020 | R1 | 4 | 4 | 50 | |||
| 65R-04D0025 | R1.25 | 4 | 5 | 50 | |||
| 65R-03D0030 | R1.5 | 3 | 6 | 50 | |||
| 65R-04D0030 | R1.5 | 4 | 6 | 50 | |||
| 65R-04D0040 | R2 | 4 | 8 | 50 | |||
| 65R-06D0010 | R0.5 | 6 | 2 | 50 | |||
| 65R-06D0015 | R0.75 | 6 | 3 | 50 | |||
| 65R-06D0020 | R1 | 6 | 4 | 50 | |||
| 65R-06D0025 | R1.25 | 6 | 5 | 50 | |||
| 65R-06D0030 | R1.5 | 6 | 6 | 50 | |||
| 65R-06D0040 | R2 | 6 | 8 | 50 | |||
| 65R-05D0050 | R2.5 | 5 | 10 | 50 | |||
| 65R-06D0050 | R2.5 | 6 | 10 | 50 | |||
| 65R-06D0060 | R3 | 6 | 12 | 50 | |||
| 65R-08D0080 | R4 | 8 | 16 | 60 | |||
| 65R-10D0100 | R5 | 10 | 20 | 75 | |||
| 65R-12D0120 | R6 | 12 | 25 | 75 | |||
| 65R-16D0160 | R8 | 16 | 30 | 100 | |||
| 65R-20D0200 | R10 | 20 | 30 | 100 | |||
CNC milling center, machining center, mold processing
Machining carbon steel, stainless steel, alloy steel, aluminum, copper
Auto parts, hardware, die casting, mechanical parts manufacturing
Wood & plastic precision machining
Other product:

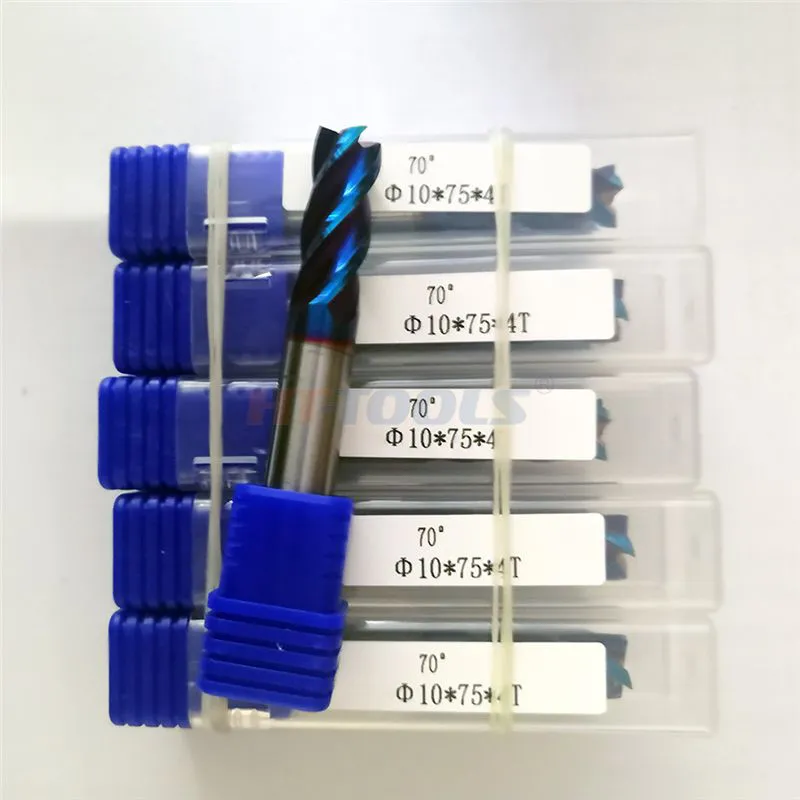

Package :
We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack
the products according to your requirements if the order is large.
FAQ:
1 .Are you factory or Trade Company?
We are industry and trade integration.
2 .Could you supply samples?
Yes, we can.
3. Where do you export?
The whole world.
4 .Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5 .What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air,and by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
8. What’s your payment way?
T/T, Pay pal, Western Union and so on.
9. What’s your delivery time?
5-20 days after order confirmed
10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
