1. Using ultra-fine grain alloy bars for processing carbon steel, tool steel, die steel, alloy steel, cast iron
2. Suitable for processing materials within HRC55
3. Suitable for high speed machining in dry or wet cutting conditions
Carbide end mill holder
It can be used for processing tool steel, alloy steel, pre-hardened die steel and other high hardness materials.
Universal 2-flute ball nose end mill, can be widely used for profiling and other purposes.
The surface roughness of the workpiece after processing is good.
High heat-resistant coating enables high-speed machining.

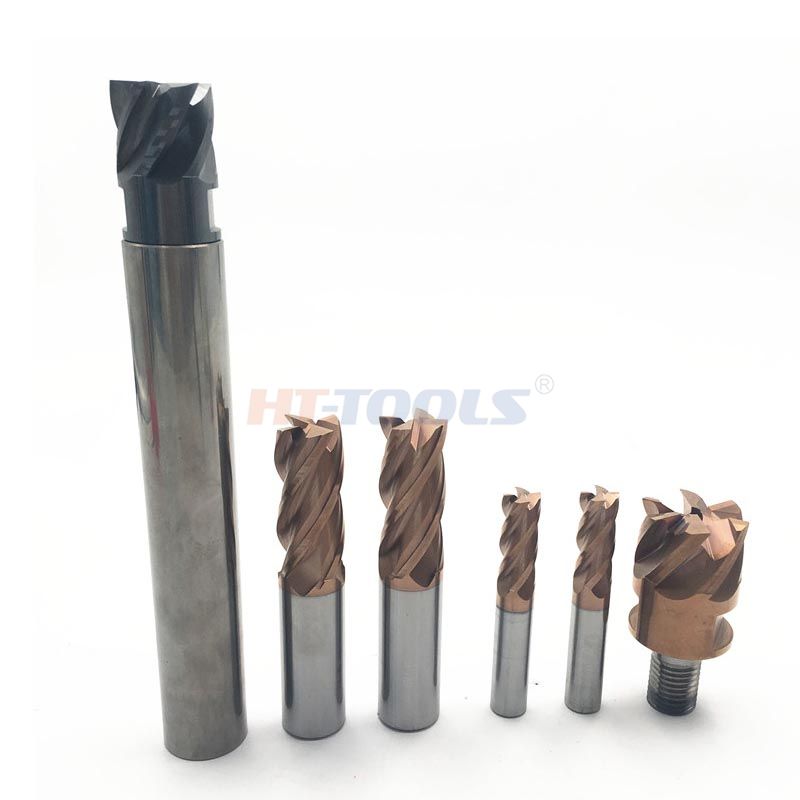

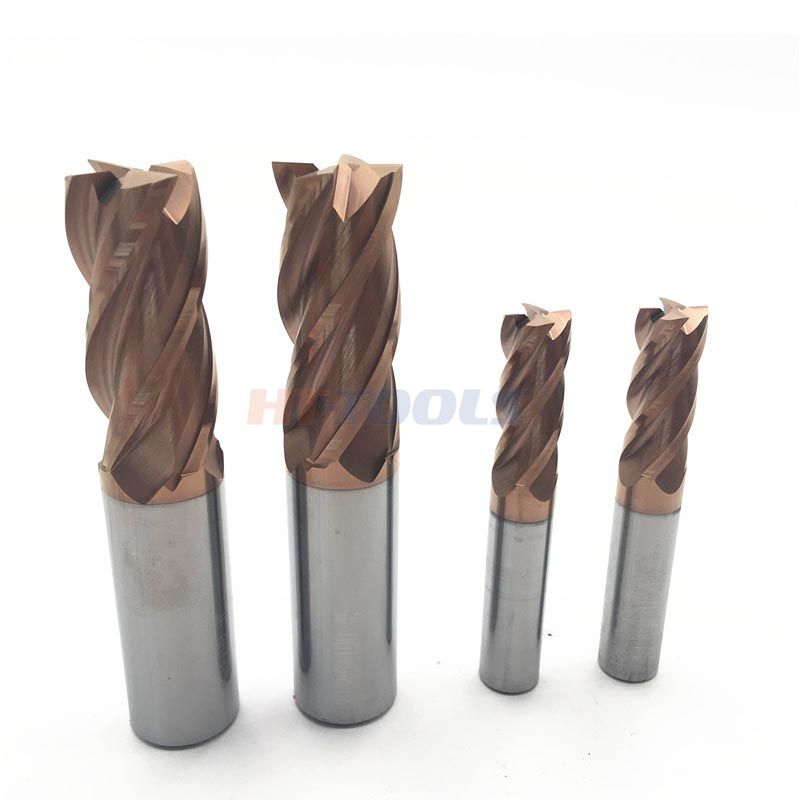

4 flutes end mills
| 单位(mm) | ||||
| 型号 ITME CODE | 刃径 d1 | 刃长 L1 | 柄径 Dh6 | 全长 L |
| NOR-4F001 | φ1 | 3 | 4 | 50 |
| NOR-4F002 | φ1.5 | 4 | 4 | 50 |
| NOR-4F003 | φ2 | 6 | 4 | 50 |
| NOR-4F004 | φ2.5 | 8 | 4 | 50 |
| NOR-4F005 | φ3 | 8 | 3 | 50 |
| NOR-4F006 | φ3 | 8 | 4 | 50 |
| NOR-4F007 | φ3.5 | 8 | 4 | 50 |
| NOR-4F008 | φ4 | 10 | 4 | 50 |
| NOR-4F009 | φ5 | 13 | 5 | 50 |
| NOR-4F010 | φ5 | 13 | 6 | 50 |
| NOR-4F011 | φ6 | 15 | 6 | 50 |
| NOR-4F012 | φ8 | 20 | 8 | 60 |
| NOR-4F013 | φ3 | 12 | 3 | 75 |
| NOR-4F014 | φ4 | 15 | 4 | 75 |
| NOR-4F015 | φ5 | 20 | 5 | 75 |
| NOR-4F016 | φ6 | 20 | 6 | 75 |
| NOR-4F017 | φ8 | 25 | 8 | 75 |
| NOR-4F018 | φ10 | 25 | 10 | 75 |
| NOR-4F019 | φ12 | 30 | 12 | 75 |
| NOR-4F020 | φ14 | 32 | 14 | 80 |
| NOR-4F021 | φ3 | 12 | 3 | 100 |
| NOR-4F022 | φ4 | 16 | 4 | 100 |
| NOR-4F023 | φ5 | 20 | 5 | 100 |
| NOR-4F024 | φ6 | 25 | 6 | 100 |
| NOR-4F025 | φ8 | 35 | 8 | 100 |
| NOR-4F026 | φ10 | 40 | 10 | 100 |
| NOR-4F027 | φ12 | 45 | 12 | 100 |
| NOR-4F028 | φ14 | 45 | 14 | 100 |
| NOR-4F029 | φ16 | 45 | 16 | 100 |
| NOR-4F030 | φ18 | 45 | 18 | 100 |
| NOR-4F031 | φ20 | 45 | 20 | 100 |
| NOR-4F032 | φ25 | 45 | 25 | 100 |
| NOR-4F033 | φ6 | 25 | 6 | 150 |
| NOR-4F034 | φ8 | 35 | 8 | 150 |
| NOR-4F035 | φ10 | 45 | 10 | 150 |
| NOR-4F036 | φ12 | 45 | 12 | 150 |
| NOR-4F037 | φ14 | 45 | 14 | 150 |
| NOR-4F038 | φ16 | 50 | 16 | 150 |
| NOR-4F039 | φ18 | 50 | 18 | 150 |
| NOR-4F040 | φ20 | 55 | 20 | 150 |
| NOR-4F041 | φ25 | 60 | 25 | 150 |
Core Selling Points
Four balanced cutting edges, low vibration, flawless workpiece surface
Integrates roughing & finishing, versatile to cut tool costs
Evenly distributed cutting force, wear-resistant & anti-chipping, long service life
Supports high feed rate, greatly improves machining efficiency
High rigidity for side milling, excellent verticality & dimensional accuracy
Suitable for mold steel, stainless steel, carbon steel and other metals
