1. Using ultra-fine grain alloy bars for processing carbon steel, tool steel, die steel, alloy steel, cast iron
2. Suitable for processing materials within HRC55
3. Suitable for high speed machining in dry or wet cutting conditions
Carbide end mill holder
It can be used for processing tool steel, alloy steel, pre-hardened die steel and other high hardness materials.
Universal 2-flute flate bottom end mill, can be widely used for profiling and other purposes.
The surface roughness of the workpiece after processing is good.
High heat-resistant coating enables high-speed machining.

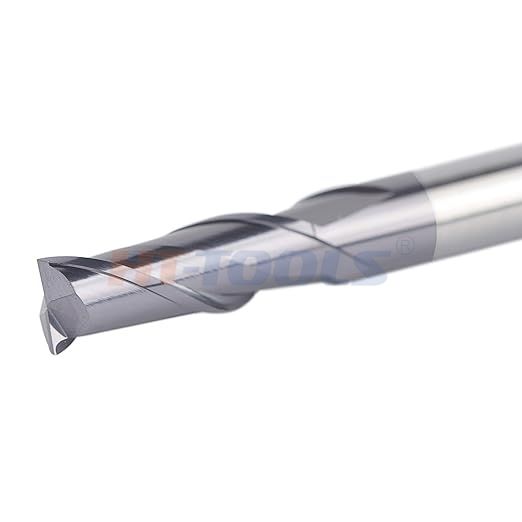

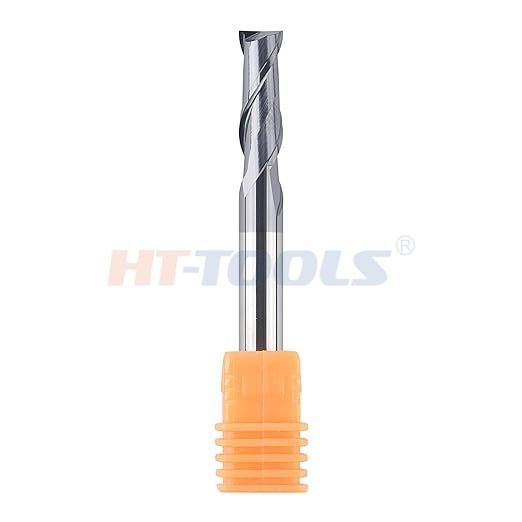

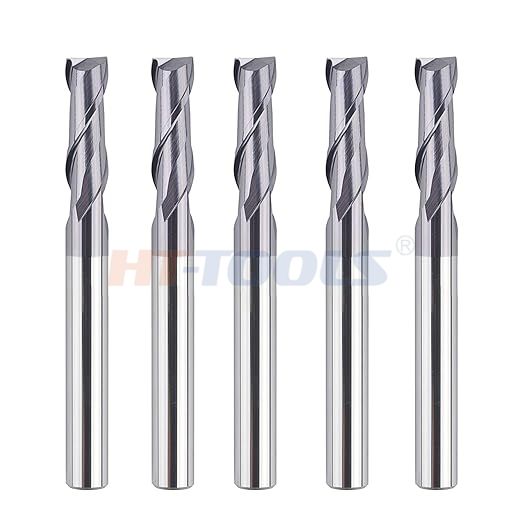

2 flutes end mills
| 直径*刃长*柄径*总长*刃数 | 直径 | 刃长 | 柄径 | 总长 |
| Diameter | length of cut | shank Dia | overall Length | |
| 1.0*3*4*50*2F | 1 | 3 | 4 | 50 |
| 1.5*4*4*50*2F | 1.5 | 4 | 4 | 50 |
| 2.0*6*4*50*2F | 2 | 6 | 4 | 50 |
| 2.5*8*4*50*2F | 2.5 | 8 | 4 | 50 |
| 3.0*8*4*50*2F | 3 | 8 | 4 | 50 |
| 3.5*10*4*50*2F | 3.5 | 10 | 4 | 50 |
| 4*10*4*50*2F | 4 | 10 | 4 | 50 |
| 4*15*4*75*2F | 4 | 15 | 4 | 75 |
| 4*20*4*100*2F | 4 | 20 | 4 | 100 |
| 5*13*5*50*2F | 5 | 13 | 5 | 50 |
| 5*13*6*50*2F | 5 | 13 | 6 | 50 |
| 6*15*6*50*2F | 6 | 15 | 6 | 50 |
| 6*25*6*75*2F | 6 | 25 | 6 | 75 |
| 6*30*6*100*2F | 6 | 30 | 6 | 100 |
| 8*20*8*60*2F | 8 | 20 | 8 | 60 |
| 8*25*8*75*2F | 8 | 25 | 8 | 75 |
| 8*35*8*100*2F | 8 | 35 | 8 | 100 |
| 10*25*10*75*2F | 10 | 25 | 10 | 75 |
| 10*40*10*100*2F | 10 | 40 | 10 | 100 |
| 12*30*12*75*2F | 12 | 30 | 12 | 75 |
| 12*45*12*100*2F | 12 | 45 | 12 | 100 |
| 14*35*14*80*2F | 14 | 35 | 14 | 80 |
| 14*45*14*100*2F | 14 | 45 | 14 | 100 |
| 16*45*16*100*2F | 16 | 45 | 16 | 100 |
| 18*45*18*100*2F | 18 | 45 | 18 | 100 |
| 20*45*20*100*2F | 20 | 45 | 20 | 100 |
| 6*35*6*150*2F | 6 | 35 | 6 | 150 |
| 8*50*8*150*2F | 8 | 50 | 8 | 150 |
| 10*55*10*150*2F | 10 | 55 | 10 | 150 |
| 12*60*12*150*2F | 12 | 60 | 12 | 150 |
| 14*65*14*150*2F | 14 | 60 | 14 | 150 |
| 16*70*16*150*2F | 16 | 70 | 16 | 150 |
| 18*70*18*150*2F | 18 | 70 | 18 | 150 |
| 20*70*20*150*2F | 20 | 70 | 20 | 150 |
| 7*20*8*60*2F | 7 | 20 | 8 | 60 |
| 9*20*10*75*2F | 9 | 20 | 10 | 75 |
| 11*25*12*75*2F | 11 | 25 | 12 | 75 |
| 13*40*14*100*2F | 13 | 40 | 14 | 100 |
| 15*45*16*100*2F | 15 | 45 | 16 | 100 |
| 4*20*4*150*2F | 4 | 20 | 4 | 150 |
| 6*35*6*200*2F | 6 | 35 | 6 | 200 |
| 8*50*8*200*2F | 8 | 50 | 8 | 200 |
| 10*55*10*200*2F | 10 | 55 | 10 | 200 |
| 12*60*12*200*2F | 12 | 60 | 12 | 200 |
| 14*60*14*200*2F | 14 | 60 | 14 | 200 |
| 16*70*16*200*2F | 16 | 70 | 16 | 200 |
| 20*70*20*200*2F | 20 | 70 | 20 | 200 |
| 适合被加工材料 | 碳素钢 | 合金钢 | 预硬钢，淬硬钢 | 铸铁 |
Q: What material is the 2-flute end mill made of?
A: It is made of ultra-fine grain carbide, offering good wear resistance and bending strength.
Q: What materials can it machine?
A: Carbon steel, tool steel, die steel, alloy steel, cast iron, pre-hardened steel, etc. Suitable for materials up to HRC55.
Q: Is it suitable for high-speed machining?
A: Yes. It supports both dry and wet cutting. The high heat-resistant coating helps extend tool life during high-speed machining.
Q: What are the main applications?
A: Universal 2-flute flat-bottom end mill, widely used for profiling, contour milling, slotting, and general milling.
Q: How is the surface finish after machining?
A: With proper parameters, the workpiece surface roughness is good, suitable for semi-finishing and general finishing.
Q: Can it machine aluminum?
A: Yes. The 2-flute design provides large chip evacuation space, making it especially suitable for high-speed machining of aluminum, copper, and other non-ferrous metals.
Q: What should I pay attention to when using it?
A: Choose proper speed and feed, ensure stable clamping, pay attention to chip evacuation, and avoid machining materials harder than HRC55.
