Material: 40Cr
Hardness: HRC48-52
Accuracy: 0.005mm
Package: Plastic box
Type: C12 C16 C20 C25 C32 C40
Mini order quantity: 10pcs
Package: Plastic box
Brand: HT-TOOLS
Product Details

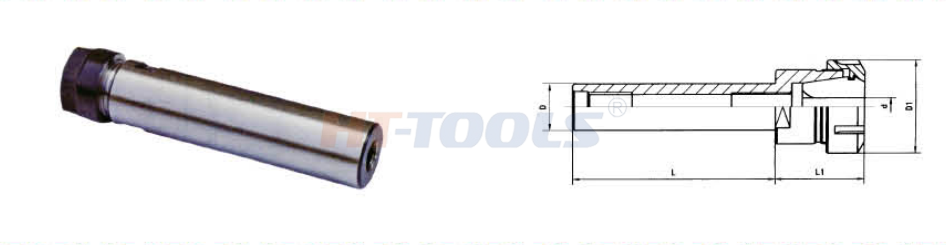

| Order No | d | D | D1 | L | L1 |
| ER11-12 x 100-45 | 1-7 | 12 | 19 | 100 | 45 |
| ER11-16 x 60-40 | 1-7 | 16 | 19 | 60 | 40 |
| ER11-16 x 100-21 | 1-7 | 16 | 19 | 100 | 21 |
| ER16-12 x 100-35 | 1-10 | 12 | 28 | 100 | 35 |
| ER16-16 x 100-50 | 1-10 | 16 | 28 | 100 | 50 |
| ER16-16 x 50-50 | 1-10 | 16 | 28 | 150 | 50 |
| ER16-20 x 100-50 | 1-10 | 20 | 28 | 100 | 50 |
| ER16-20 x 150-50 | 1-10 | 20 | 28 | 150 | 50 |
| ER16-25 x 150-27 | 1-10 | 25 | 28 | 100 | 27 |
| ER16-25 x 150-27 | 1-10 | 25 | 28 | 150 | 27 |
| ER20-20 x 80-50 | 1-13 | 20 | 34 | 80 | 50 |
| ER20-20 x 100-50 | 1-13 | 20 | 34 | 100 | 50 |
| ER20-20 x 150-36 | 1-13 | 20 | 34 | 150 | 36 |
| ER20-25 x 50-50 | 1-13 | 25 | 34 | 50 | 50 |
| ER20-25 x 100-45 | 1-13 | 25 | 34 | 100 | 45 |
| ER25-20 x 150-45 | 1-13 | 25 | 34 | 150 | 45 |
| ER25-20 x 100-50 | 1-16 | 20 | 42 | 100 | 50 |
| ER25-20 x 150-50 | 1-16 | 20 | 42 | 150 | 50 |
| ER25-25 x 80-50 | 1-16 | 25 | 42 | 80 | 50 |
| ER25-25 x 100-50 | 1-16 | 25 | 42 | 100 | 50 |
| ER25-25 x 150-36 | 1-16 | 25 | 42 | 150 | 36 |
| ER25-32 x 60-45 | 1-16 | 32 | 42 | 60 | 45 |
| ER25-32 x 100-45 | 1-16 | 32 | 42 | 100 | 45 |
| ER32-25 x 80-55 | 2-20 | 25 | 50 | 80 | 55 |
| ER32-25 x 100-55 | 2-20 | 25 | 50 | 100 | 55 |
| ER32-32 x 55-45 | 2-20 | 32 | 50 | 55 | 45 |
| ER32-32 x 100-55 | 2-20 | 32 | 50 | 100 | 55 |
| ER32-40 x 75-50 | 2-20 | 40 | 50 | 75 | 50 |
| ER32-40 x 100-50 | 2-20 | 40 | 50 | 100 | 50 |
| ER40-32 x 80-60 | 2-26 | 32 | 63 | 80 | 60 |
| ER40-40 x 100-60 | 2-26 | 40 | 63 | 100 | 60 |
Widely equipped on bench drills, small CNC engravers and hobby milling machines.
Welcome your inquiry.
Sales manager:Sophie
Whatsapp: +8615288891922
Email: ht08@ht-tools.net
