Material: 40Cr
Hardness: HRC48-52
Accuracy: 0.005mm
Package: Plastic box
Type: C10 C12 C16 C20 C25
Mini order quantity: 10pcs
Package: Plastic box
Brand: HT-TOOLS
Product Details

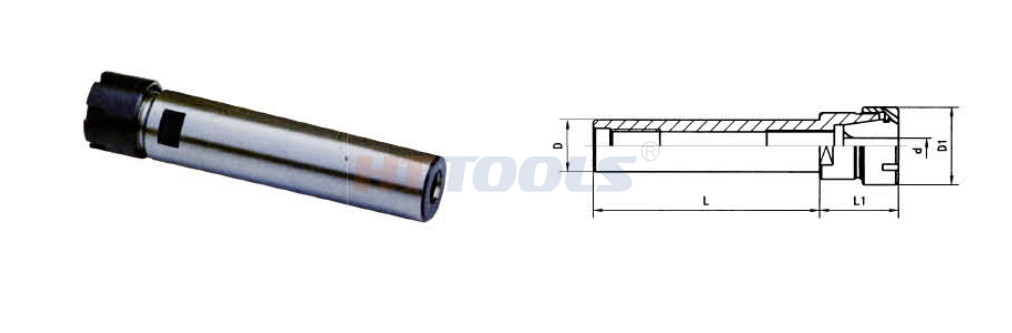

| Order No | d | D | D1 | L | L1 |
| ER8M-10x95-17 | 1-5 | 10 | 12 | 95 | 17 |
| ER8M-10x120-7 | 1-5 | 10 | 12 | 120 | 17 |
| ER8M-16x100-17 | 1-5 | 16 | 12 | 100 | 17 |
| ER11M-12x95-28 | 1-7 | 12 | 16 | 95 | 28 |
| ER11M-12x150-30 | 1-7 | 12 | 16 | 150 | 30 |
| ER11M-16x100-19 | 1-7 | 16 | 16 | 100 | 19 |
| ER11M-16x150-19 | 1-7 | 16 | 16 | 150 | 19 |
| ER16M-12x50-36 | 1-10 | 12 | 22 | 50 | 36 |
| ER16M-12x100-40 | 1-10 | 12 | 22 | 100 | 40 |
| ER16M-16x80-37 | 1-10 | 16 | 22 | 80 | 37 |
| ER16M-16x150-40 | 1-10 | 16 | 22 | 150 | 40 |
| ER16M-20x50-35 | 1-10 | 20 | 22 | 50 | 35 |
| ER16M-20x100-25 | 1-10 | 20 | 22 | 100 | 25 |
| ER16M-20x150-25 | 1-13 | 20 | 22 | 150 | 25 |
| ER20M-16x60-40 | 1-13 | 16 | 28 | 60 | 40 |
| ER20M-16x100-40 | 1-13 | 16 | 28 | 100 | 40 |
| ER20M-16x150-40 | 1-13 | 16 | 28 | 150 | 40 |
| ER20M-20x80-40 | 1-13 | 20 | 28 | 80 | 40 |
| ER20M-20x100-40 | 1-13 | 20 | 28 | 100 | 40 |
| ER20M-20x120-40 | 1-13 | 20 | 28 | 120 | 40 |
| ER25M-20x150-50 | 1-13 | 20 | 28 | 150 | 40 |
| ER25M-25x150-50 | 1-16 | 20 | 35 | 150 | 50 |
| ER25M-25x145-45 | 1-16 | 25 | 35 | 145 | 45 |
Other Products
5c Collet Square Hex 5C Collet Chuck For Lathe
This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
EOC nut has high rigidity,strong clamping force,convenient for engraving machine,spindle machine,extension shank,locking spring collet.
Used for boring, milling, drilling, tapping, grinding and engraving operationetc.
