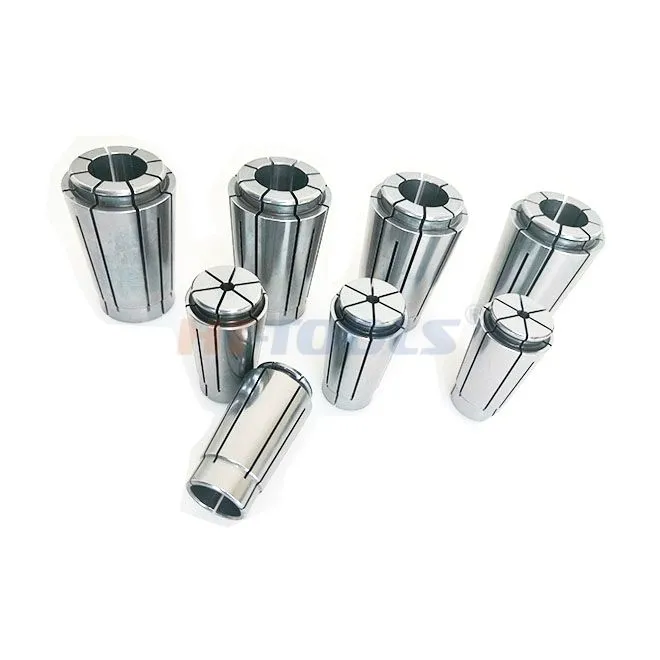

Steel: SUJ2
HRC: 46°
Precision: 5 u (4D length).
It is used for the cutting tools like dills, taps mills and reamers Only for cutting tools that the shank diameter same as collet's hole diameter.
Can not be clamped with contraction.
Clamping ability better than AA type.

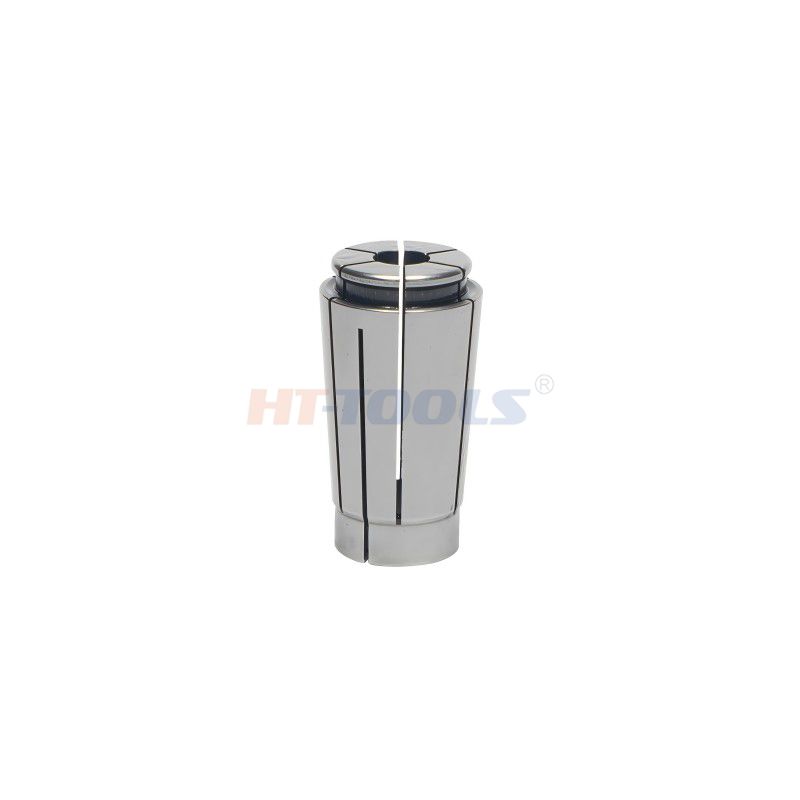

Product Details
| Order No. | ER16G-d | ER20G-d | ER25G-d | ER32G-d | ER40G-d |
| D | 16 | 20 | 25 | 32 | 40 |
| L | 27.5 | 31.5 | 34 | 40 | 46 |
| d | 3.5-8 | 3.5-10 | 3.5-16 | 3.5-20 | 3.5-25 |
| dxa | 3.5×2.7 | 4.0×3.0 | 4.5×3.4 | 5.5×4.3 | 5.5×4.3 | 7.0×5.5 |
| 8.0×6.2 | 9.0×7.0 | 10×8.0 | 11×9.0 | 11×9.0 | 14×11 | |
| 16×12 | 18×14.5 | 20×16 | 22×18 | 22×18 |

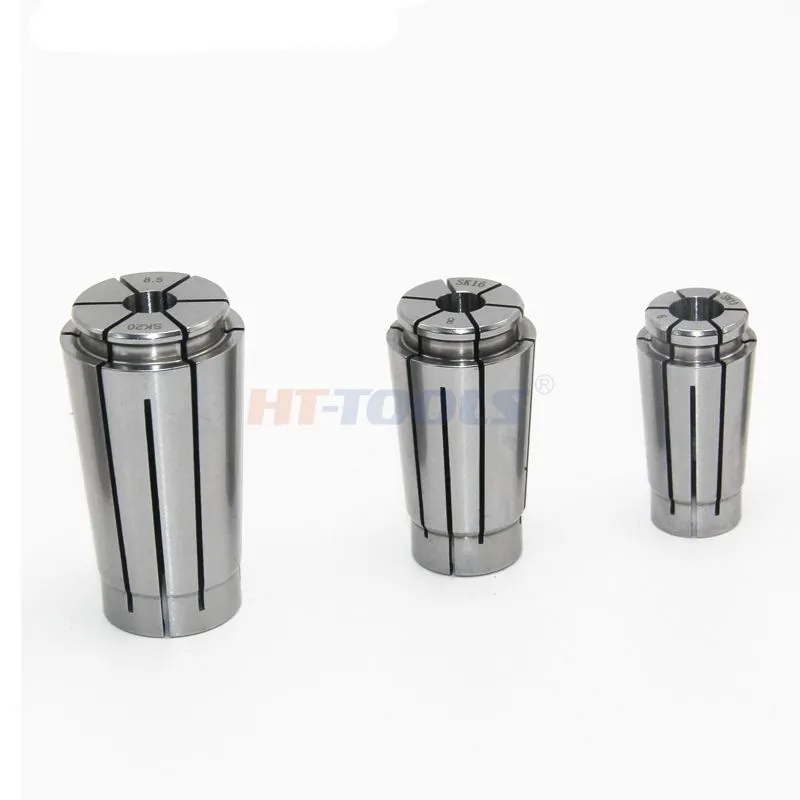

Ultra-low runout tolerance, ideal for high-speed finishing

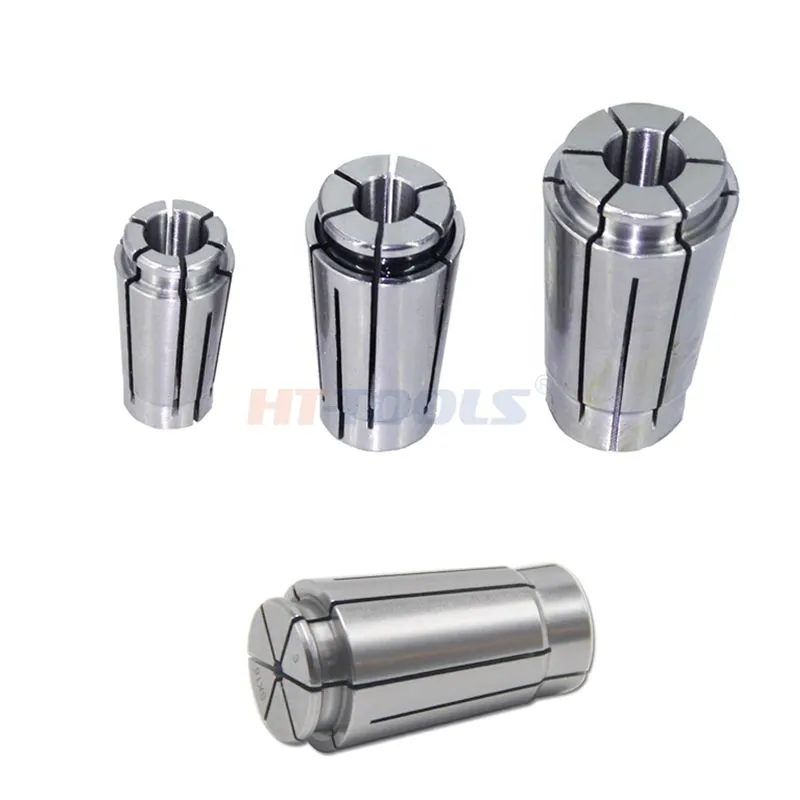

Slim elastic slit design delivers balanced clamping pressure
Nitrided anti-wear surface, anti-corrosion and long service life
Compact outer profile, avoids spindle interference during deep cavity machining
Quick tool swap, stable grip for small-diameter precision cutters

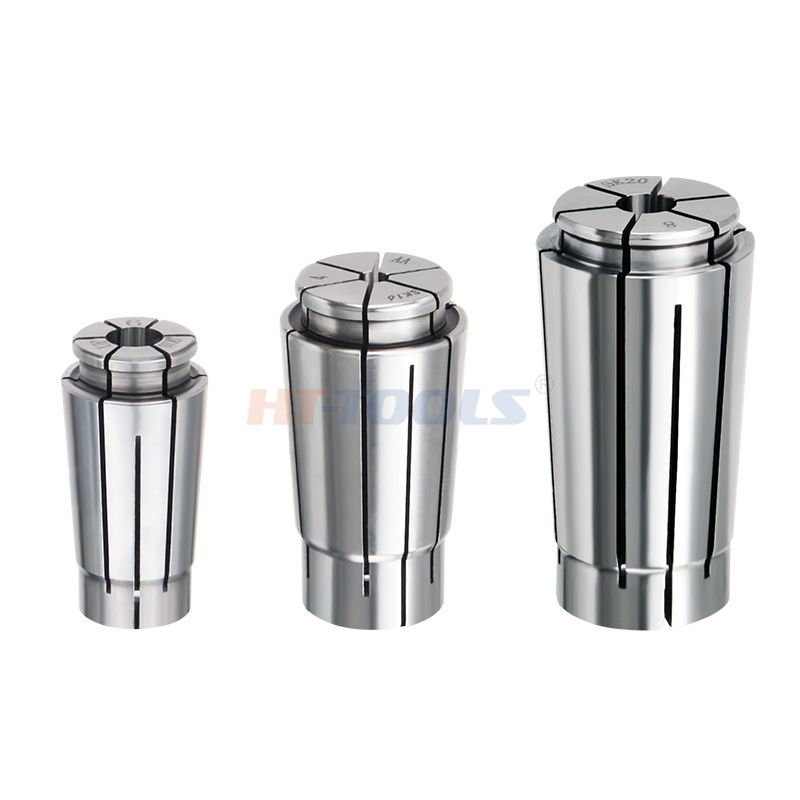

Engineered for high-speed precision finishing & die machining.
Ultra-low runout guarantees consistent machining accuracy.
Widely adopted in automated workshops for mold, auto, aerospace and electronic precision parts.
Ideal for both ferrous and non-ferrous metal high-efficiency processing.
