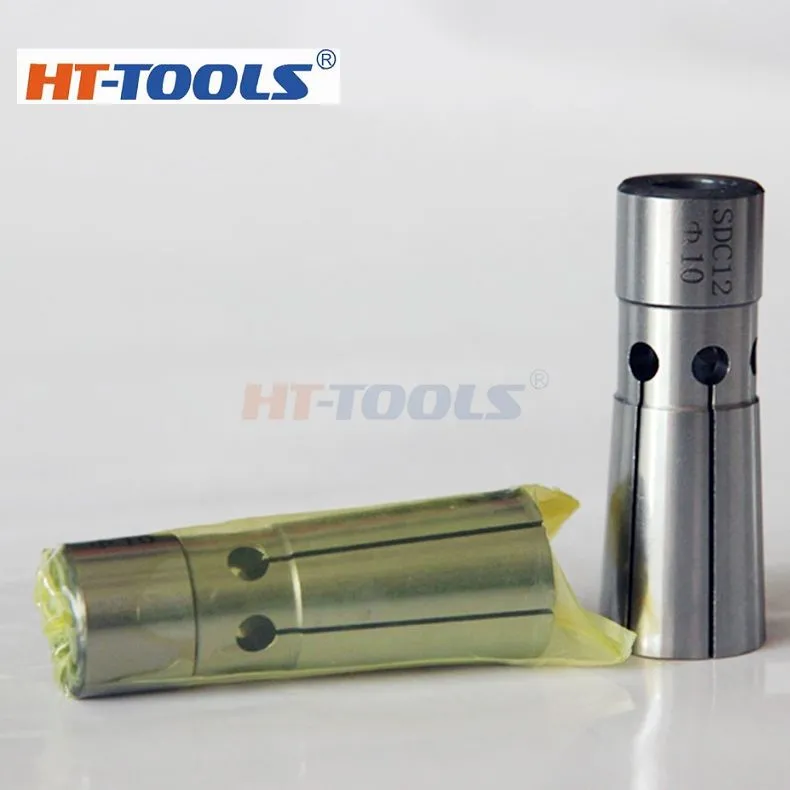

SDC Collet

Material: SUJ2

Hardness: HRC46

Accuracy: less than 5μ(4D length)

Limit the tool shank diameter with the same clamping aperture

The collet does not have an elastic shrinkage range, emphasizing the clamping force

Product Details


TypeSizeDdL I1I2TWeight(KGS)
SLC-123,4,5,6,8,10,121814.55725.4531.55M10*1.5P0.18
SLC-203,4,5,6,8,
10,12,16,20
2721703535M12*1.75P0.2



SDC spring collets are professionally designed for heavy-duty rough machining and high-precision finishing. With stable clamping rigidity and outstanding concentricity, they perfectly cooperate with standard SDC tool holders.

They are widely installed on vertical machining centers, high-efficiency mold processing machines and automated production lines. Capable of machining stainless steel, alloy steel, aluminum alloy and other metal workpieces. Mainly applied in precision injection molds, automotive structural parts, aerospace components, hydraulic fittings and electronic precision hardware, improving processing stability and cutting tool service life.
