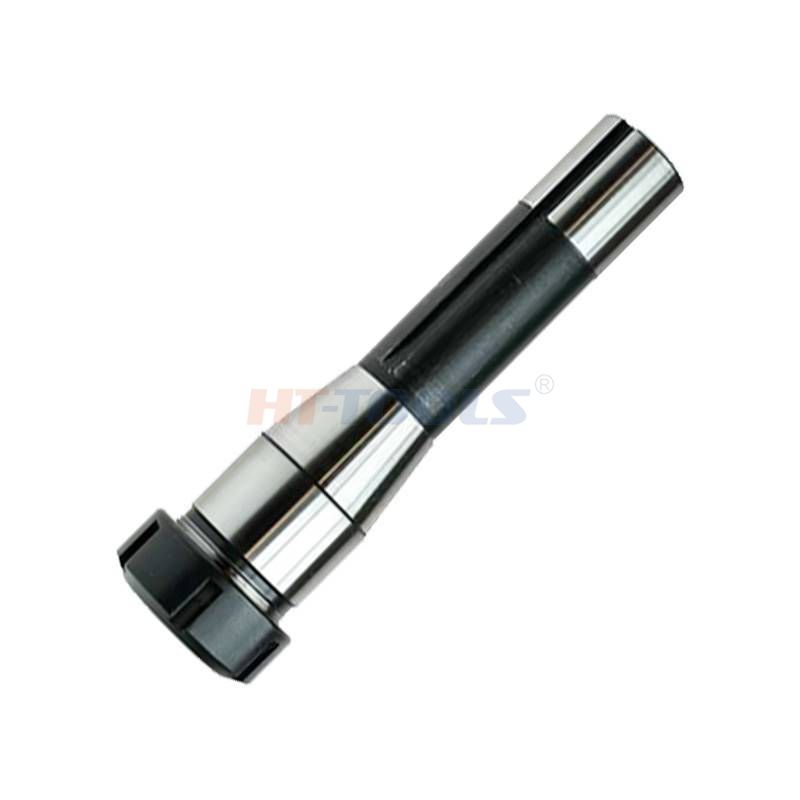

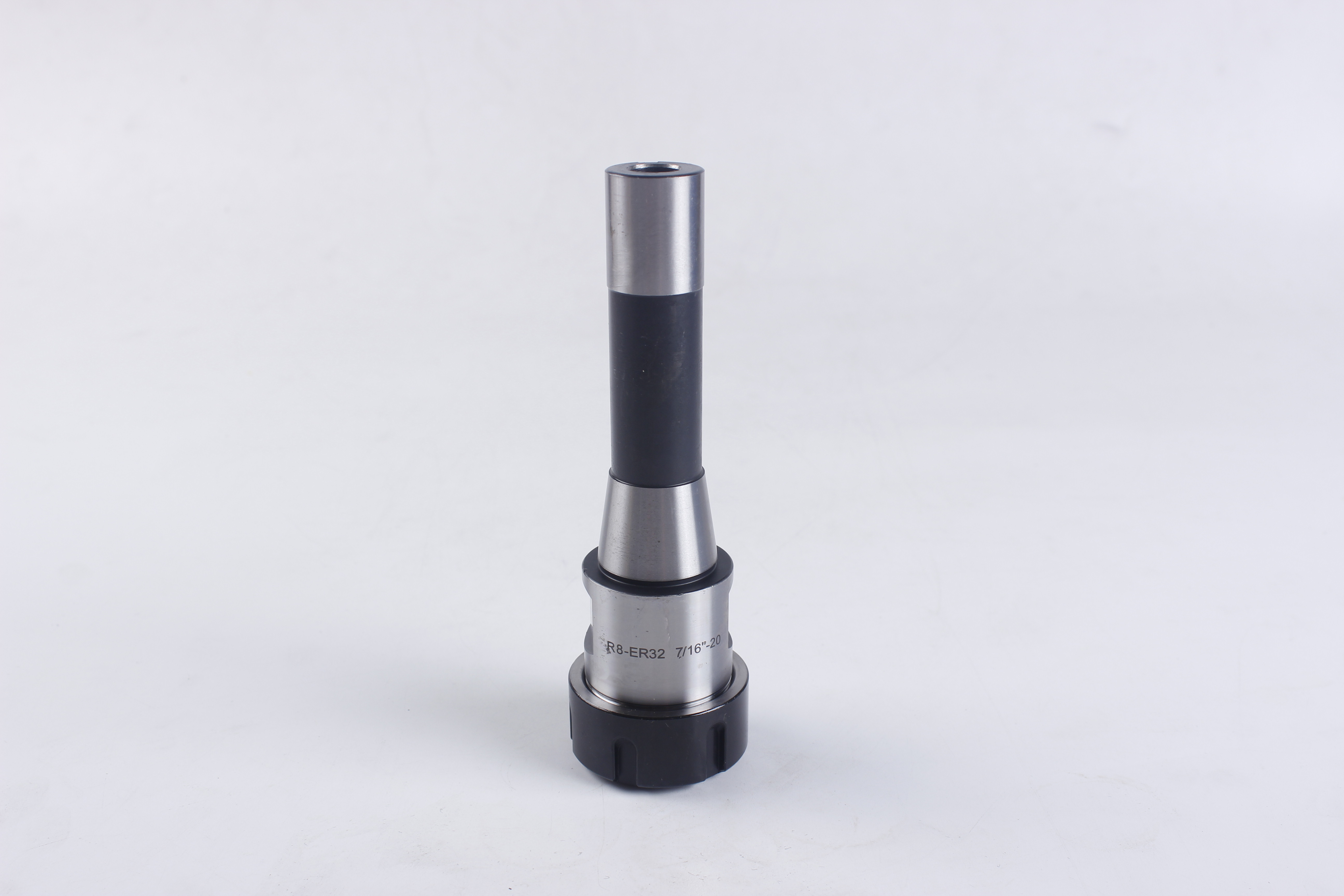

R8 Taper Collet Chuck

Material: 40Cr

Hardness: HRC48-52

Accuracy: 0.005mm

Package: Plastic box

Type: R8xER11 R8xER16 R8xER20 R8xER25 R8xER32 R8xER40

Mini order quantity: 10pcs

Next Product Inquire Now

Product Details

HT-0016	R8-Kegelspannzange
Order No.	d	D	L1
R8×ER11	1-7	19	34.7
R8×ER16	1-10	28	43.7
R8×ER20	1-13	34	46.5
R8×ER25	1-16	42	49.7
R8×ER32	2-20	50	63
R8×ER40	3-26	63	72

Advantages

Quick tool change without extra locking nuts
High concentricity, stable clamping rigidity
Universal fit for most vertical milling machines
Compact structure, easy operation & cost-effective

Applications

Standard accessory for vertical knee mills, bench milling machines.

Widely used in mold processing, mechanical repair, small batch precision hardware, aluminum & steel part fabrication.
