Material: 40Cr
Hardness: HRC48-52
Accuracy: 0.005mm
Package: Plastic box
Type: MS2 MS3 MS4 MS5
Mini order quantity: 10pcs
Brand: HT-TOOLS
Product Details

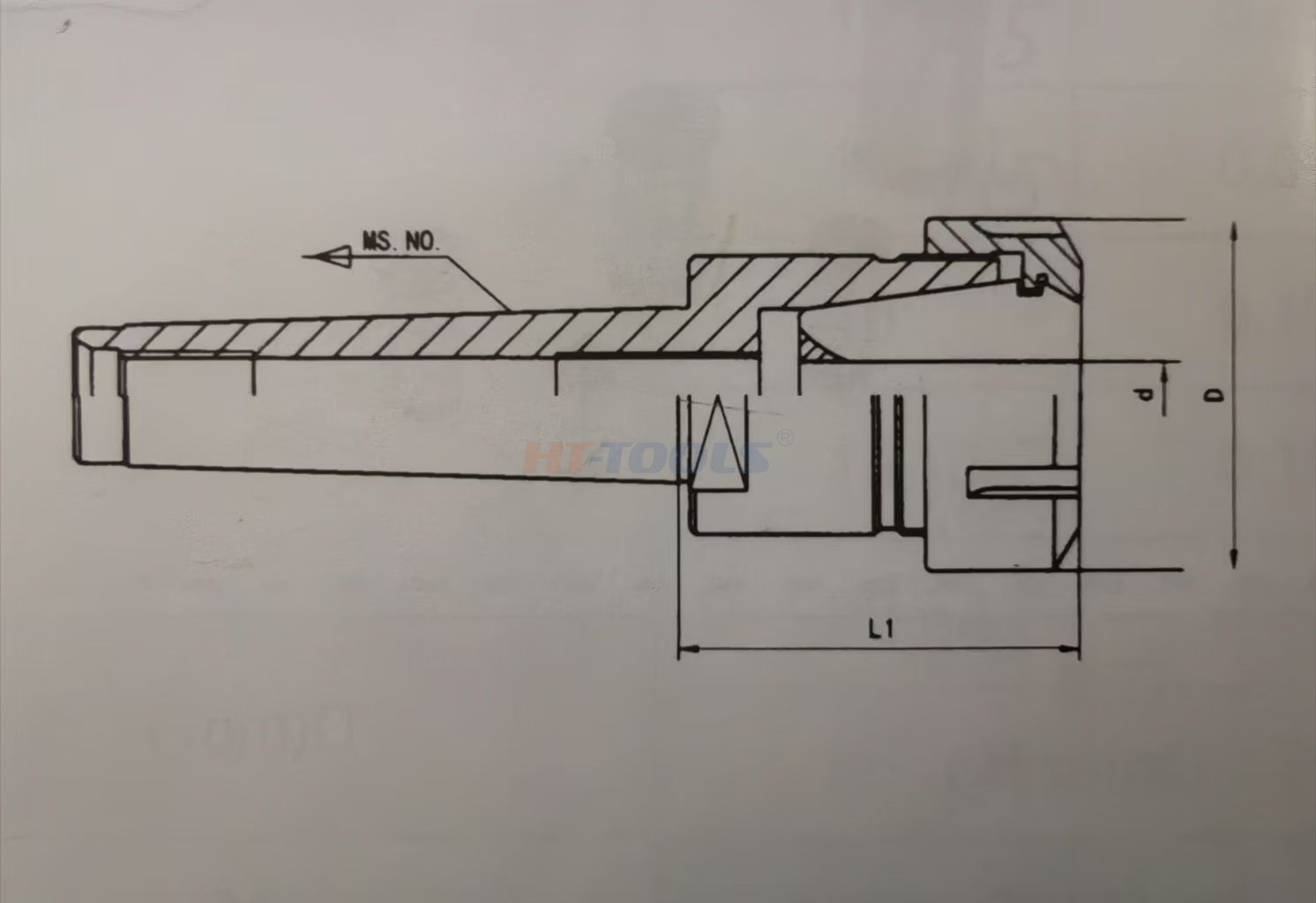

| Order No | Ms. No | d | D | L1 |
| MS2XER11 | MS2 | 1-7 | 19 | 35.3 |
| MS2XER16 | MS2 | 1-10 | 28 | 44.3 |
| MS2XER20 | MS2 | 1-13 | 34 | 53.3 |
| MS2XER25 | MS2 | 1-16 | 42 | 57.7 |
| MS3XER16 | MS3 | 1-10 | 28 | 49.3 |
| MS3XER20 | MS3 | 1-13 | 34 | 56.2 |
| MS3XER25 | MS3 | 1-16 | 42 | 55.7 |
| MS3XER32 | MS3 | 2-20 | 50 | 65.7 |
| MS3XER40 | MS3 | 3-26 | 63 | 71.7 |
| MS4XER16 | MS4 | 1-10 | 28 | 46.5 |
| MS4XER20 | MS4 | 1-13 | 34 | 51.7 |
| MS4XER25 | MS4 | 1-16 | 42 | 46.7 |
| MS4XER32 | MS4 | 2-20 | 50 | 74.2 |
| MS4XER40 | MS4 | 3-26 | 63 | 69.7 |
| MS5XER40 | MS5 | 3-26 | 63 | 69.2 |
| MS5XER50 | MS5 | 6-34 | 78 | 85 |
Other Products
Used for boring, milling, drilling, tapping, grinding and engraving operation, etc.
5c Collet Square Hex 5C Collet Chuck For Lathe
This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
EOC nut has high rigidity,strong clamping force,convenient for engraving machine,spindle machine,extension shank,locking spring collet.
