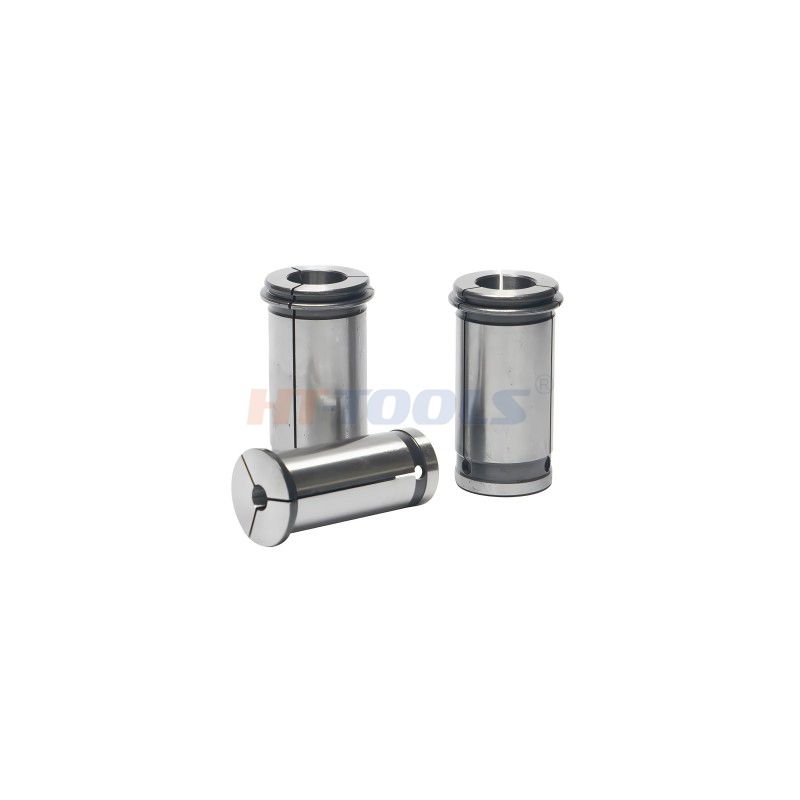

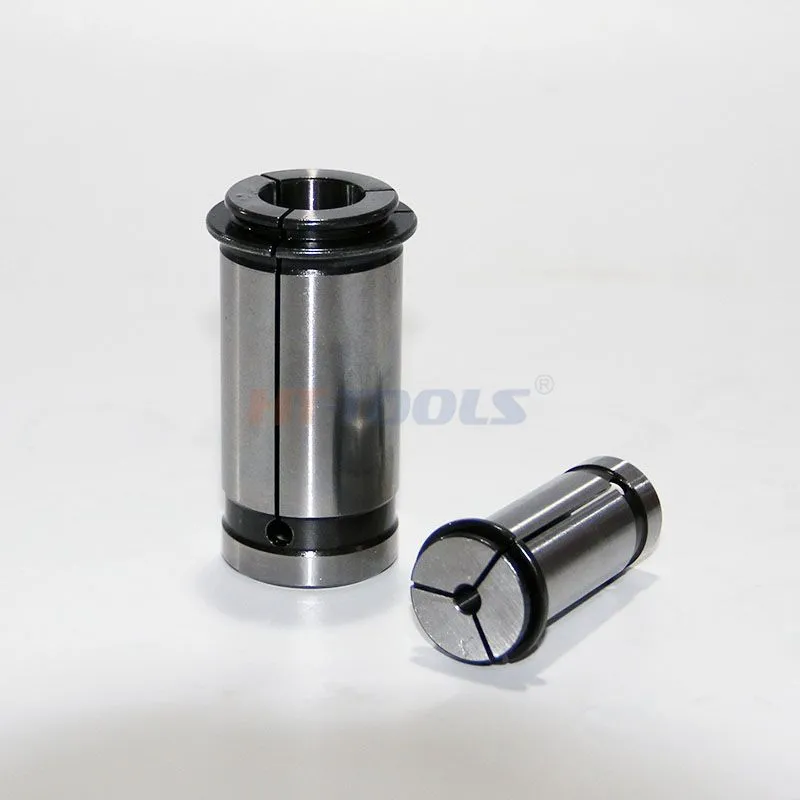

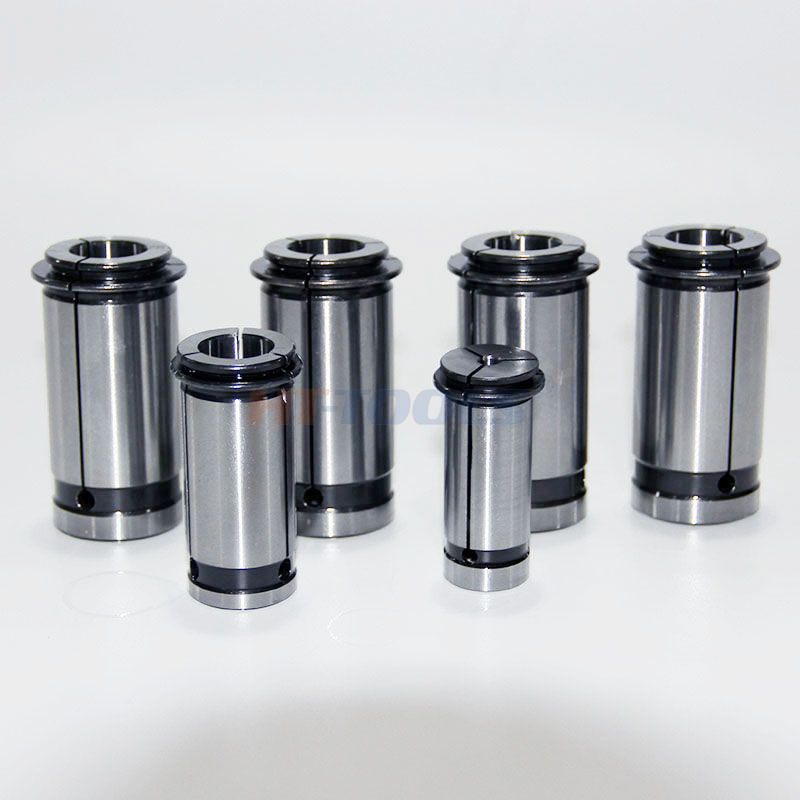

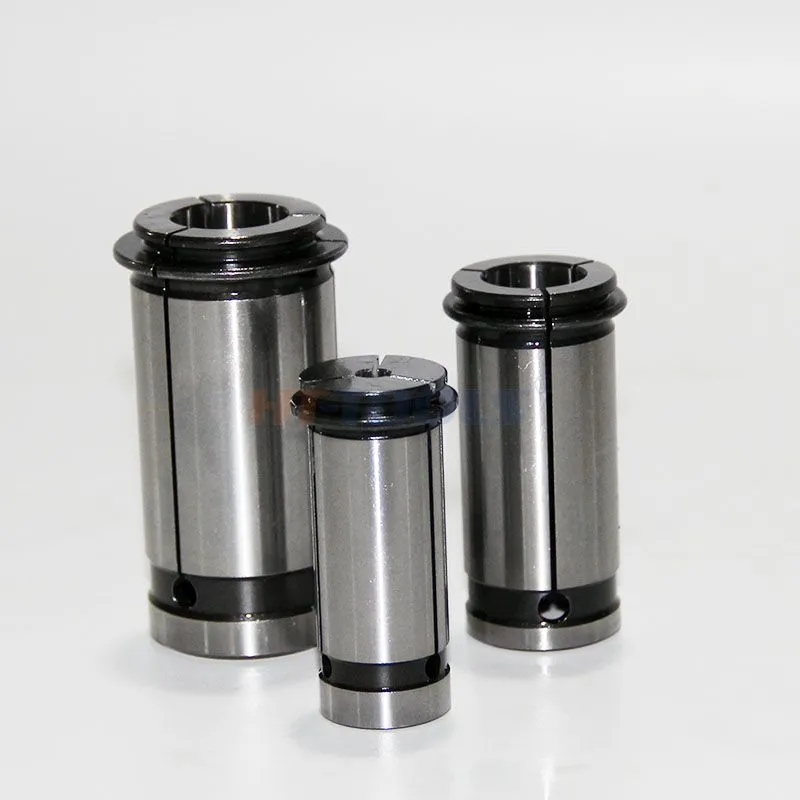

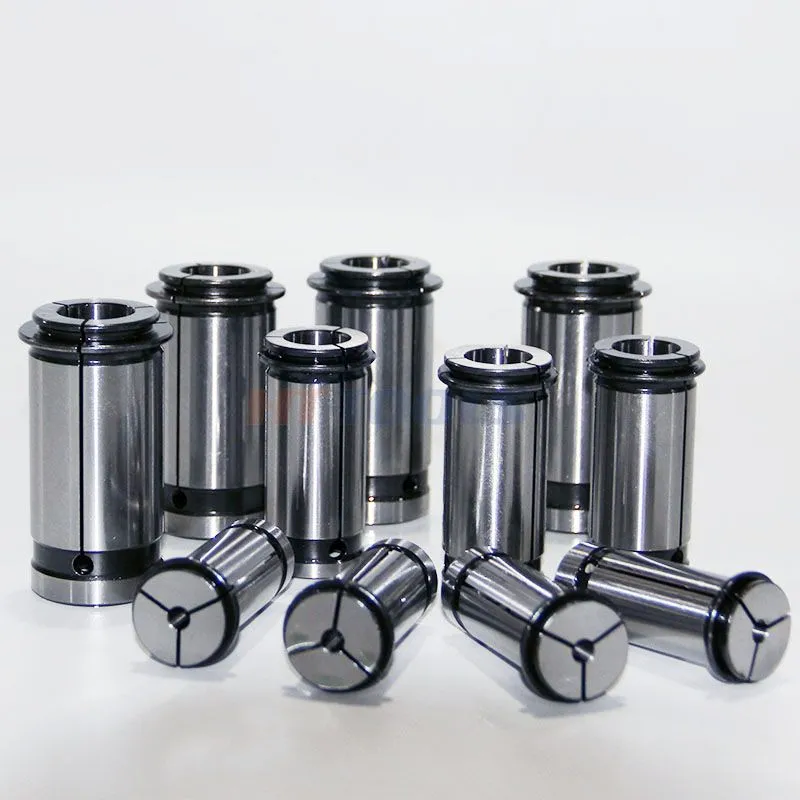

JM71 Straight Shank Collets

Material: 65Mn

Hardness: HRC44-48

Taper: 16mm 22mm 20mm 25mm 32mm 42mm 40mm

Accuracy: 0.015mm

Mini order quantity: 10pcs

Package: Plastic box

Brand: HT-TOOLS

Next Product Inquire Now

Product Details

HT-0015	JM71 Straight Schaft Kollektionen
Order No.	D1 (mm)	D2 (mm)	L (mm)
JM7112	16	4-12	45
JM7116	22	4-16	55
JM7116A	20	4-16	50
JM7120	25	4-20	60
JM7125	32	4-25	65
JM732	42	6-32	80
JM7132A	40	6-32	80

Other Products

Taper: MS1 MS2 MS3 MS4

Used for boring, milling, drilling, tapping, grinding and engraving operationetc.

This unit is applicable to all sorts of milling machines, which spindle taper hole is R8, such as X6325, X5325 etc.

Type: R8xER11 R8xER16 R8xER20 R8xER25 R8xER32 R8xER40

It is used for the cutting tools like dills, taps mills and reamers Only for cutting tools that the shank diameter same as collet's hole diameter.

Type: EOC16B EOC20B EOC25B EOC32B EOC40B EOC50B This unit is used for boring,milling,drilling,tapping,grinding and engraving operation etc.

EOC nut has high rigidity,strong clamping force,convenient for engraving machine,spindle machine,extension shank,locking spring collet.

Size: 161E 163E 171E 173E 177E 185E 193E

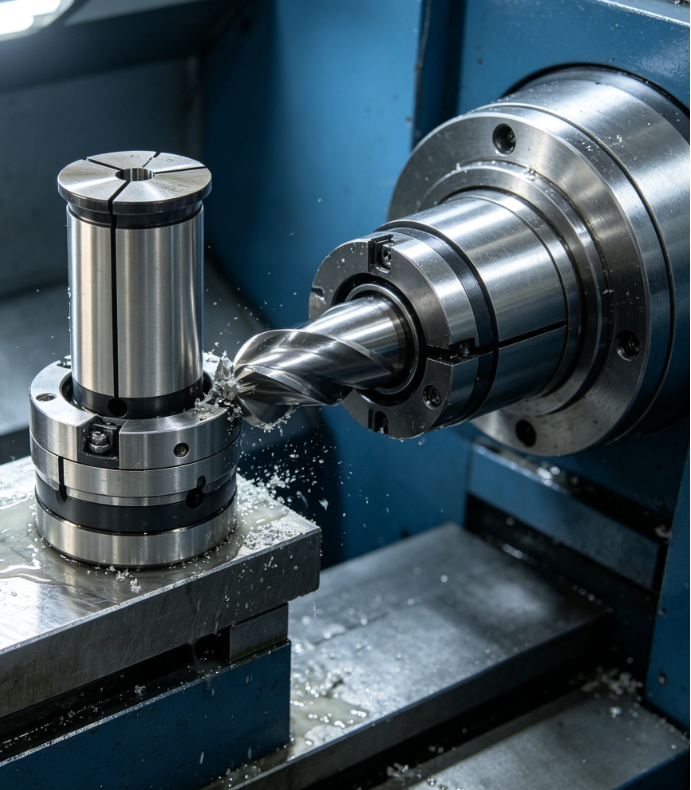

Application
