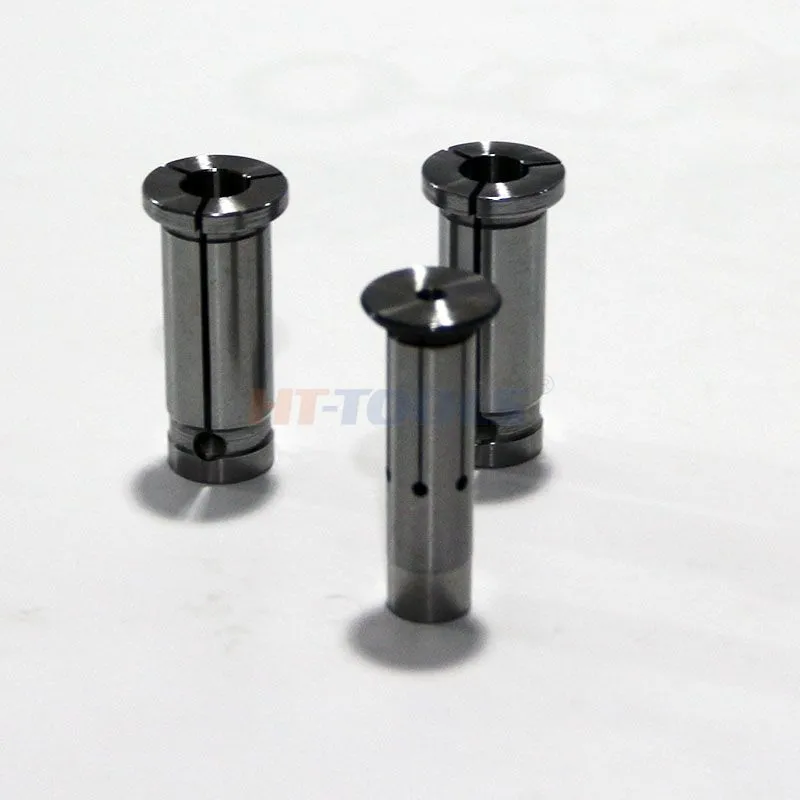

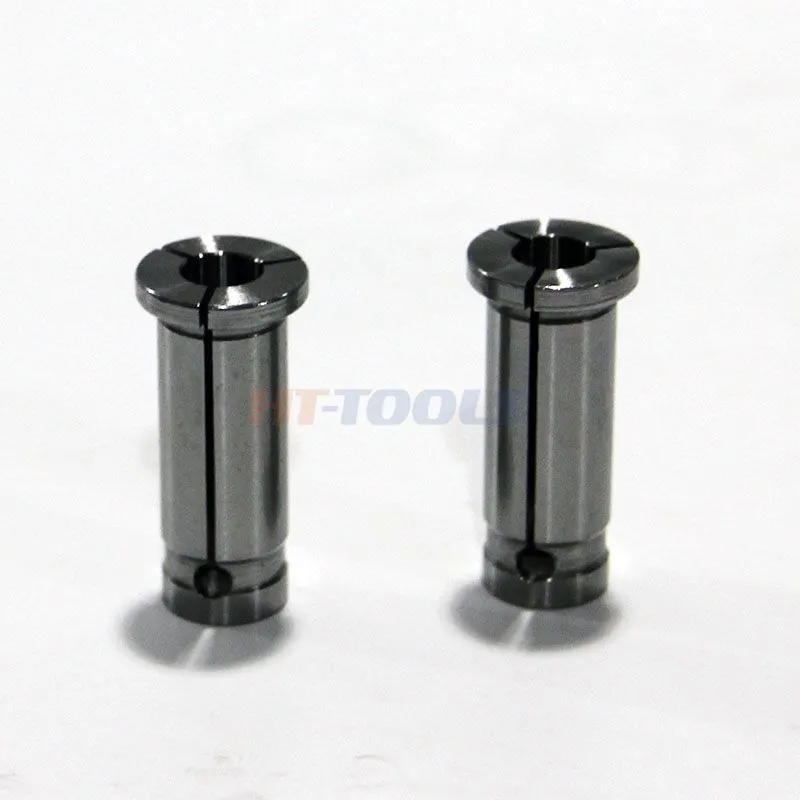

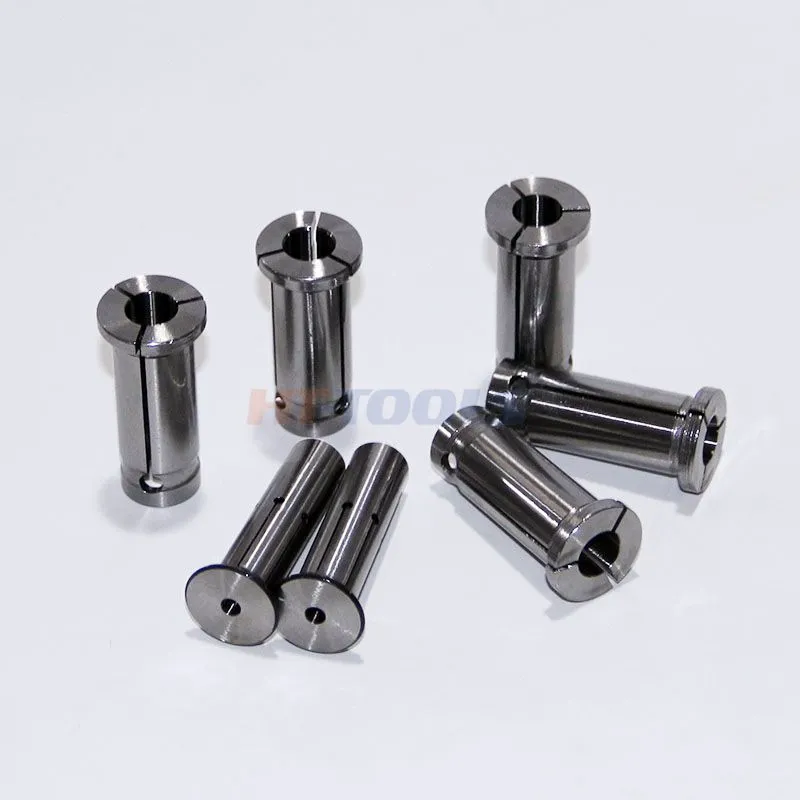

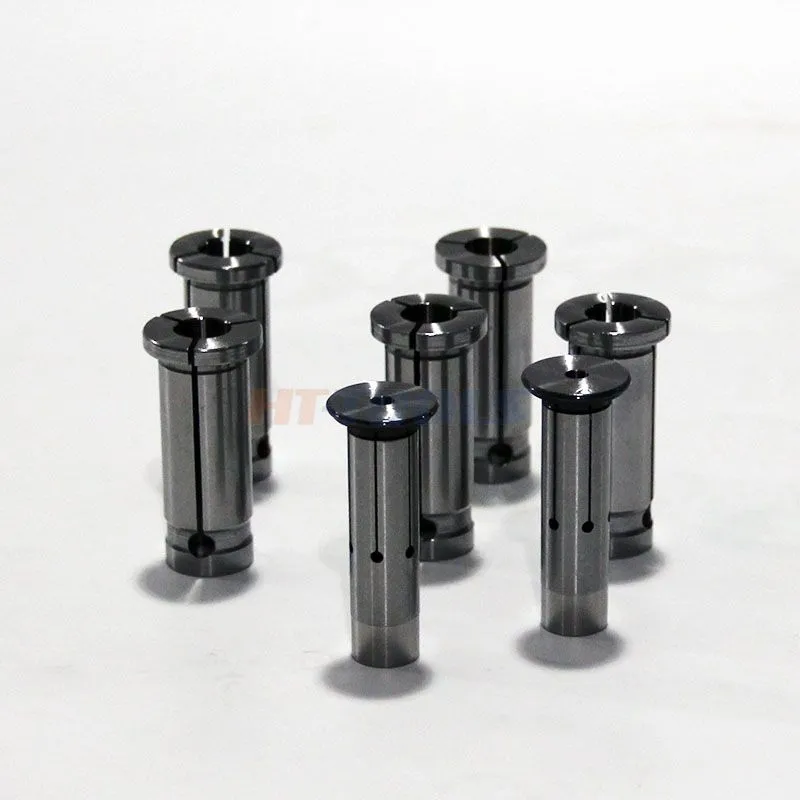

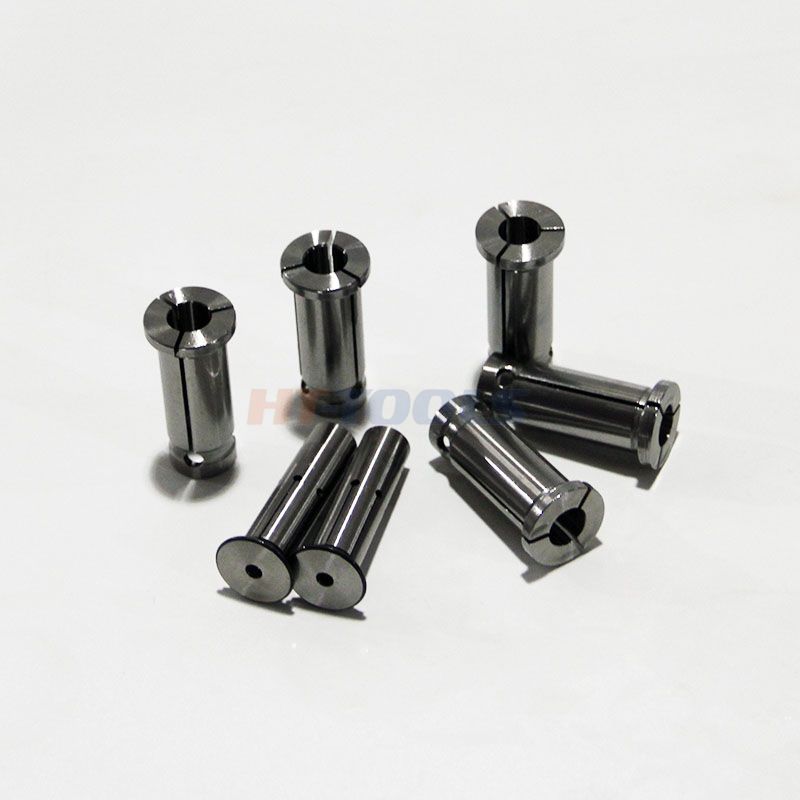

High Precision Hydraulic Reducer use with hydraulic collet chuck

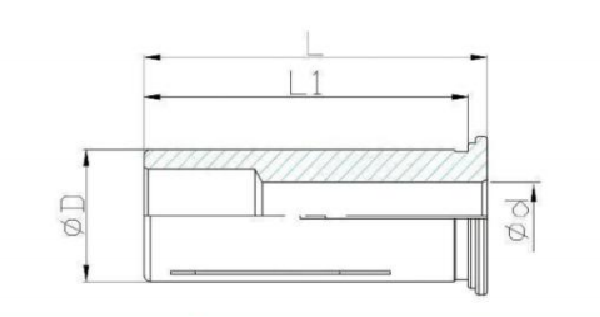

| 型号 | Ød | D | L | L1 |
| HC12-3 | 3 | 12 | 47 | 45 |
| HC12-4 | 4 | |||
| HC12-5 | 5 | |||
| HC12-6 | 6 | |||
| HC12-8 | 8 | |||
| HC20-3 | 3 | 20 | 53.5 | 50.5 |
| HC20-4 | 4 | |||
| HC20-5 | 5 | |||
| HC20-6 | 6 | |||
| HC20-7 | 7 | |||
| HC20-8 | 8 | |||
| HC20-9 | 9 | |||
| HC20-10 | 10 | |||
| HC20-11 | 11 | |||
| HC20-12 | 12 | |||
| HC20-13 | 13 | |||
| HC20-14 | 14 | |||
| HC20-15 | 15 | |||
| HC20-16 | 16 | |||
| HC32-6 | 6 | 32 | 64.5 | 61 |
| HC32-7 | 7 | |||
| HC32-8 | 8 | |||
| HC32-9 | 9 | |||
| HC32-10 | 10 | |||
| HC32-11 | 11 | |||
| HC32-12 | 12 | |||
| HC32-13 | 13 | |||
| HC32-14 | 14 | |||
| HC32-15 | 15 | |||
| HC32-15.6 | 15.6 | |||
| HC32-16 | 16 | |||
| HC32-17 | 17 | |||
| HC32-18 | 18 | |||
| HC32-19 | 19 | |||
| HC32-20 | 20 | |||
| HC32-25 | 25 |
