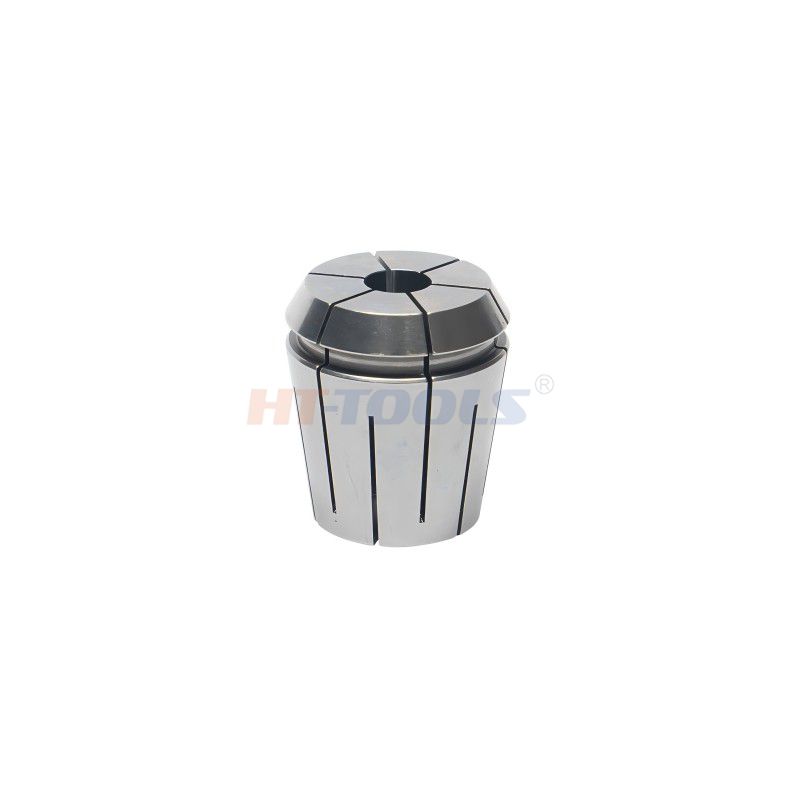

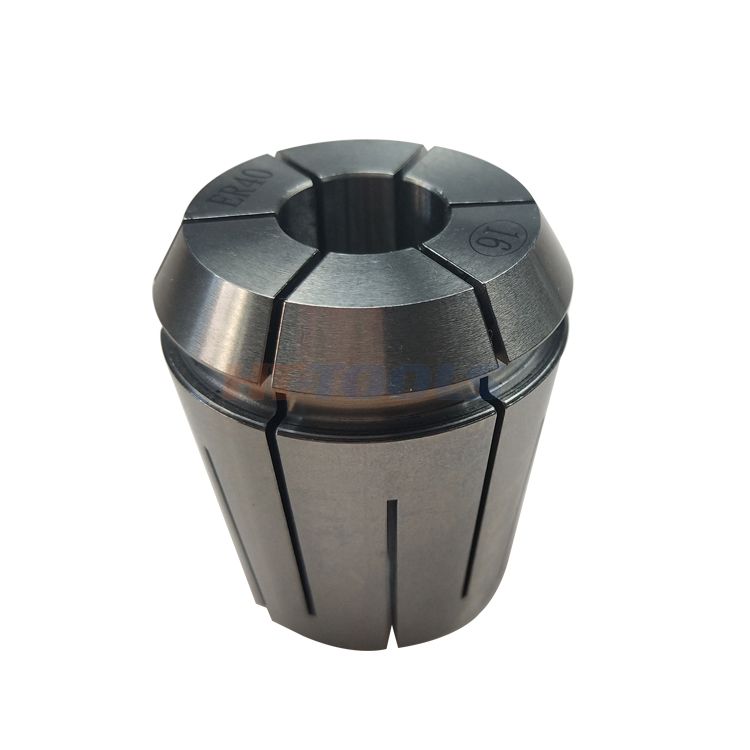

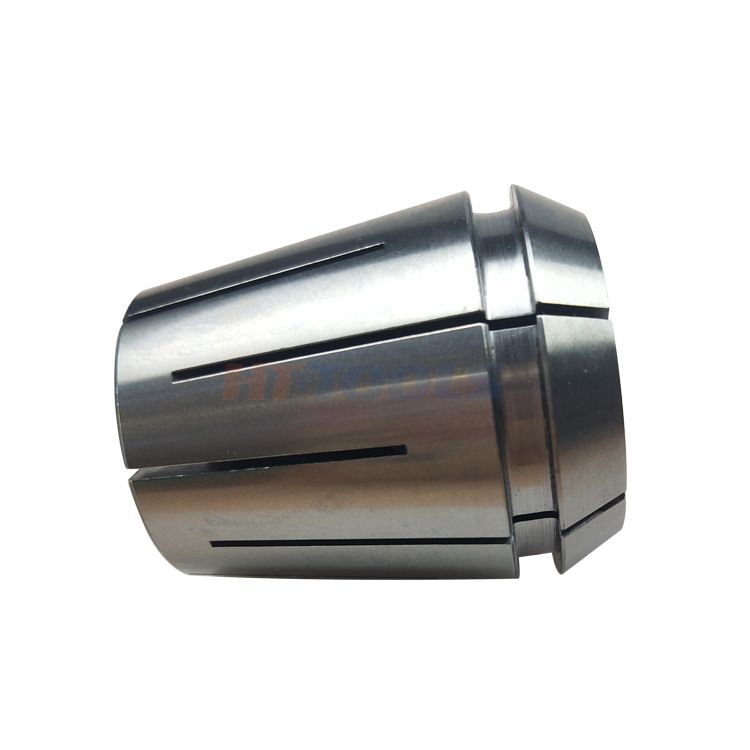

ERH Collet

HT-000305

Material: SUJ2

Hardness: HRC44-48

Differences in the use of grooves to reach around the sealing

Central water feature only applies to folders to hold the water hole tool

Can with stand water pressure 7Mpa

Non-standard holes can be customized

Next Product Inquire Now

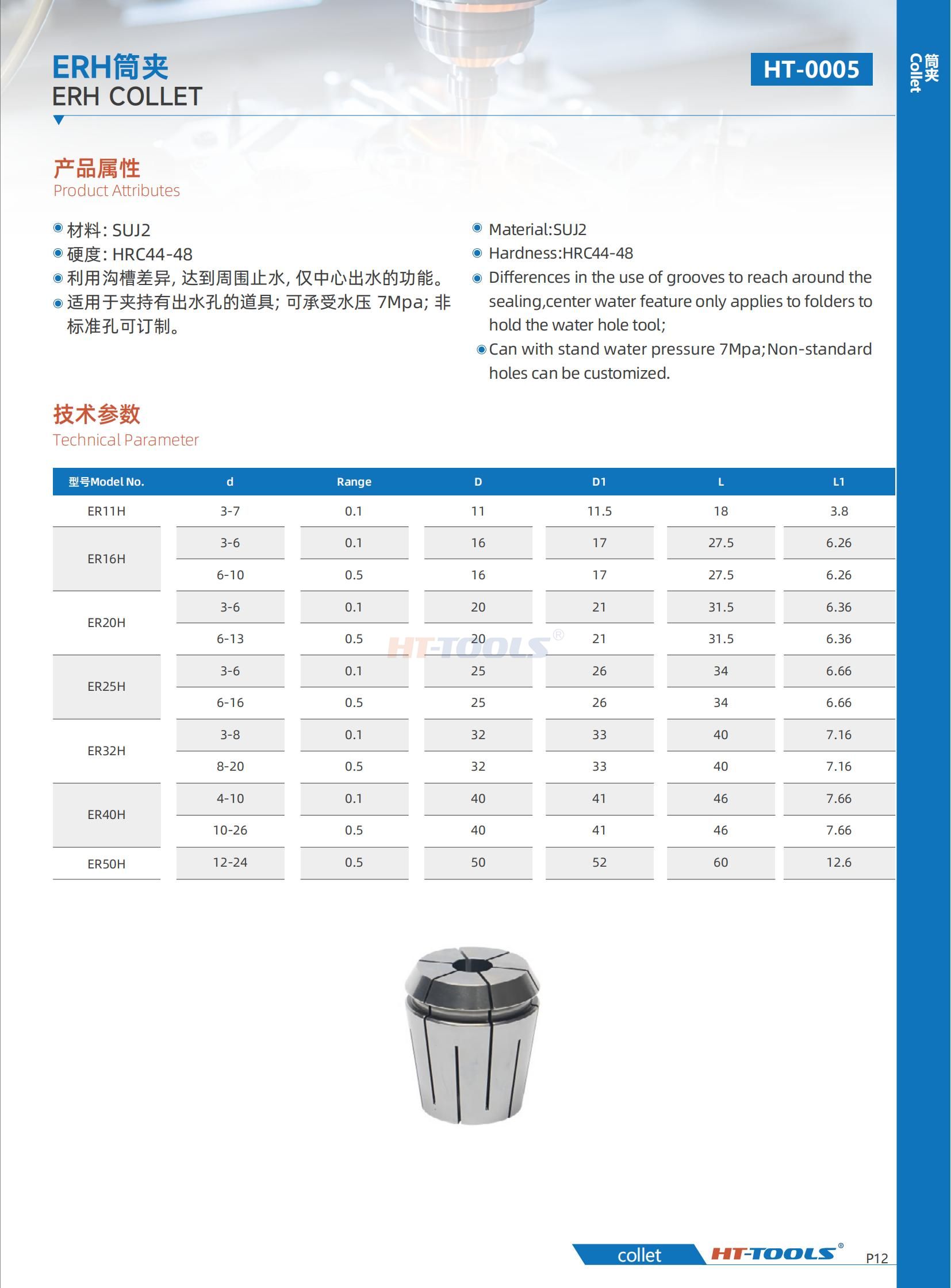

Product Details

Model No	d	Range	D	D1	L	L1
ER11H	3-7	0.1	11	11.5	18	3.8
ER16H	3-6	0.1	16	17	27.5	6.26
	6-10	0.5
ER20H	3-6	0.1	20	21	31.5	6.36
	6-13	0.5
ER25H	3-6	0.1	25	26	34	6.66
	6-16	0.5
ER32H	3-8	0.1	32	33	40	7.16
	8-20	0.5
ER40H	4-10	0.1	40	41	46	7.66
	10-26	0.5
ER50H	12-24	0.5	50	52	60	12.6

ERH water sealed collets adopt reliable internal cooling sealing design to effectively prevent coolant leakage and pressure loss during high-speed machining. Compatible with all standard ER tool holders with through-coolant function.

Suitable for vertical machining centers, composite drilling-tapping machines and CNC turning-milling machines. Excellent for continuous mass processing of alloy steel, stainless steel, aluminum alloy and copper workpieces. Mainly applied in automotive components, injection molds, aerospace precision parts, hydraulic fittings and medical hardware, delivering stable cooling effect, longer tool life and superior surface finish.
