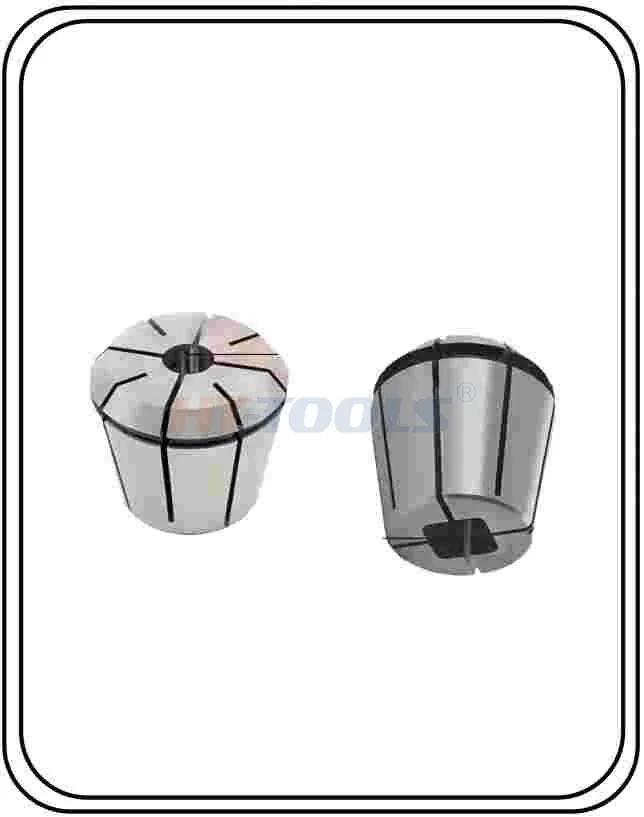

ERG Tapping Collet

Material: 65Mn

Hardness: HRC44-48

Usage: Workholding

Package: Plastic Box

Type: ERG40 ERG32 ERG25 ERG20 ERG16 collet




Product Details

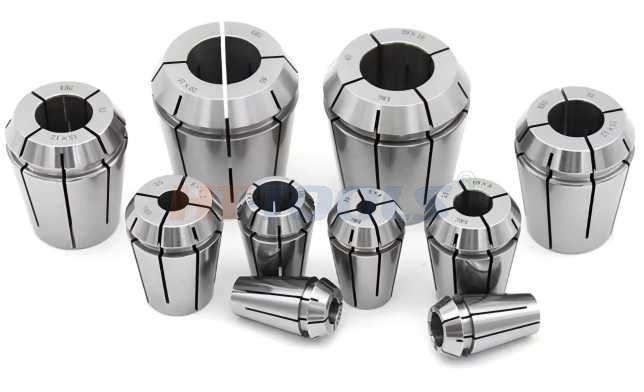

ERG Collets

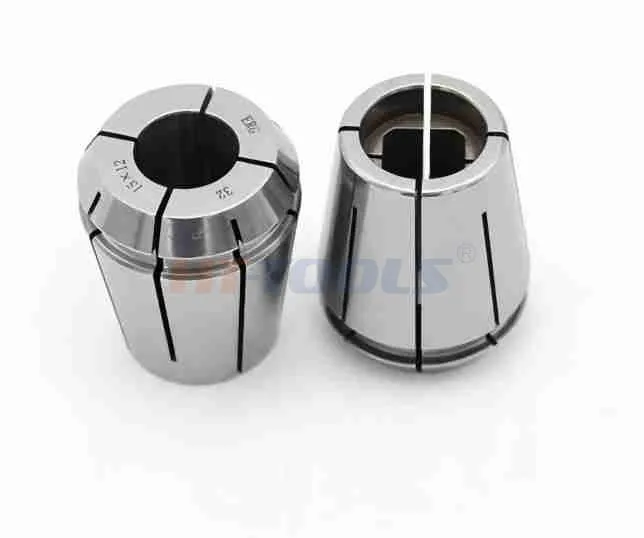

1. Rigid tapping chuck, rely on the quartet to prevent the tap slip

2. Used for ordinary ER type tool shanks, also can be used on the special tool shanks



Mounting instruction for ER collets and nuts

1. Put the  collet into the nut, tum the collet sighly, pust it into the nut at ghe offered direction evenly, When the offset flange into the undercut of the collet.

2. Fix the nut and the collet on the spindle rotate the nut until the collet is in pressing. Wipe the straight shank of cutter, and insert it into the pilot hole, Tighten the unt with a wrench till the cutter is clamped heavily (Caution: never tighten the nut without cutter in it for it will break).

3. When changing the tool, Loosen the nut and it shall bring out the collet and the cuter together, and then draw the cuter out push out slightly the collet in the offered direction, it shall be ready for any change of the cutter.

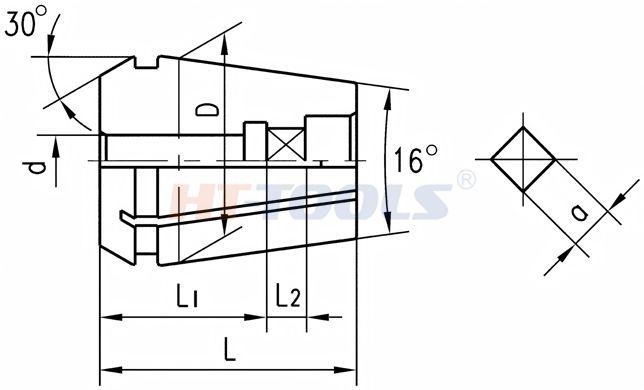

ERG Tapping Collet

Order NoER16G-dER20G-dER25G-dER32G-dER40G-d
D1620253240
L27.531.5344046
d3.5-83.5-103.5-163.5-203.5-25
dxa3.5×2.74.0×3.04.5×3.45.5×4.36.0×4.97.0×5.5
8.0×6.29.0×7.010×8.011×9.012×9.014×11
16×1218×14.520×1622×1825×20


Optimized for high-rigidity tapping processes across automated CNC workshops.

Fit machining centers, tapping centers and milling lathes for mass precision threading.

Core coverage: aerospace, auto parts, mold manufacturing, hydraulic components & medical precision hardware.

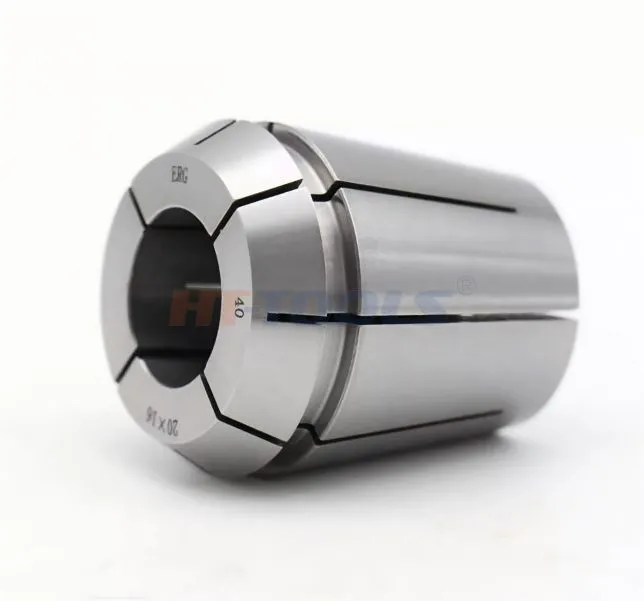

Square anti-slip drive guarantees zero tap slippage, stable torque and superior thread finish for ferrous & non-ferrous metal machining.


Other Products

ERH Collet

ERH Collet

Differences in the use of grooves to reach around the sealing

SK Collet

SK Collet

It is used for the cutting tools like dills, taps mills and reamers Only for cutting tools that the shank diameter same as collet's hole diameter.

ERC Sealed Collets

ERC Sealed Collets

Material: High quality spring steel 65Mn

5c Collet  Square Hex 5C  Collet Chuck For Lathe

5c Collet Square Hex 5C Collet Chuck For Lathe

This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
