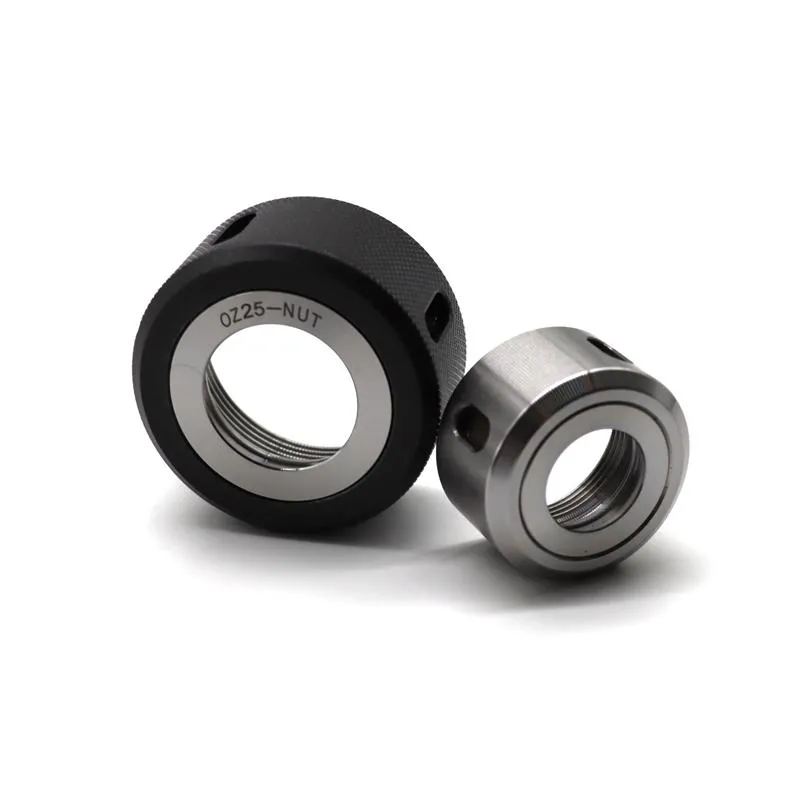

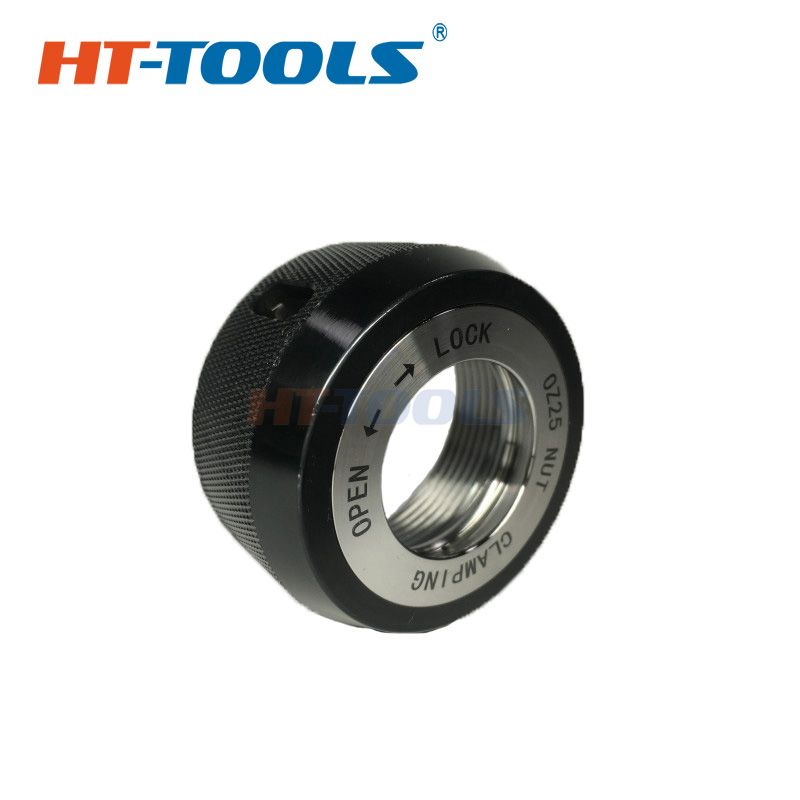

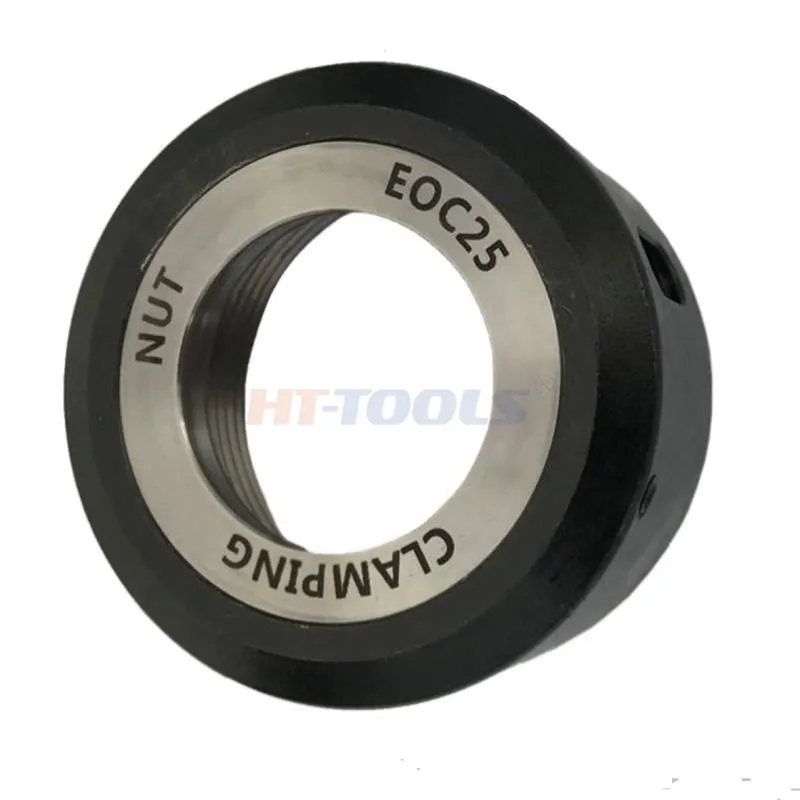

EOC nut has high rigidity,strong
Raw Material: Premium 40Cr / 42CrMo alloy steel
Heat Treatment: Integral quenching, hardness up to HRC 48~55
Processing: Full CNC precision turning + fine grinding thread, thread tolerance strictly controlled, smooth rotation without jamming
Surface Treatment: Black oxidation anti-rust treatment, wear-resistant & corrosion resistant

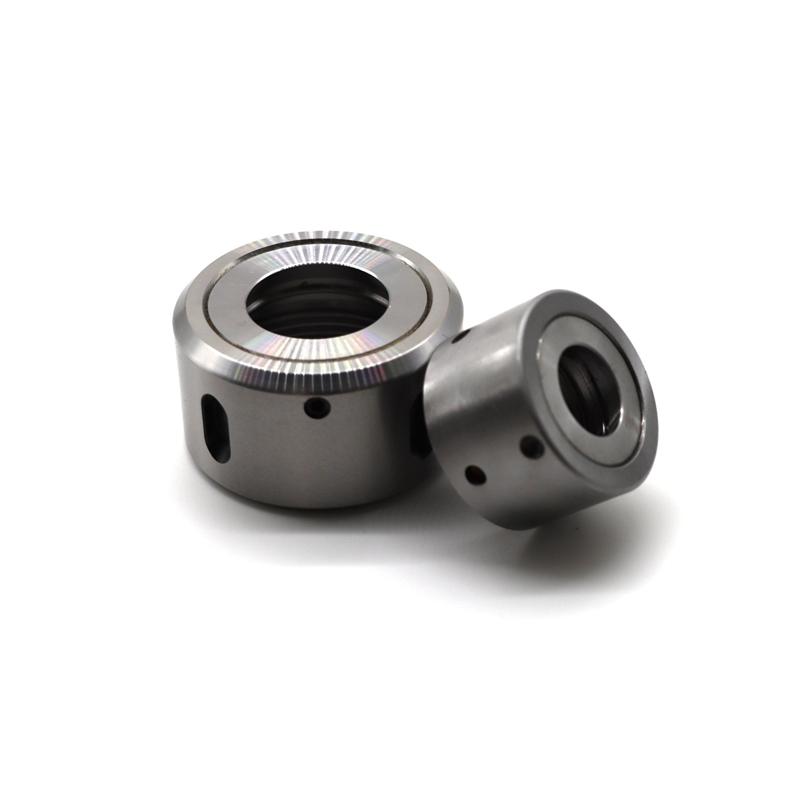

Built-in Ball Bearing Design
Low rotational resistance when screwing, no bite thread, effectively avoid nut thread abrasion and tool shank slipping during heavy cutting.
Super Strong Clamping Force
Square thread structure supports high tightening torque, collet shrinks evenly, clamping stability far exceeds ordinary ER nuts, greatly reduce tool breakage rate.
High Dynamic Balance Performance
Standard dynamic balance G6.3, max applicable speed up to 18000rpm, low vibration, guarantee machining dimensional accuracy and surface finish.
Wide Compatibility
Perfectly match DIN6388 standard EOC/OZ collets, compatible with BT30/BT40/BT50, SK, NT, MT series EOC tool holders.
Durable Service Life
High hardness alloy steel + anti-oxidation coating, resist high load extrusion and long-term frequent disassembly.
clamping force,convenient for engraving machine,spindle machine,extension shank,locking spring collet.
Product Detail

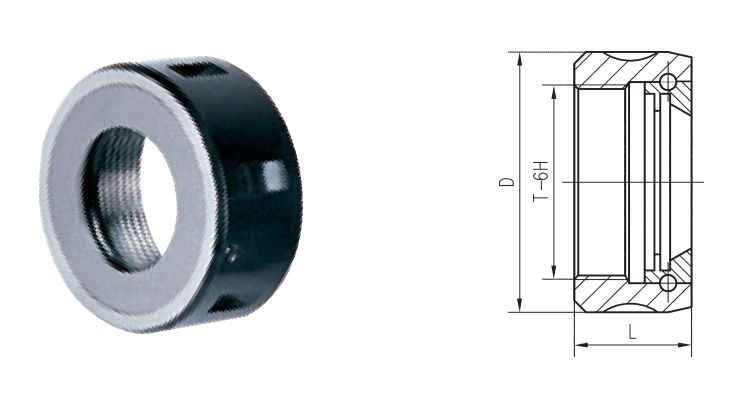

Order No. | D mm | L mm | T |
| YMEOC6 | 18 | 14 | M14×1 |
| YMEOC8 | 26 | 19 | M20×1.5 |
| YMEOC10 | 30 | 19 | M22×1.5 |
| YMEOC12 | 35 | 20 | M27×1.5 |
| YMEOC16 | 43 | 24 | M33×1.5 |
| YMEOC20 | 50 | 28 | M42×2 |
| YMEOC25 | 60 | 30 | M48×2 |
| YMEOC32 | 72 | 33.5 | M60×2.5 |
| YMEOC40 | 85 | 37 | M68×2.5 |
| YMEOC50 | 100 | 43 | M80×2.5 |
A: EOC nut also called OZ ball bearing collet nut. It fits DIN6388 EOC/OZ collet chuck. Built-in ball bearings, it compresses EOC collet to clamp drills and milling cutters. High clamping force for heavy cutting, used for milling machine quick change chucks. Sizes: EOC16, EOC20, EOC25, EOC32.
A: EOC(OZ): with ball bearing, large clamping force for heavy cutting, wide clamping range. ER nut: no ball bearing, for light/medium finishing. Not interchangeable.
A: Nut must match EOC holder and EOC collet. EOC25 nut only works with EOC25 holder and EOC25 collet. Cross model not allowed.
A: Reduce friction, easier tightening, uniform pressure, anti-loose during heavy cutting.
A: Determined by matching EOC collet. EOC25:3–25mm; EOC32:4–32mm.
A: Chips on contact surface, worn collet, damaged nut, dirty tool shank. Clean and inspect parts.
A: Fit collet and tool, hand-screw nut then tighten with special wrench. Do not over-torque, avoid thread damage and ball jamming.
A: CNC machining center, conventional milling machine quick change chuck, for rough milling, heavy cutting and drilling.
A: Clean chips on thread and end face after use. Lubricate ball regularly. Never strike the nut. Replace if balls jam or thread damaged.
A: DIN6388 standard. Type A for slim collet; Type B for wide collet. A nut only for A collet, B nut only for B collet, cannot mix.
