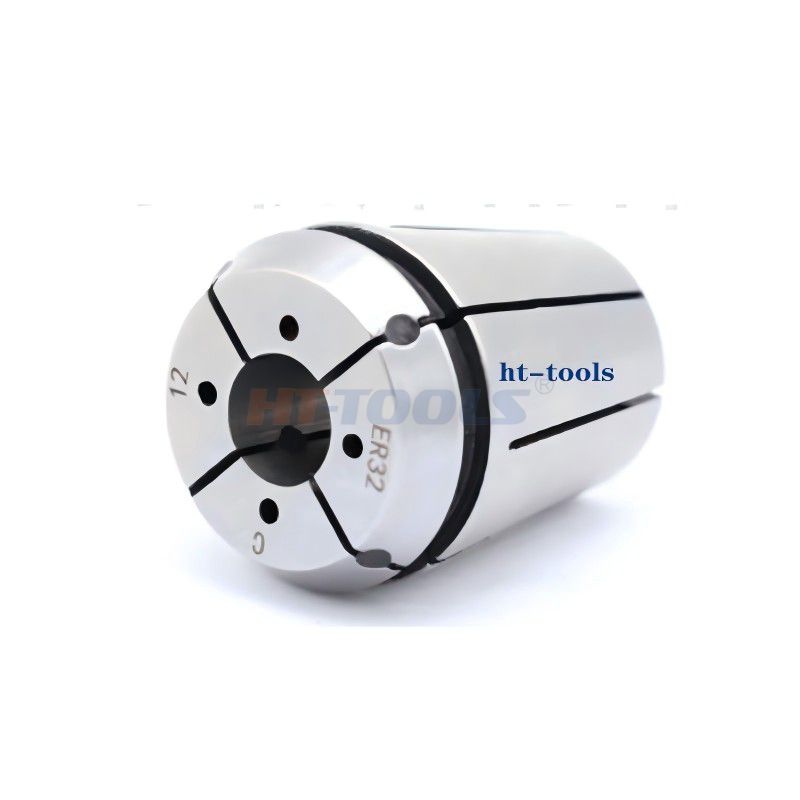

Material: 65Mn
Standard: DIN6499B
Accuracy<0.015mm
Hardness:HRC44-48
Product Details
| Order No | Numerical aperture(mm) | D | L | d |
| ER16S | 3-7 | 16.74 | 27.5 | 2-10 |
| ER20S | 3-9 | 20.74 | 31.5 | 2-13 |
| ER25S | 3-14 | 25.74 | 34 | 2-16 |
| ER32S | 3-20 | 32.74 | 40 | 2-20 |
| ER40S | 3-26 | 40.74 | 46 | 3-26 |
FAQ
Q1: What the collet used for?
A1: ERS collet is DIN6499B standard spring clamping component, widely used in CNC milling, lathe, engraving machine. It clamps cutting tools for high‑precision machining.
Q2: What is the monthly production volume of the collet?
A2: 10,000 - 20,000 pieces
Q3: What material, hardness and accuracy?
A3: Material: 65Mn spring steel.Accuracy: 0.015 mm TIR for selection.
Q4: What equipment is it compatible with?
A4: Complies with DIN6499B standard. Fits all standard ER tool holders, applicable for CNC machine, milling machine, engraving machine.
Q5: Do you support OEM & custom service?
A5: Yes. We support OEM, custom non‑standard size, laser logo, special package. Samples are available.
Q6: How can I get quotation?
A6: Send us your required model, quantity and special requirements for quotation.
Q7: What is your quality control process?
A7: Strictly controlled on heat treatment, precision grinding. Each piece inspected with testing equipment, inspection report can be provided upon request.
Q8: Any tips for proper selection?
A8: Select collet size close to tool shank diameter. Do not use at extreme clamping limit to guarantee accuracy and service life.
Q9: MOQ & lead‑time?
A9: Standard items: no strict MOQ, 3‑7 working days. Custom/OEM: MOQ 200pcs, 15‑25 working days.
Q10: Warranty terms?
A10: Manufacturing defects support replacement within 6 months. Damage from crash, misuse or normal wear is not covered.
Catalog is available for download.
https://www.httools.com/data/upload/main/20260730/6a6ab0277d331.pdf
Download
