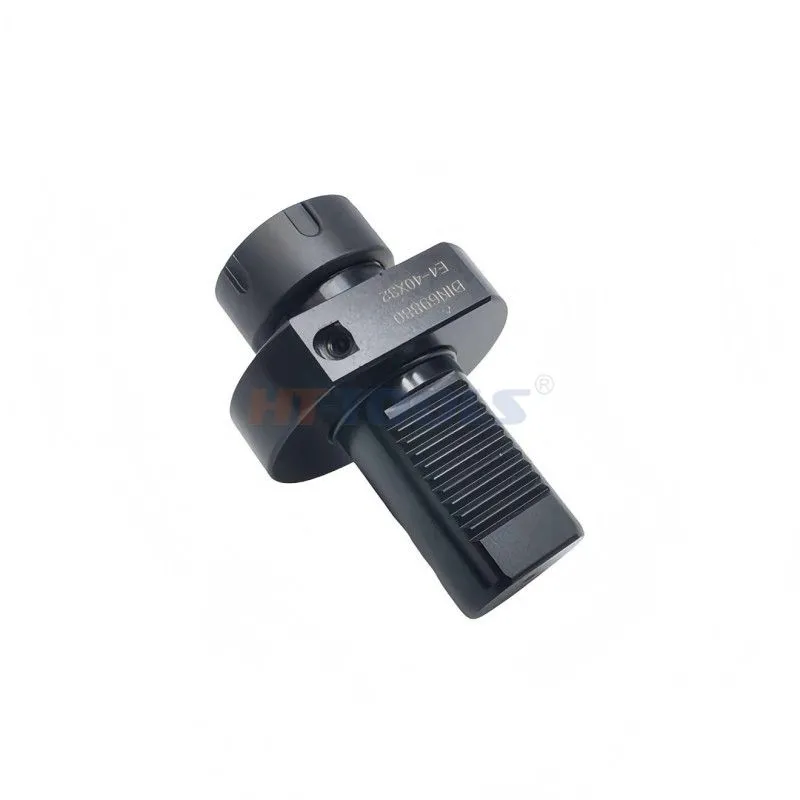

Made to DIN69880 standard, static ER collet VDI tool holder
Precision‑ground serrated VDI shank for stable turret mounting
Compatible with standard ER collets, wide clamping range
High‑rigidity alloy steel body, surface hardened
Internal coolant option available
For static drilling, tapping, milling on CNC lathe / turn‑mill machines
Fast tool change, easy installation & replacement
Excellent repeat positioning accuracy, low run‑out
Strong clamping rigidity, reduces tool vibration
Universal fit for most VDI turret lathes
Saves setup time, improves production efficiency
Heavy‑duty hardened construction for long service life
Supports multiple ER collet sizes for versatile jobs
Run‑out accuracy & repeatability
Compatibility with lathe turret (VDI size matching)
ER collet compatibility
Coolant through capability
Rigidity under heavy‑cutting load
Hardness & wear resistance
Correct mounting torque requirement
If you have any questions, feel free to reach out.
Media Contact:Alisa-Export Manager
Name: Alisa
Title: Export Manager
Phone/Whatapp/Wechat: +86‑15288891522
Email: ht06@ht-tools.net
alisa@httools.com

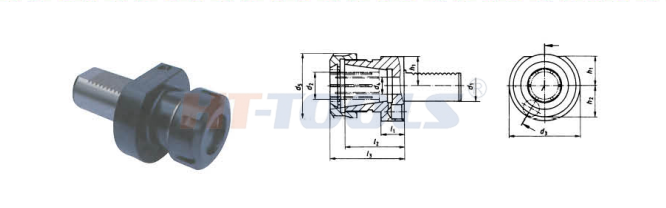

| Order No | d1 | ER Collet | d2 | d3 | d4 | d5 | h1 | h2 | l1 | l2 | l3 |
| E4-16X16 | 16 | ER16 | 1-10 | 40 | 6.7 | 28 | 18 | 18 | 13 | 39.8 | 50 |
| E4-16X20 | 16 | ER20 | 1-13 | 40 | 6.7 | 35 | 18 | 18 | 13 | 32 | 44 |
| E4-20X25 | 20 | ER25 | 2-16 | 50 | 9 | 42 | - | 23 | 18 | 38 | 50 |
| E4-20X32 | 20 | ER32 | 3-20 | 50 | 9 | 50 | - | 23 | 18 | 49.5 | 62 |
| E4-30X25 | 30 | ER25 | 2-16 | 68 | 16.5 | 42 | 28 | 30 | 22 | 45 | 57 |
| E4-30X40 | 30 | ER40 | 3-26 | 68 | 16.5 | 63 | 28 | 30 | 22 | 56 | 70 |
| E4-40X32 | 40 | ER32 | 3-20 | 83 | 20.5 | 50 | 32.5 | - | 22 | 49.5 | 62 |
| E4-40X40 | 40 | ER40 | 3-26 | 83 | 20.5 | 63 | 32.5 | - | 22 | 61 | 75 |
| E4-50X40 | 50 | ER40 | 3-26 | 98 | 25.5 | 63 | 35 | - | 30 | 61 | 75 |
| E4-60X40 | 60 | ER40 | 3-26 | 28.5 | 28.5 | 63 | 42.5 | - | 30 | 61 | 75 |

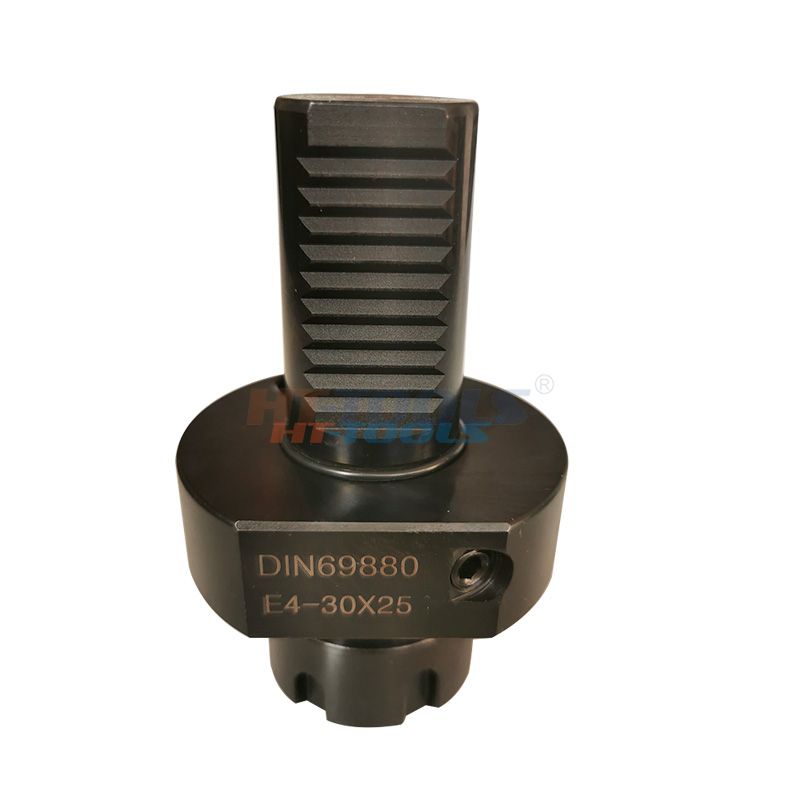

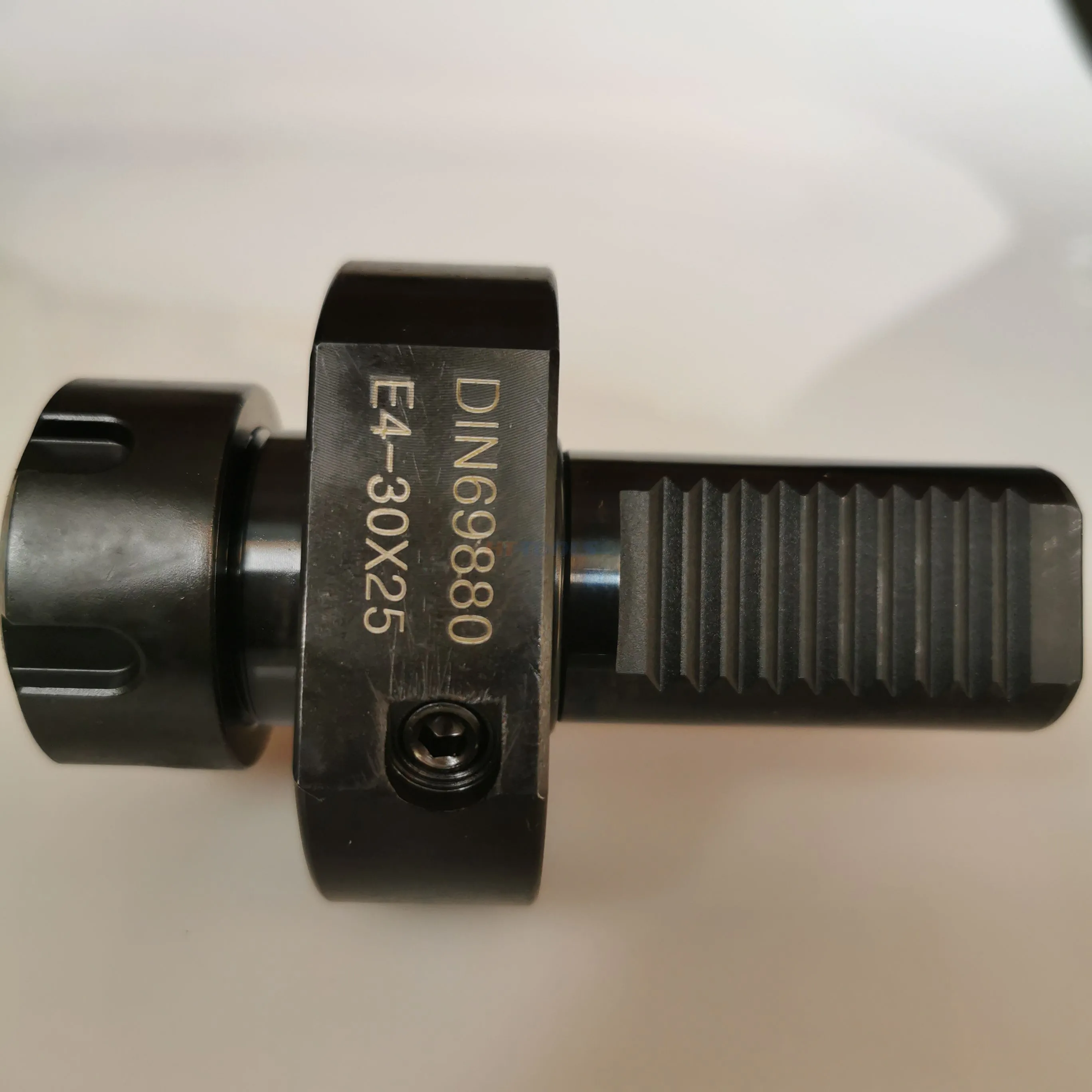

Model: DIN69880 E4 Type VDI Tool Holder
Standard: DIN 69880 (ISO10889)
Type: Static ER collet holder
VDI size: VDI20 / VDI30 / VDI40 / VDI50 optional
Compatible collet: ER25 / ER32 / ER40 (depends on model)
Material: 42CrMo alloy steel阿里巴巴中...
Hardness: HRC55‑60Made-in-Ch...
Application: CNC lathe, turn‑mill center, static turret station
Coolant: Internal coolant hole optional
Surface finish: Black oxide treatment
Package: Anti‑shock foam + carton box
