E Type Tool Holder

Next Product Inquire Now

Product Details

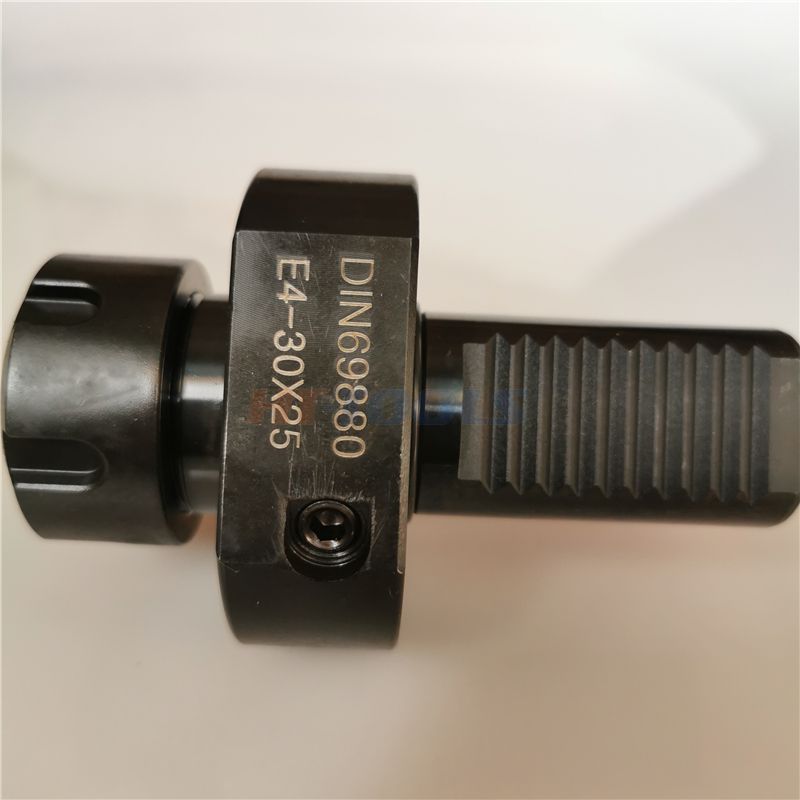

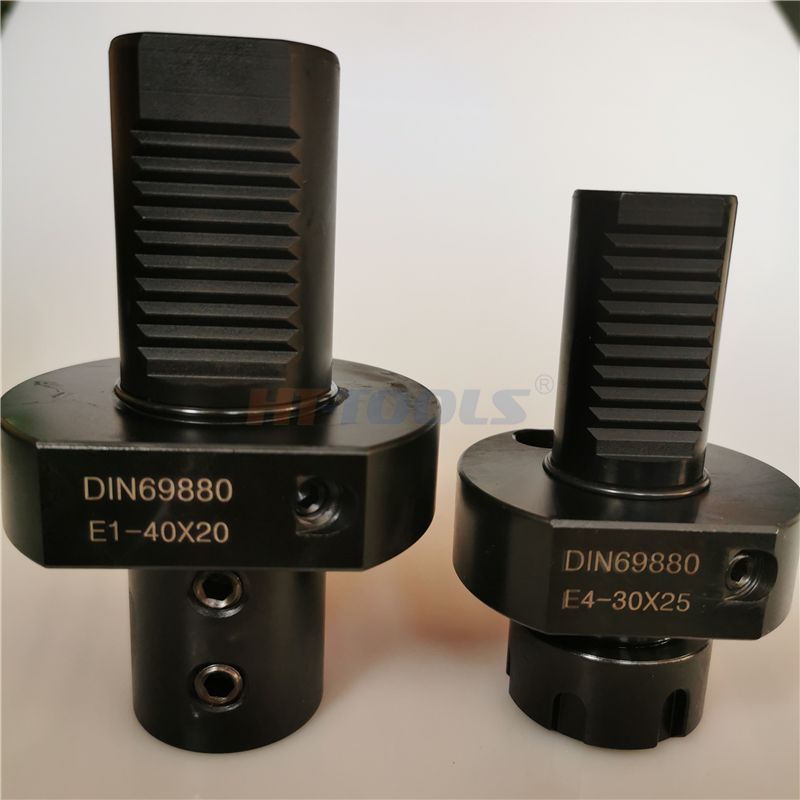

E1 Type tool holder

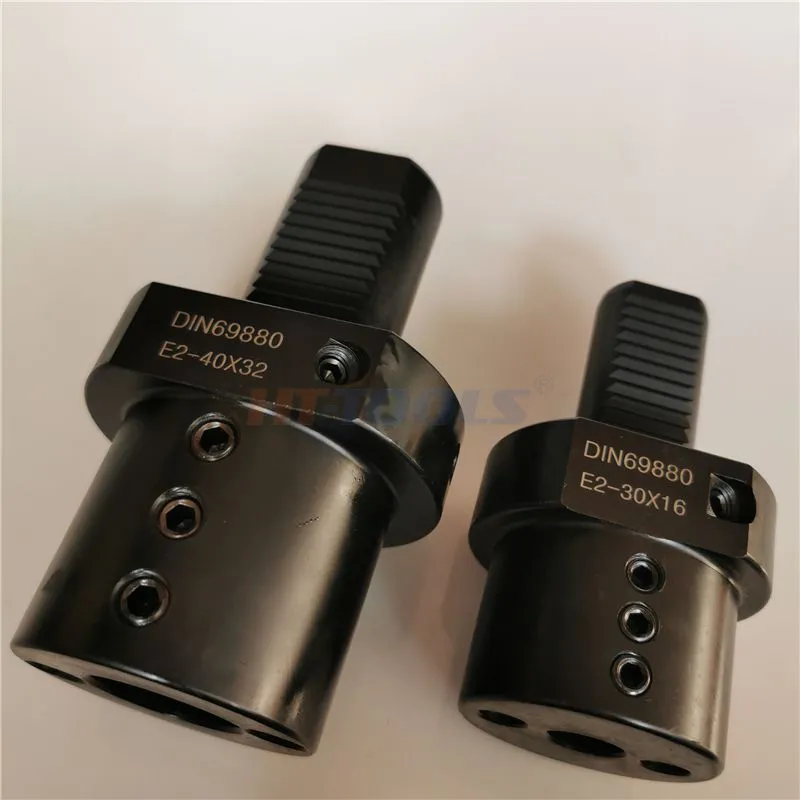

E2 Type tool holder

For boring bars with cylindrical shank

Order No	d1	d2	d3	d4	d5	h1	h2	l1	l2	l3
E2-16X6	16	6	40	32	M6	18	18	13	44	34
E2-16X8	16	8	40	32	M6	18	18	13	44	34
E2-16X10	16	10	40	32	M6	18	18	13	44	34
E2-16X12	16	12	40	40	M8	18	18	13	44	34
E2-16X16	16	16	40	40	M8	18	18	13	44	34
E2-20X8	20	8	50	40	M6	-	23	18	50	41
E2-20X10	20	10	50	40	M6	-	23	18	50	41
E2-20X12	20	12	50	40	M8	-	23	18	50	41
E2-20X16	20	16	50	40	M8	-	23	18	50	41
E2-20X20	20	20	50	50	M8	-	23	18	50	51
E2-20X25	20	25	50	50	M8	-	23	18	60	41
E2-30X6	30	6	68	55	M6	28	30	22	60	51
E2-30X8	30	8	68	55	M6	28	30	22	60	51
E2-30X10	30	10	68	55	M6	28	30	22	60	51
E2-30X12	30	12	68	55	M8	28	30	22	60	51
E2-30X16	30	16	68	55	M8	28	30	22	60	51
E2-30X20	30	20	68	55	M8	28	30	22	60	51
E2-30X25	30	25	68	55	M8	28	30	22	60	51
E2-30X32	30	32	68	68	M8	28	30	22	75	61
E2-40X6	40	6	83	55	M6	32.5	-	22	75	41
E2-40X8	40	8	83	55	M6	32.5	-	22	75	51
E2-40X8	40	8	83	55	M6	32.5	-	22	75	13
E2-40X10	40	10	83	55	M6	32.5	-	22	75	51
E2-40X12	40	12	83	55	M8	32.5	-	22	75	51
E2-40X16	40	16	83	55	M10	32.5	-	22	75	61
E2-40X20	40	20	83	55	M10	32.5	-	22	75	61
E2-40X25	40	25	83	55	M10	32.5	-	22	75	61
E2-40X32	40	32	83	83	M10	32.5	-	22	75	61
E2-40X40	40	40	98	83	M1O	32.5	-	22	90	61
E2-50X10	50	10	98	68	M6	35	-	30	90	76
E2-50X12	50	12	98	68	M8	35	-	30	90	51
E2-50X16	50	16	98	68	M10	35	-	30	90	61
E2-50X20	50	20	98	68	M12	35	-	30	90	76
E2-50X25	50	25	98	68	M12	35	-	30	90	76
E2-50X32	50	32	98	68	M12	35	-	30	90	76
E2-50X40	50	40	98	98	M12	35	-	30	90	76
E2-50X50	50	50	98	98	M12	35	-	30	100	76
E2-60X16	60	16	123	68	M10	42.5	-	30	90	86
E2-60X20	60	20	123	68	M12	42.5	-	30	90	76
E2-60X25	60	25	123	68	M12	42.5	-	30	90	76
E2-60X32	60	32	123	68	M12	42.5	-	30	90	76
E2-60X40	60	40	123	98	M12	42.5	-	30	90	76
E2-60X50	60	50	123	98	M12	42.5	-	30	100	76

E3 Type collet holder

Order No	d1	d2		d3	d4	d5	l1	l2	l3	h1	h2
Order No	d1	EOCA	EOCB	d3	d4	d5	l1	l2	l3	h1	h2
E3-16X12	16	1-12	-	40	6.7	35	13	36	45.5	18	18
E3-20X16	20	2-16	5-16	50	9	43	18	42	57	-	23
E3-20X20	20	2-20	6-20	50	9	50	18	46	62	-	23
E3-30X16	30	2-16	5-16	68	16.5	43	22	42	57	28	30
E3-30X25	30	2-25	6-25	68	16.5	60	22	59	75	28	30
E3-40X25	40	2-25	6-25	83	20.5	60	22	59	75	32.5	-
E3-40X32	40	4-32	10-32	83	20.5	72	22	73	90	32.5	-
E3-50X25	50	2-25	6-25	98	25.5	60	30	59	75	35	-
E3-50X32	50	4-32	10-32	98	25.5	72	30	73	90	35	-
E3-60X25	60	2-25	6-25	123	40.5	60	30	59	75	42.5	-
E3-60X32	60	10-32	10-32	123	40.5	72	30	73	90	42.5	-
E3-60X40	60	6-29.5	30-40	123	40.5	85	30	82	100	42.5	-

Other product:

Package :

We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack

the products according to your requirements if the order is large.

FAQ:

1 .Are you factory or Trade Company?
We are industry and trade integration.

2 .Could you supply samples?
Yes, we can.

3. Where do you export?
The whole world.

4 .Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.

5 .What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.

6. What are the shipping ways?
By international express, by air,and by sea are all ok.

7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.

8. What’s your payment way?
T/T, Pay pal, Western Union and so on.

9. What’s your delivery time?
5-20 days after order confirmed

10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.

Catalog is available for download.

https://www.httools.com/data/upload/main/20260730/6a6ab0277d331.pdf
