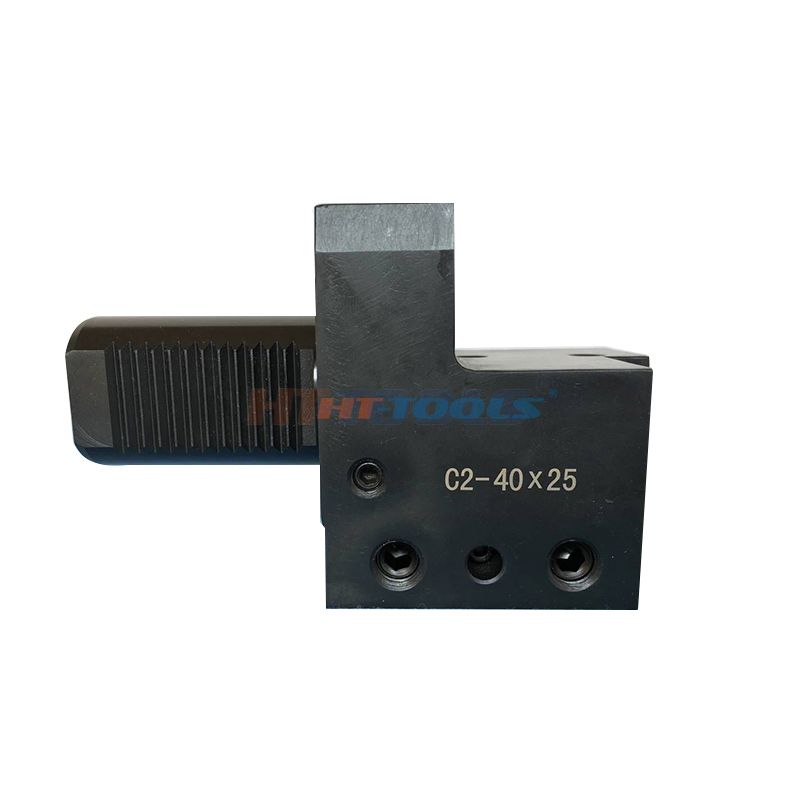

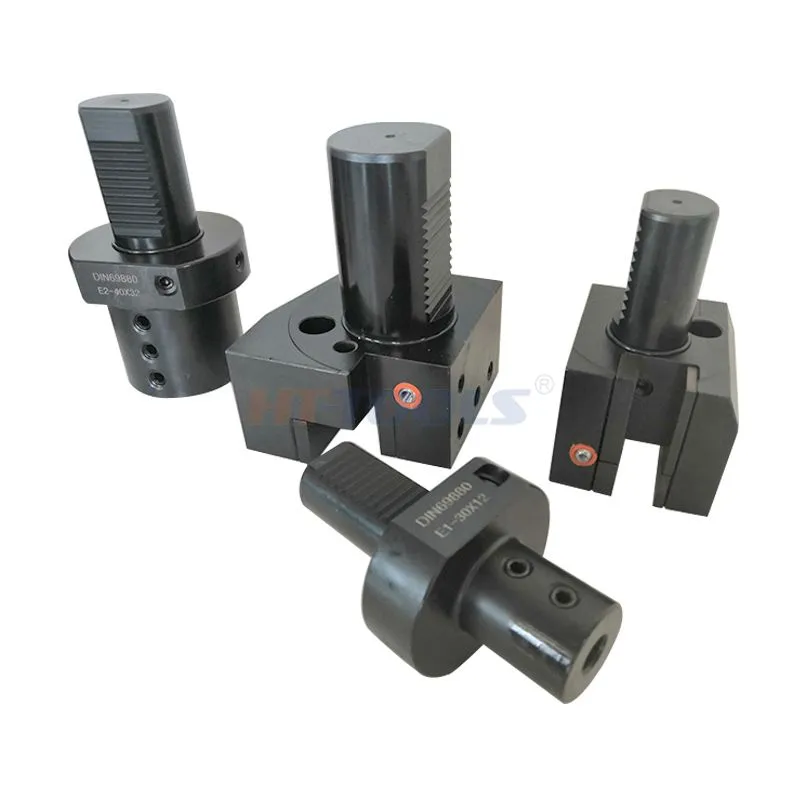

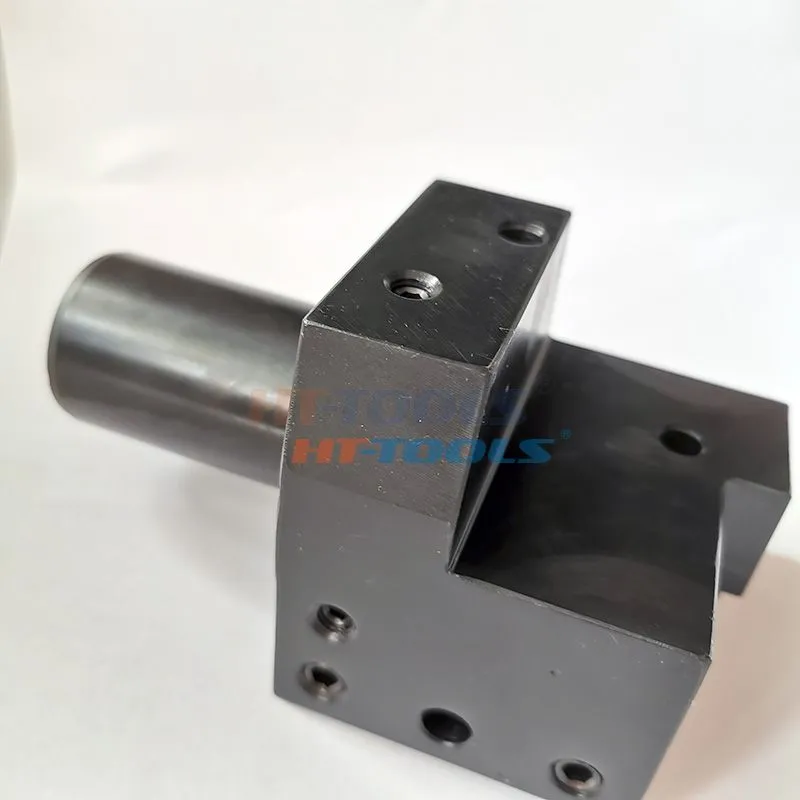

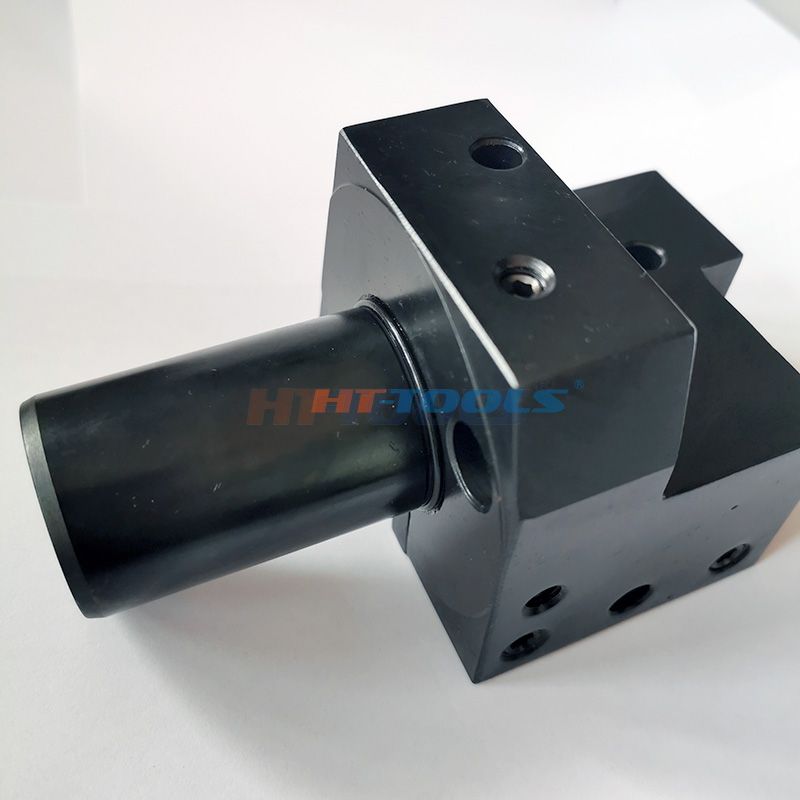

C2 Type Tool Holder

C2 Type Tool Holders are essential machine tool accessories for working center of CNC machine.

We produce according to German DIN69880 standard, it feature developed structure、convenient and alternative etc.

It can satisfy the needs of turning、drilling、boring、and milling etc.

With various tool holders and allocate different types tool and accessory.

Next Product Inquire Now

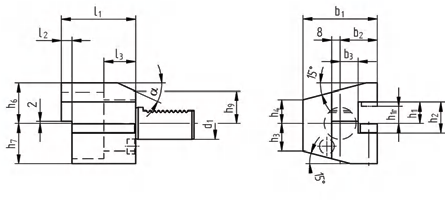

C1 Type Tool Holders with longitudinal square holding fixture,right

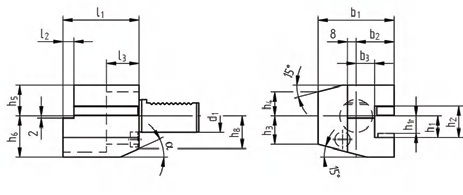

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	11	12	13
C1-20X16	20	65	40	26	16	22	19	19	25	30	23	50		30
C1-30X20	30	70	35	17	20	29	26	22	28	38	30	70	10	30
C1-40X25	40	85	42.5	21	25	34	35	30	32.5	48	一	85	12.5	30
C1-50X32	50	100	50	26	32	41	42	35	35	60	一	100	16	40
C1-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	—	125	16	40

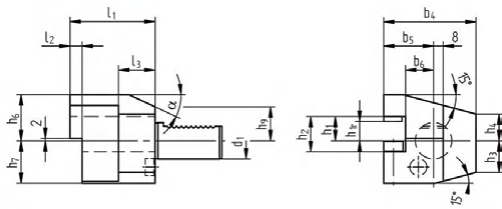

Type C2 Toolholder with longitudinal square holding fixture, left

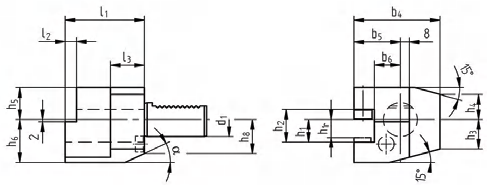

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	l1	l2	l3
C2-20X16	20	65	40	26	16	22	19	19	25	30	23	50	一	30
C2-30X20	30	76	41	23	20	29	26	22	28	38	30	70	10	30
C2-40X25	40	90	47.5	25.5	25	34	35	30	32.5	48	一	85	12.5	30
C2-50X32	50	105	55	30.5	32	41	42	35	35	60		100	16	40
C2-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	一	125	16	40

NC Tool Holder Series Type C3 Toolholder with longitudinal square holding fixture overhead right

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	I1	I2	13
C3-20X16	20	65	40	26	16	22	19	19	30	25	23	50		30
C3-30X20	30	70	35	17	20	29	26	22	38	35	28	70	10	30
C3-40X25	40	85	42.5	21	25	34	35	30	48	42.5	一	85	12.5	30
C3-50X32	50	100	50	26	32	41	42	35	60	50	一	100	16	40
C3-60X32	60	125	62.5	33	32	41	46	42.5	62.5	62.5	一	125	16	40

Type C4 Tool Holder with longitudinal square holding fixture overhead left

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	l1	I2	l3
C4-20X16	20	65	40	26	16	22	19	19	25	30	23	50		30
C4-30X20	30	76	41	23	20	29	26	22	28	38	28	70	10	30
C4-40X25	40	90	47.5	25.5	25	34	35	30	32.5	48		85	12.5	30
C4-50X32	50	105	55	30.5	32	41	42	35	35	60	一	100	16	40
C4-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	一	125	16	40

Other product:

Package :

We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack

the products according to your requirements if the order is large.

FAQ:

1 .Are you factory or Trade Company?
We are industry and trade integration.

2 .Could you supply samples?
Yes, we can.

3. Where do you export?
The whole world.

4 .Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.

5 .What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.

6. What are the shipping ways?
By international express, by air,and by sea are all ok.

7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.

8. What’s your payment way?
T/T, Pay pal, Western Union and so on.

9. What’s your delivery time?
5-20 days after order confirmed

10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
