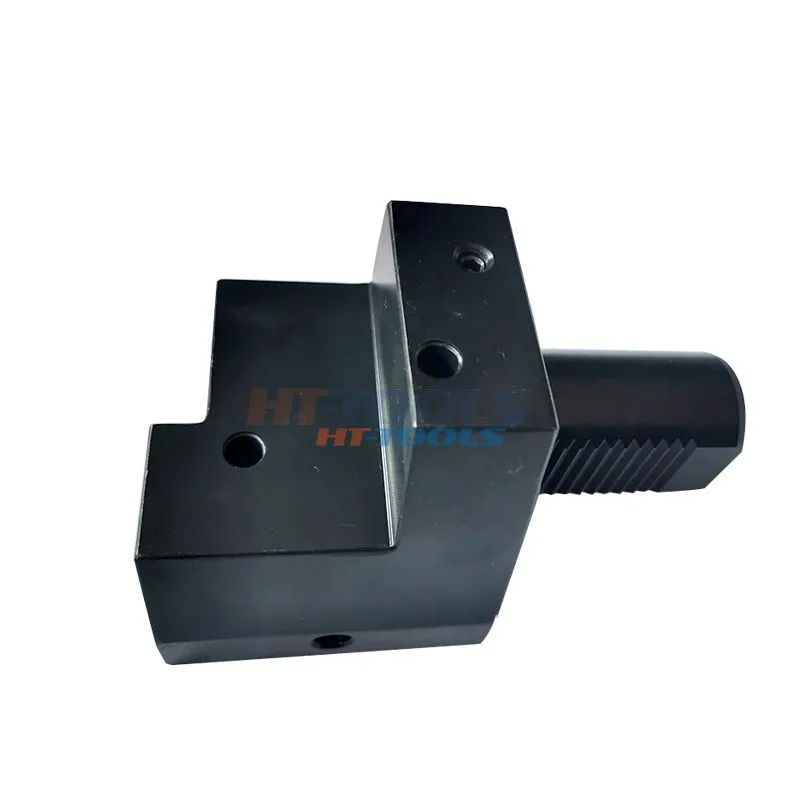

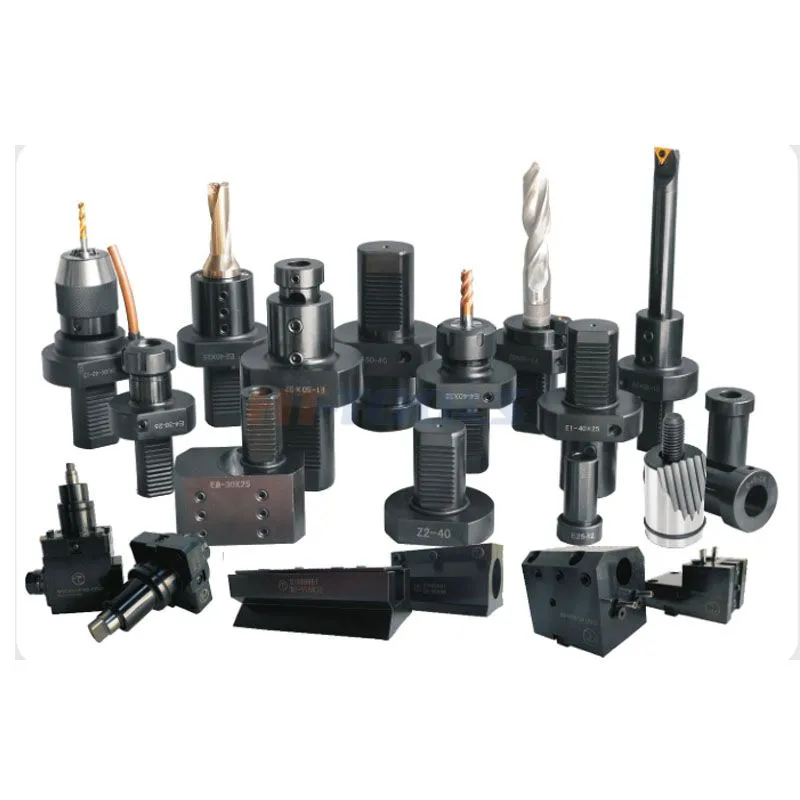

C1 Type Tool Holder

C1 Type Tool Holders are essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure、convenient and alternative etc. It can satisfy the needs of turning、drilling、boring、and milling etc. With various tool holders and allocate different types tool and accessory.

Next Product Inquire Now

Product Details

Type C1 with longitudinal square holding fixture, right

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	11	12	13

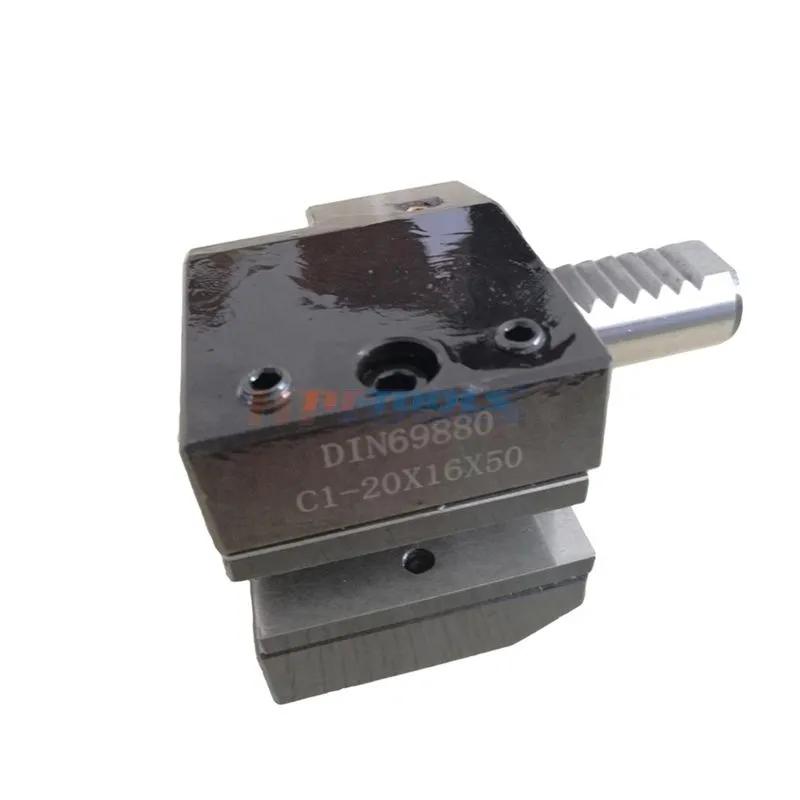

C1-20X16	20	65	40	26	16	22	19	19	25	30	23	50		30

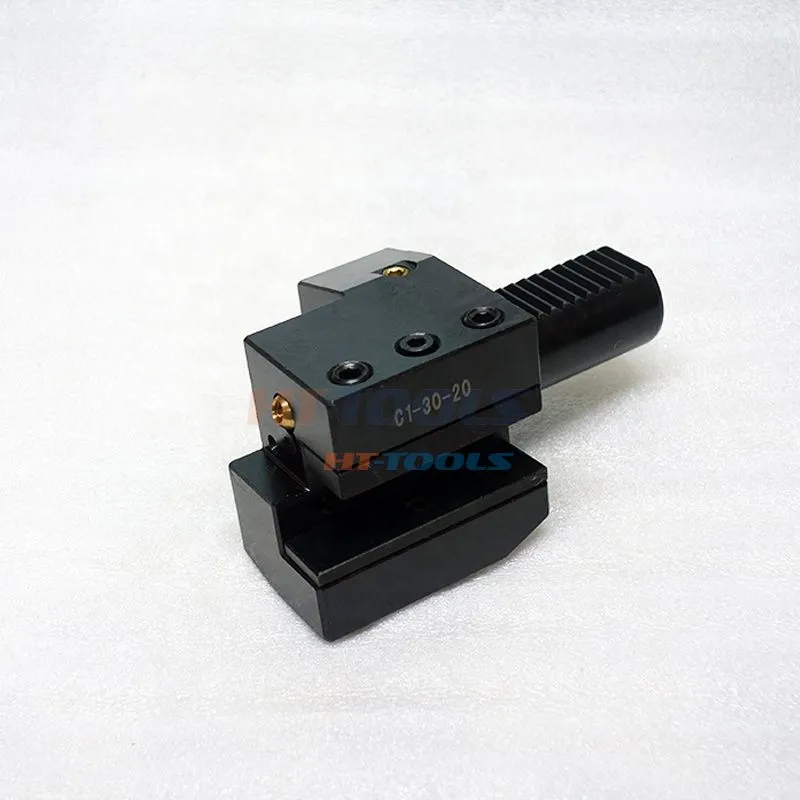

C1-30X20	30	70	35	17	20	29	26	22	28	38	30	70	10	30

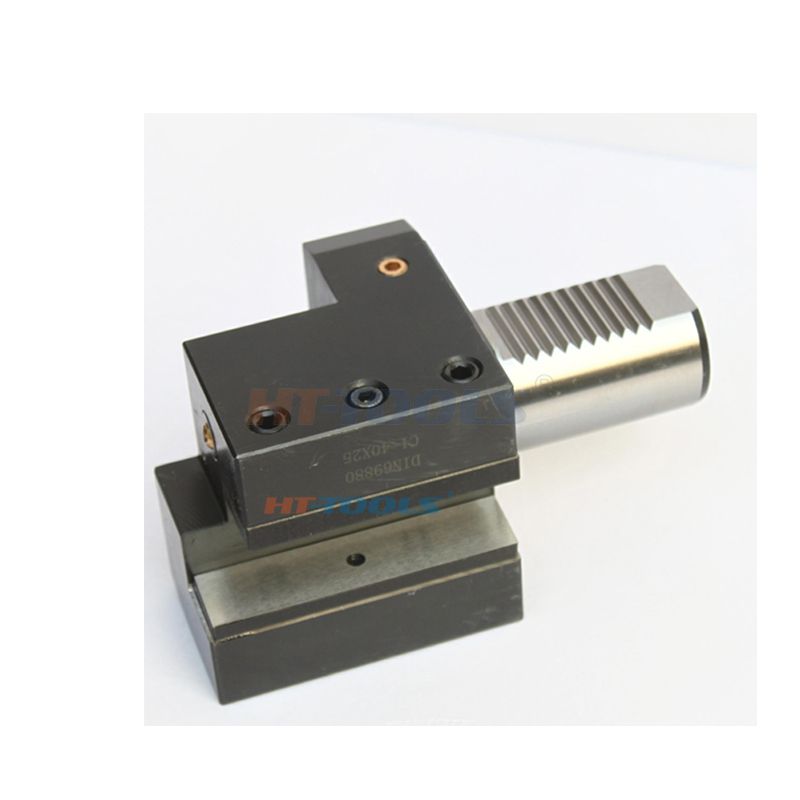

C1-40X25	40	85	42.5	21	25	34	35	30	32.5	48	一	85	12.5	30
C1-50X32	50	100	50	26	32	41	42	35	35	60	一	100	16	40
C1-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	—	125	16	40

Type C2 Toolholder with longitudinal square holding fixture, left

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	l1	l2	l3
C2-20X16	20	65	40	26	16	22	19	19	25	30	23	50	一	30
C2-30X20	30	76	41	23	20	29	26	22	28	38	30	70	10	30
C2-40X25	40	90	47.5	25.5	25	34	35	30	32.5	48	一	85	12.5	30
C2-50X32	50	105	55	30.5	32	41	42	35	35	60		100	16	40
C2-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	一	125	16	40

NC Tool Holder Series Type C3 Toolholder with longitudinal square holding fixture overhead right

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	I1	I2	13
C3-20X16	20	65	40	26	16	22	19	19	30	25	23	50		30
C3-30X20	30	70	35	17	20	29	26	22	38	35	28	70	10	30
C3-40X25	40	85	42.5	21	25	34	35	30	48	42.5	一	85	12.5	30
C3-50X32	50	100	50	26	32	41	42	35	60	50	一	100	16	40
C3-60X32	60	125	62.5	33	32	41	46	42.5	62.5	62.5	一	125	16	40

Type C4 Tool Holder with longitudinal square holding fixture overhead left

Order No	d1	b1	b2	b3	h1	h2	h3	h4	h5	h6	h7	l1	I2	l3
C4-20X16	20	65	40	26	16	22	19	19	25	30	23	50		30
C4-30X20	30	76	41	23	20	29	26	22	28	38	28	70	10	30
C4-40X25	40	90	47.5	25.5	25	34	35	30	32.5	48		85	12.5	30
C4-50X32	50	105	55	30.5	32	41	42	35	35	60	一	100	16	40
C4-60X32	60	125	62.5	33	32	41	46	42.5	42.5	62.5	一	125	16	40

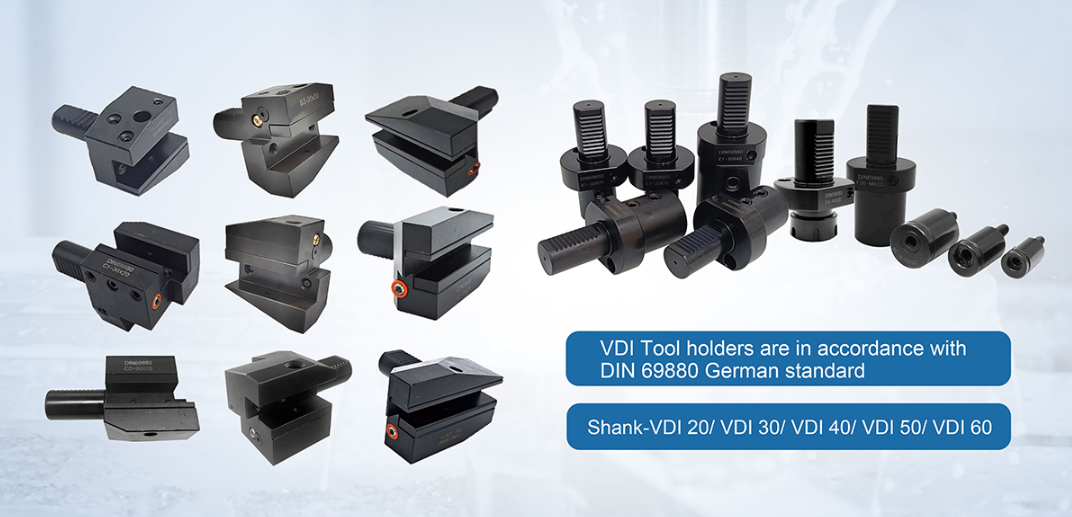

DIN69880 C1 VDI static axial tool holder, alloy steel heat-treated, ultra-high rigidity, low runout, fits VDI turret CNC lathe for square shank turning tools.

Advantages

Standard DIN69880 C1 specification, full interchangeability
HRC58-62 hardened body, anti-deformation & long service life
Stable clamping, minimal vibration, fine surface finish
Optional through coolant, efficient heat removal
VDI20/30/40/50/60 complete sizes in stock

Applications

CNC lathe, turning-milling composite machine, VDI turret; external turning, facing, grooving, metal hardware machining.
