Product Details

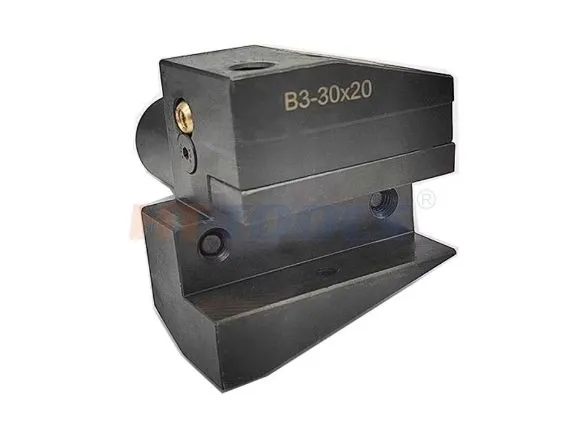

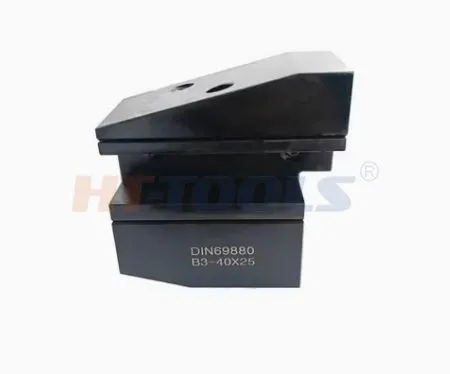

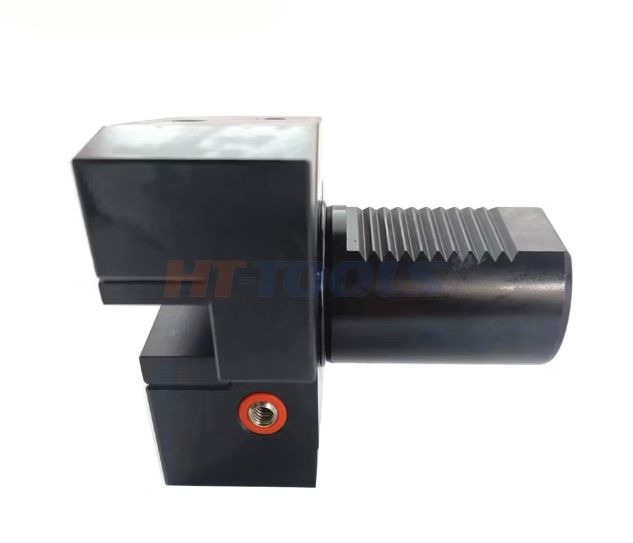

B3 Type Tool Holder With square crossholding fixture overhead right, short

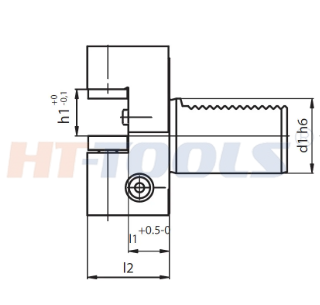

| Order No. | d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h7 | l1 | l2 |
| B3-16×12×24 | 16 | 42 | 23 | 5 | 12 | 17 | 15 | 15 | 20 | 22 | 19 | 13 | 24 |
| B3-20×16×30 | 20 | 55 | 30 | 7 | 16 | 22 | 19 | 19 | 25 | 30 | 23 | 16 | 30 |
| B3-30×20×40 | 30 | 70 | 35 | 10 | 20 | 29 | 26 | 22 | 28 | 38 | 30 | 22 | 40 |
| B3-40×25×44 | 40 | 85 | 42.5 | 12.5 | 25 | 34 | 35 | 30 | 32.5 | 48 | － | 22 | 44 |
| B3-50×32×55 | 50 | 100 | 50 | 16 | 32 | 41 | 42 | 35 | 35 | 60 | － | 30 | 55 |
| B3-60×32×60 | 60 | 125 | 62.5 | 16 | 32 | 41 | 46 | 42.5 | 42.5 | 62.5 | － | 30 | 60 |
Standard DIN69880 B3 specification, full interchangeability
HRC58-62 hardened body, anti-deformation & long service life
Stable clamping, minimal vibration, fine surface finish
Optional through coolant, efficient heat removal
FAQ
Q: Which standard applies to VDI B type tool holders?
A: German DIN69880 standard, for CNC lathe VDI turrets.
Q: What models can you supply?

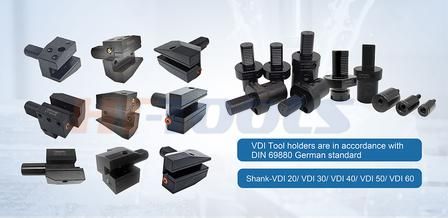

A: B1 Radial Right, B2 Radial Left, B3 Overhead Right, B4 Overhead Left. Sizes: VDI16/20/25/30/40/50/60.
Q: What key dimensions do you have?
A: Shank diameter, square tool size, height & length parameters. Dimension drawings available for each model.
Q: What is the accuracy?
A: Positioning tolerance ≤0.005mm, repeat positioning accuracy ≤0.003mm. Runout controlled per DIN69880.
Q: What is the raw material?
A: 40Cr alloy steel, quenched & tempered with local hardening.
Q: Which machines can it fit? What parts can be machined?

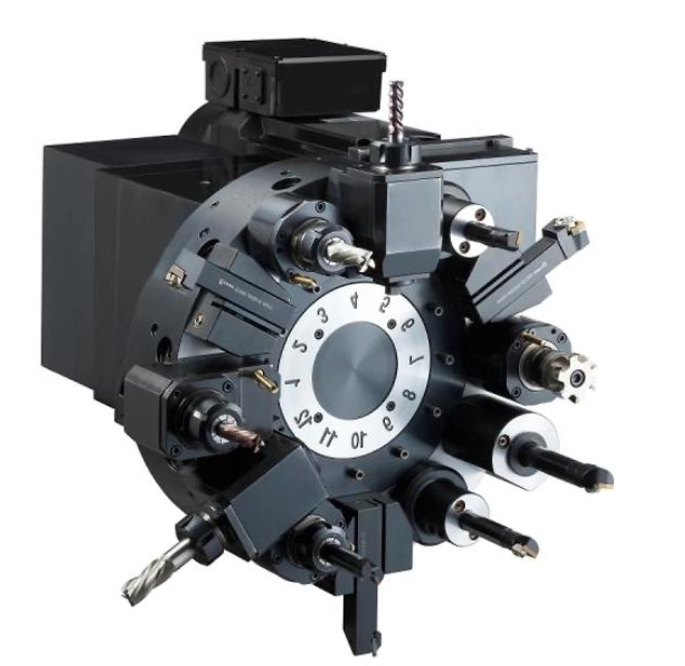

A: Fits CNC lathes with VDI turrets. For shaft & disc metal parts: OD turning, facing, grooving, chamfering.
Q: Can you do OEM & custom work?
A: Yes. Laser logo engraving and non-standard customized tool holders are available.
Q: What is your monthly output?
A: 3,000–5,000 pcs monthly for VDI series.
Q: What about warranty?
A: Replacement available within 6 months under normal use.
Q: How to request a quote?
A: Send us model, quantity, lathe brand and turret specs for quotation.
Q: How about quality inspection?
A: Heat treatment + precision grinding. 100% dimension & runout check before shipment. Inspection reports can be offered.
