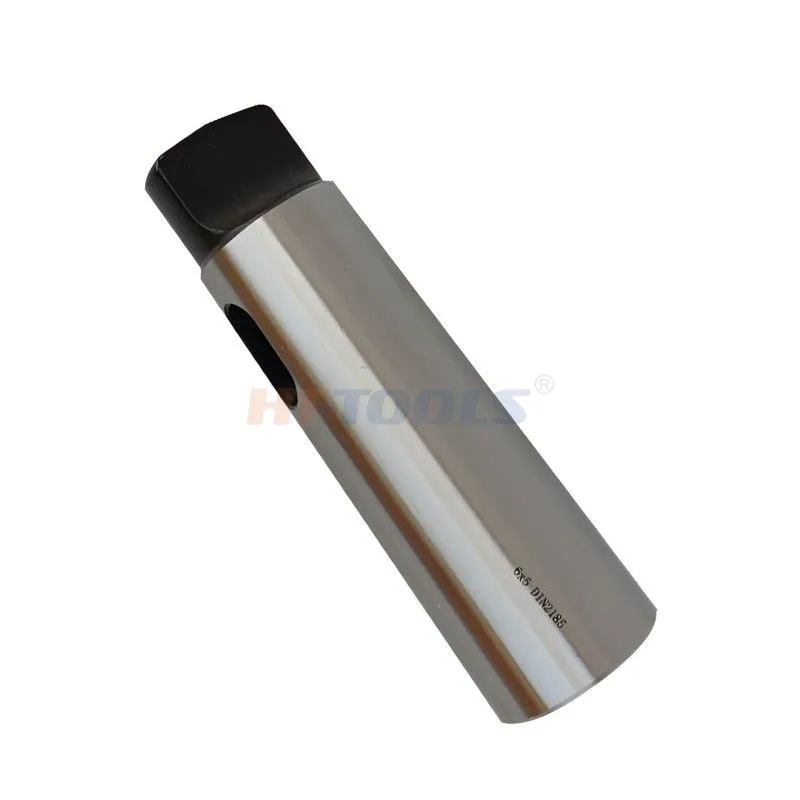

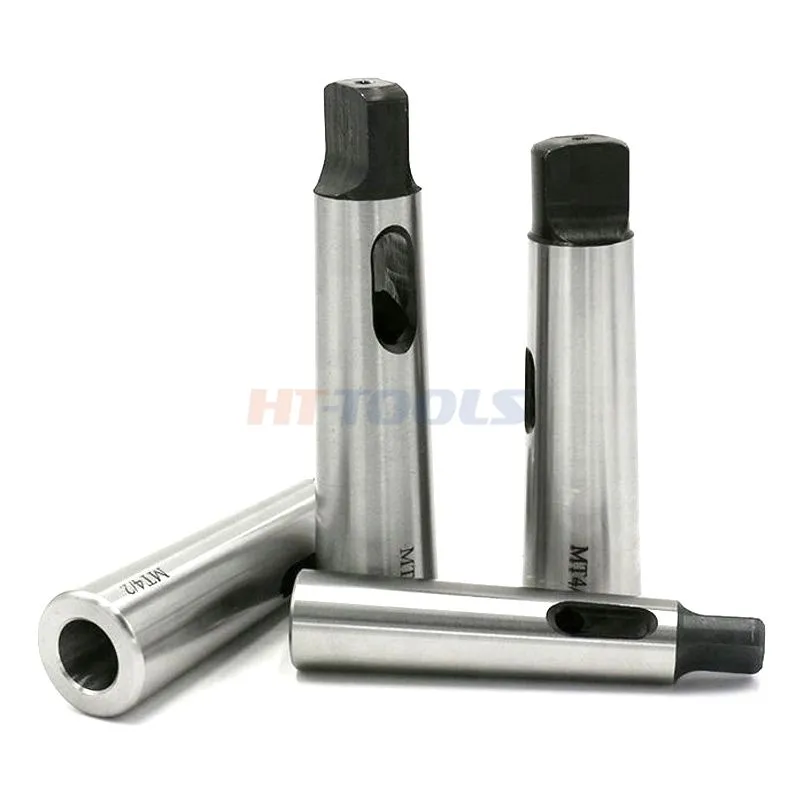

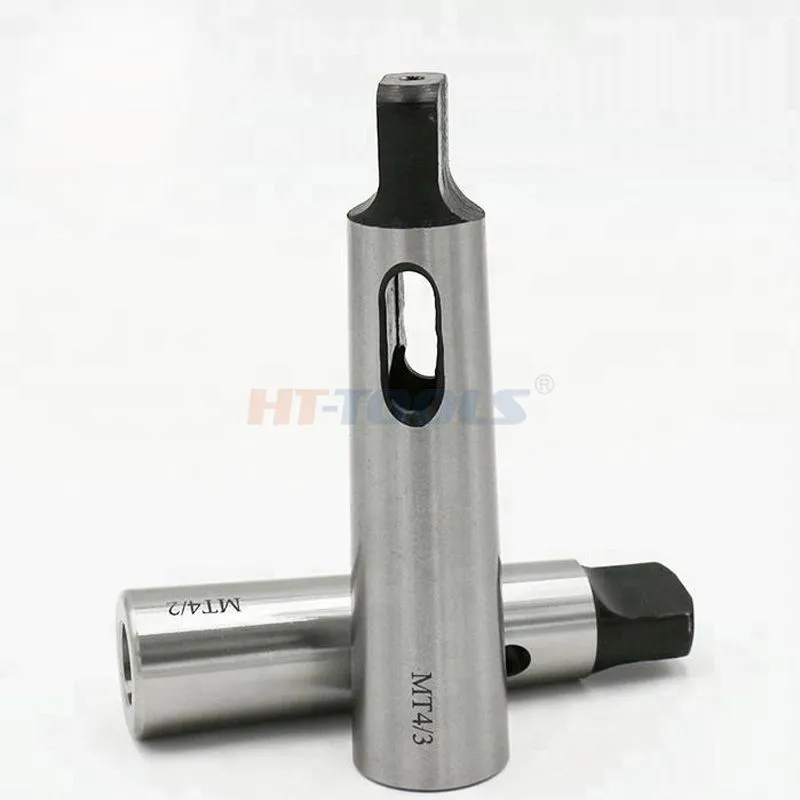

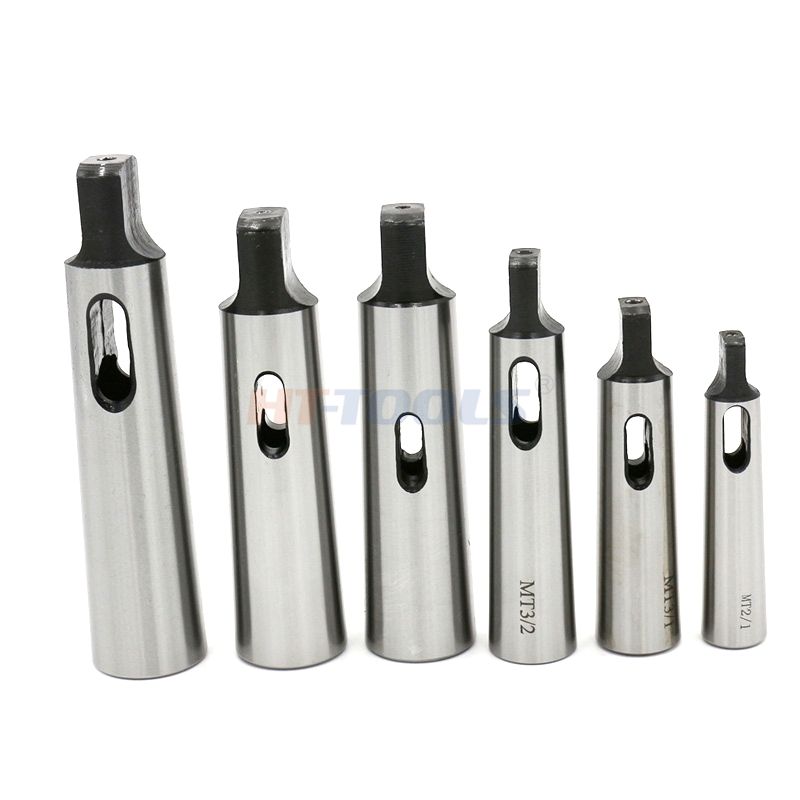

The DIN 2185 Reduction Sleeve is designed to adapt different Morse taper sizes between machine spindles and tools. Made from high-quality alloy steel with precision grinding, it provides high accuracy and wear resistance for drilling, reaming, and boring applications.

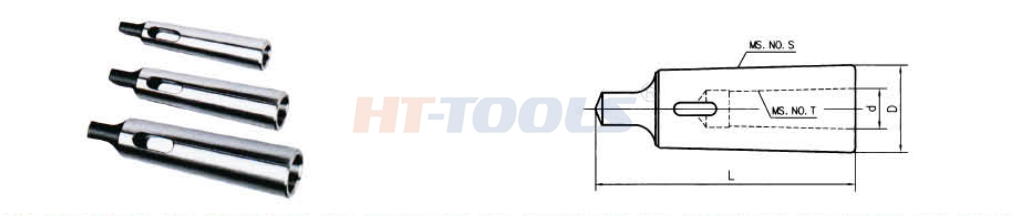

| Order No | MS.NO.S | MS.NO.T | D(mm) | d(mm) | L(mm) | WT(kg) | Accuracy(mm) |
| B1-0 | 1 | 0 | 13 | 9.045 | 80 | 0.10 | 0.015 |
| B2-1 | 2 | 1 | 18.6 | 12.065 | 92 | 0.10 | |
| B3-1 | 3 | 24.1 | 99 | 0.24 | |||
| B3-2 | 2 | 24.7 | 17.780 | 112 | 0.12 | ||
| B4-1 | 4 | 1 | 31.6 | 12.065 | 124 | 0.60 | |
| B4-2 | 2 | 17.780 | 0.50 | ||||
| B4-3 | 3 | 32.4 | 23.825 | 1450 | 0.38 | ||
| B5-1 | 5 | 1 | 44.7 | 12.065 | 156 | 1.59 | 0.02 |
| B5-2 | 2 | 17.780 | 1.49 | ||||
| B5-3 | 3 | 23.825 | 1.36 | ||||
| B5-4 | 4 | 45.5 | 31.267 | 171 | 0.95 | ||
| B6-1 | 6 | 1 | 63.8 | 12.065 | 218 | 3.84 | |
| B6-2 | 2 | 17.780 | 3.73 | ||||
| B6-3 | 3 | 23.825 | 3.85 | ||||
| B6-4 | 4 | 31.267 | 3.12 | ||||
| B6-5 | 5 | 44.399 | 1.95 |
