Material: 20CrMnTi
Precision: 0.005
Color: Silver

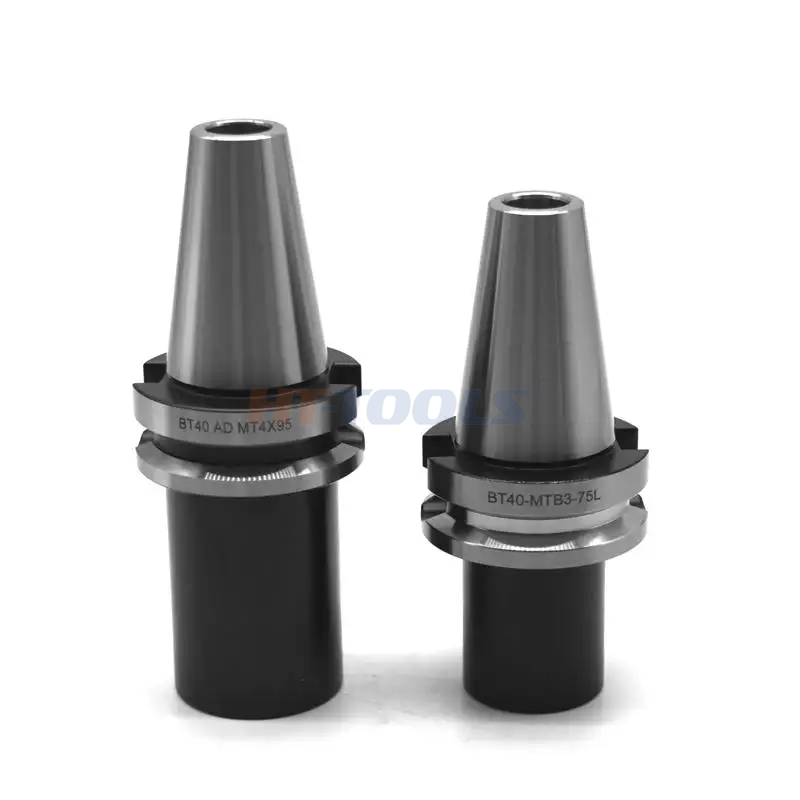

Model: BBT/BT30 BBT/BT40 BBT/BT50-MTB1/2/3/4/5
Product Details
● It is used for clamping the Morse taper at the end cutting internal threads or extension rod.
● BTMP taper shank executives AT3 standard.
● No more than 0.005mm for the cone concentricity.

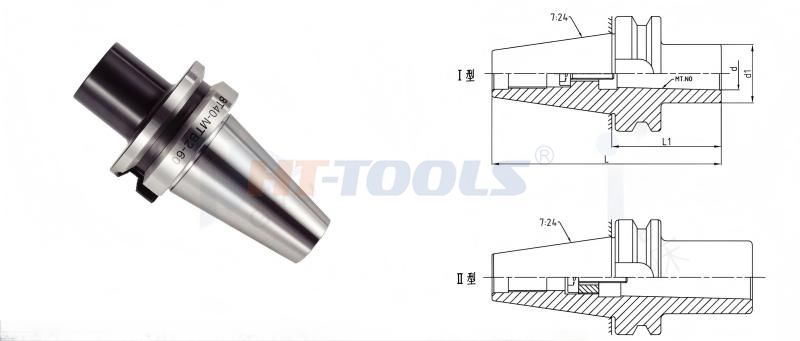

| 规格Model | L(mm) | d1(mm) | d2(mm) | 型式Type |
| BBT/BT40-MTB1-45 | 45 | 25 | 12.065 | I型 |
| BBT/BT40-MTB1-60 | 60 | 25 | 12.065 | I型 |
| BBT/BT40-MTB1-100 | 100 | 25 | 12.065 | 1型 |
| BBT/BT40-MTB2-60 | 60 | 32 | 17.780 | I型 |
| BBT/BT40-MTB2-75 | 75 | 32 | 17.780 | I型 |
| BBT/BT40-MTB2-100 | 100 | 32 | 17.780 | I型 |
| BBT/BT40-MTB3-72 | 72 | 40 | 12.825 | II型 |
| BBT/BT40-MTB3-100 | 100 | 40 | 12.065 | II型 |
| BBT/BT40-MTB3-135 | 135 | 40 | 12.065 | II型 |
| BBT/BT40-MTB4-90 | 90 | 48 | 31.267 | II型 |
| BBT/BT40-MTB4-100 | 100 | 48 | 31.267 | II型 |
| BBT/BT40-MTB4-165 | 165 | 48 | 31.267 | II型 |
| BBT/BT50-MTB1-45 | 45 | 25 | 12.065 | I型 |
| BBT/BT50-MTB1-60 | 60 | 25 | 12.065 | I型 |
| BBT/BT50-MTB2-45 | 45 | 32 | 17.780 | 1型 |
| BBT/BT50-MTB2-60 | 60 | 32 | 17.780 | I型 |
| BBT/BT50-MTB2-150 | 150 | 32 | 17.780 | I型 |
| BBT/BT50-MTB3-60 | 60 | 40 | 23.825 | I型 |
| BBT/BT50-MTB3-100 | 100 | 40 | 23.825 | I型 |
| BBT/BT50-MTB3-200 | 200 | 40 | 23.825 | 1型 |
| BBT/BT50-MTB4-82 | 82 | 48 | 31.267 | IⅡ型 |
| BBT/BT50-MTB4-100 | 100 | 48 | 31.267 | II型 |
| BBT/BT50-MTB4-180 | 180 | 48 | 31.267 | II型 |
| BBT/BT50-MTB5-115 | 120 | 63 | 44.399 | II型 |
