Place of Origin: Shandong, China (Mainland)
Brand Name: HT-Tools ( HaoTian Machinery Co.,Ltd)
Type: FMA, FMB
Material: 40Cr, 20CrMnTi
Accuracy: 0.003mm
Package: Plastic Box,carton
Product Details

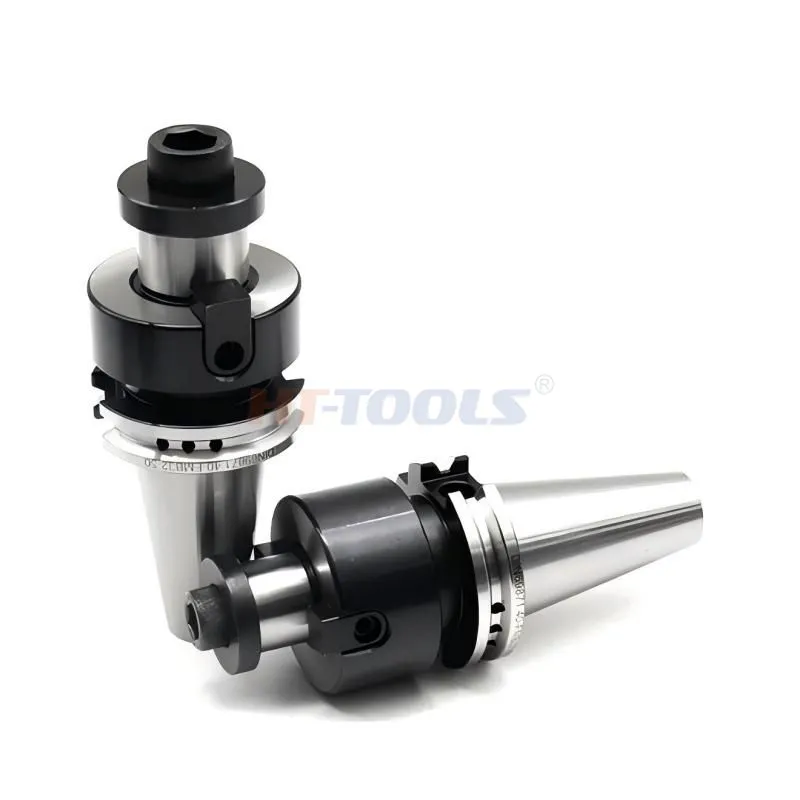

BT FMA Face Mill Arbor Features
1、High rigidity for heavy-duty milling.
2、High torque transmission with secure, slip-free clamping.
3、Accurate positioning for stable and precise machining.
4、Excellent vibration resistance for better surface finish and longer tool life.

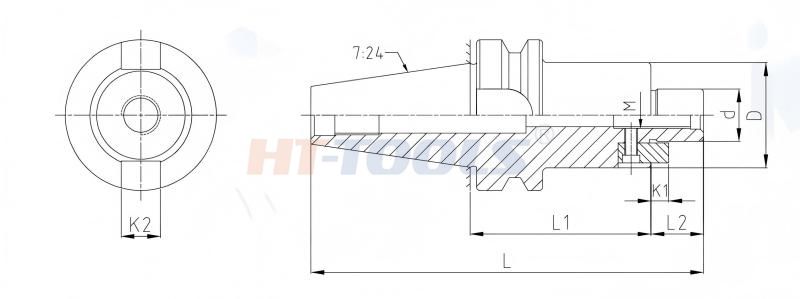

| 型号Model | L(mm) | L1(mm) | L2(mm) | D(mm) | d(mm) | K1(mm) | K2(mm) | M(mm) |
| (BBT)BT30-FMA1/2”-55 | 117.7 | 55 | 14.3 | 35 | 12.7 | 4.5 | 6.35 | 1/4”-18 |
| (BBT)BT30-FMA3/4”-1~3/4 | 110.3 | 1~3/4” | 17.45 | 44.45 | 19.05 | 4.8 | 7.94 | 3/8”-24 |
| (BBT)BT30-FMA3/4”-55 | 120.85 | 55 | ||||||
| (BBT)BT30-FMA1”-55 | 120.85 | 55 | 57 | 25.4 | 5.5 | 9.53 | 1/2”-20 | |
| (BBT)BT30-FMA1”-2~1/2” | 129.35 | 2~1/2” | ||||||
| (BBT)BT40-FMA5/8”-100 | 179.7 | 100 | 14.3 | 31.75 | 15.875 | 4.5 | 7.14 | 3/8”-24 |
| (BBT)BT40-FMA3/4”-60 | 142.85 | 60 | 17.45 | 44.45 | 19.05 | 4.8 | 7.94 | 3/8”-24 |
| (BBT)BT40-FMA3/4”-100 | 182.85 | 100 | ||||||
| (BBT)BT40-FMA1”-45 | 127.85 | 45 | 57 | 25.4 | 5.5 | 9.53 | 1/2”-20 | |
| (BBT)BT40-FMA1”-60 | 142.85 | 60 | ||||||
| (BBT)BT40-FMA1”-90 | 172.85 | 90 | ||||||
| (BBT)BT40-FMA1~1/4”-45 | 127.85 | 45 | 17.45 | 63 | 31.75 | 7 | 12.7 | 5/8”-18 |
| (BBT)BT40-FMA1~1/4”-75 | 157.85 | 75 | ||||||
| (BBT)BT40-FMA1~1/4”-90 | 172.85 | 90 | ||||||
| (BBT)BT40-FMA1~1/2”-60 | 149.2 | 60 | 23.8 | 80 | 38.1 | 8 | 15.88 | 3/4”-16 |
| (BBT)BT40-FMA1~1/2”-75 | 164.2 | 75 | ||||||
| (BBT)BT40-FMA1~1/2”-90 | 179.2 | 90 | ||||||
| (BBT)BT50-FMA1”-90 | 209.25 | 90 | 17.45 | 57 | 25.4 | 5.5 | 9.53 | 1/2”-20 |
| (BBT)BT50-FMA1”-150 | 269.25 | 150 | ||||||
| (BBT)BT50-FMA1~1/4”-75 | 194.25 | 75 | 63 | 31.75 | 7 | 12.7 | 5/8”-18 | |
| (BBT)BT50-FMA1~1/4”-105 | 224.25 | 105 | ||||||
| (BBT)BT50-FMA1~1/2”-75 | 200.6 | 75 | 23.8 | 80 | 38.1 | 8 | 15.88 | 3/4”-16 |
| (BBT)BT50-FMA2”-75 | 212.8 | 75 | 36 | 98 | 50.8 | 9.7 | 19.05 | 1”-12 |
Other product:
Package :
We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack
the products according to your requirements if the order is large.
FAQ:
1 .Are you factory or Trade Company?
We are industry and trade integration.
2 .Could you supply samples?
Yes, we can.
3. Where do you export?
The whole world.
4 .Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.
5 .What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.
6. What are the shipping ways?
By international express, by air,and by sea are all ok.
7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
8. What’s your payment way?
T/T, Pay pal, Western Union and so on.
9. What’s your delivery time?
5-20 days after order confirmed
10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
